Ultrasonic M30 Tire/Vehicle Position Sensor KIT w/ Teach Button Cord

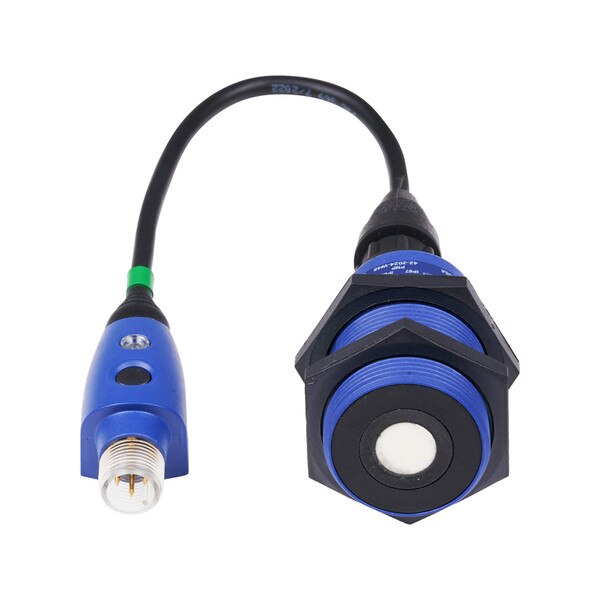

This comprehensive kit (CCS-XXS30P1PM12-K) features a robust ultrasonic cylindrical M30 sensor designed to reliably detect the presence of an incoming vehicle as it loads onto the conveyor belt. This crucial signal prompts the Entrance Module screen to update and initiates the voice commander sequence. The sensor offers a 1-meter nominal sensing distance and a programmable PNP discrete output (normally open or normally closed). It operates on a 12-24 VDC supply voltage and connects via a 5-pin M12 male connector. The sensor's durable plastic body utilizes a diffuse detection system. This kit also includes a dedicated teach button cord, equipped with an M12 3-pin male connector on one end and a 5-pin female connector on the other, providing convenient access to the sensor's teach mode for simplified configuration and calibration.
- Sensor Type: Ultrasonic Cylindrical
- Output Type: PNP Discrete (NO/NC Programmable)
- Sensor Size: M30

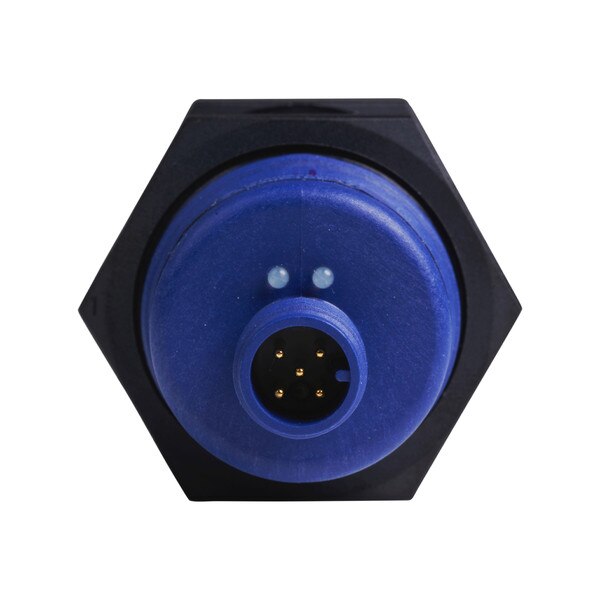

- Sensor Connection End: M12 5-Pin Male
- Teach Cord Other End: M12 3-Pin Male
- Teach Cord Sensor End 2: 5-Pin Female
- Sensor Discrete Output: 1 NO or 1 NC Programmable
- Supply Voltage: 12-24 VDC
- Sensing Range: 1m
- Operating Temp. Range: -13F-158F
- Sensor Body Material: PBT Plastic
- Precise Vehicle Detection: Ensures reliable ultrasonic detection of an incoming vehicle as it loads onto the conveyor belt, providing accurate signaling for the wash process.
- Diffuse Detection System: Utilizes a diffuse sensing method, detecting the presence of the vehicle directly without the need for a separate reflector.
- Optimal 1-Meter Sensing Range: Designed with a 1-meter nominal sensing distance, ideal for consistent and timely vehicle detection at the entrance
- Integrated Reverse Polarity Protection: Built-in reverse polarity protection safeguards the sensor against damage from incorrect wiring during installation.
- Robust Environmental Protection (IP65/IP67): Features an IP65 and IP67 rating, providing excellent resistance to dust and water ingress, ensuring reliable operation in the harsh car wash environment.
- Safety and Compliance Certified (CE & UL): Carries both CE and UL certifications, meeting recognized safety and compliance standards for reliable and safe operation.
- Complete Kit Includes:
- (1) High-Performance Ultrasonic Cylindrical M30 Sensor
- (1) Dedicated M12 Tech Button Cord - Provides convenient and direct access to the sensor's teach mode for simplified configuration and calibration
18 Month Warranty
