Tommy Heated Dryer (DH-90 Unit)

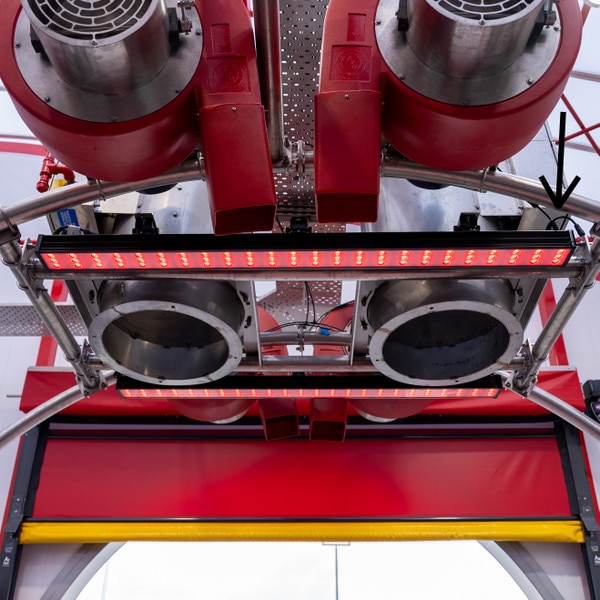

The Tommy Heated Dryer (DH-90 Door Heater Dryer Unit) is a high-performance system designed to maximize vehicle drying efficiency and maintain optimal temperatures in the drying room. Typically installed as a pair at the exit of the wash tunnel, these units blow high-speed, heated air over the top and sides of the vehicle.
This dryer unit provides a massive 900,000 BTU/HR heating capacity and an Airflow Capacity of 6,200 CFM, ensuring exceptional drying power. Its innovative design helps maintain constant levels of water vapor in the air, preventing dry outdoor air from compromising drying ability. The unit's efficiency is vital in blocking cold air from overhead doors, providing exceptional value and temperature control for your wash site.
Configuration Required:
Due to its robust industrial design, this dryer is customizable to your site's specific utilities. The following options are available:
- Fuel Type: Natural Gas or Propane
- Country: USA (UL-Listed) or Canada
- Voltage: 480 VAC or 575 VAC
Built for Durability:
The housing is constructed from durable stainless steel to resist rust and corrosion. The electrical and gas controls are protected within weatherproof enclosures, featuring a NEMA 4X Electrical Cabinet rating and a NEMA 1 Gas Cabinet rating.
Important Note:
This listing is for a single heated dryer unit only. Frame, U-bolts, and all mounting hardware are NOT included and must be purchased separately.
For a complete, all-in-one setup, consider one of our pre-configured Heated Dryer Kits. Each kit includes the following standard components: the Heated Dryer Unit (this item), Frame, Mounting Hardware (U-Bolts), a Heated Dryer Fuse, a Circuit Breaker, and an LED RGB Light Bar.
Available Kit Options:
- USA - Natural Gas Kit: Configured for Natural Gas and the USA market. (E-HD-2020-US-NG-K)
- Canada - Natural Gas Kit: Configured for Natural Gas and the Canadian market. (E-HD-2020-CA-NG-K)
- USA - Propane Kit: Configured for Propane and the USA market. (E-HD-2020-US-PRO-K)
- Model: DH-90 Door Heater Dryer Unit
- Airflow Capacity: 6,200 CFM
- Heating Capacity: 900,000 BTU/HR
- Temperature Rise (Winter Mode): 130°F
- Motor Power: 3.0 HP
- Motor Speed: 1,750 RPM
- Voltage Options: 480 VAC or 575 VAC
- Current Rating (480V): 10 A
- Number of Phases: 3-Phase
- Frequency: 60 Hz
- Fuel Type Options: Natural Gas or Propane
- Country Type Options: USA or Canada
- Housing Material: Stainless Steel
- Dimensions: 67-1/2" X 34-1/2" X 27"
- Minimum Inlet Spacing: 24"
- Fan Type: Direct Drive Axial Fan with Inlet Guard
- Ignition: Automatic Electronic Spark Ignition with Flame Rod Burner Supervision
- Electrical Cabinet Rating: NEMA 4X (Weatherproof)
- Gas Cabinet Rating: NEMA 1 (Weatherproof)
- Standards: Meets UL-508A Standards
- Controls: Self-Resetting Gas Controls, Easy to Read Diagnostic Lights
- Modes: Selectable Switch Between Summer and Winter Modes
- High-Capacity Drying: Delivers 900,000 BTU/HR and 6,200 CFM for superior vehicle drying performance.
- Durable Construction: Stainless steel housing provides maximum resistance to rust and corrosion.
- Weatherproof Enclosures: NEMA 4X Electrical and NEMA 1 Gas cabinets protect sensitive components.
- Efficiency: Designed to block cold air from overhead doors, maintaining high air temperature and drying effectiveness.
- User Control: Features a selectable switch for Summer and Winter operation modes.
- Safety & Diagnostics: Includes Automatic Electronic Spark Ignition, Flame Rod Supervision, and easy-to-read diagnostic lights.
