Tommy Vacuum Nozzle Holster 3.0

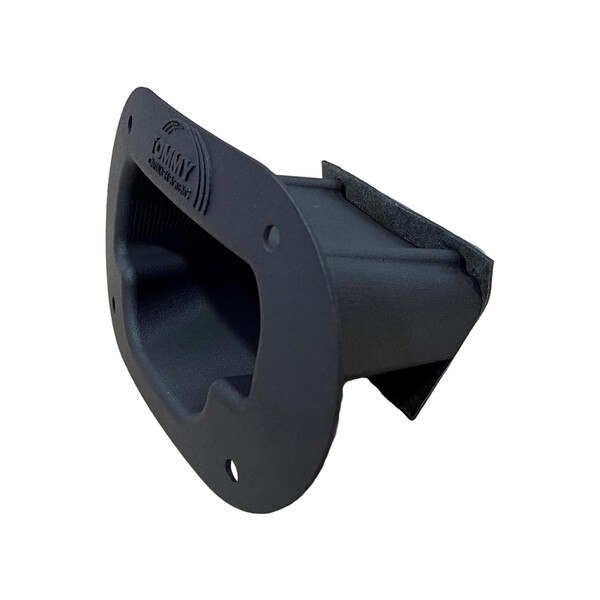

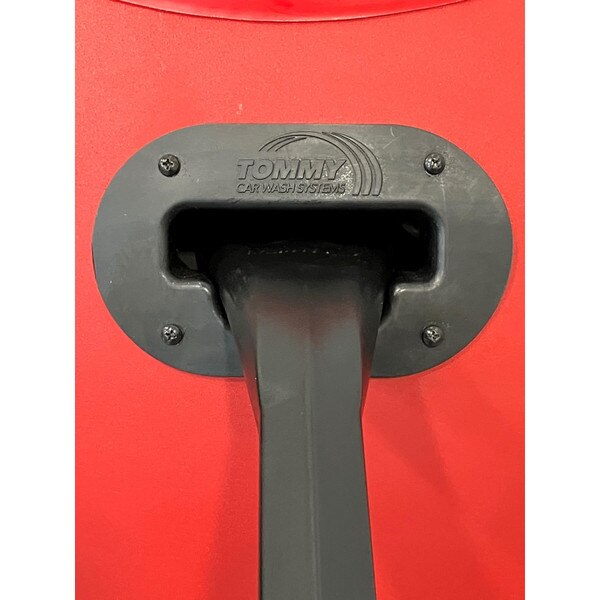

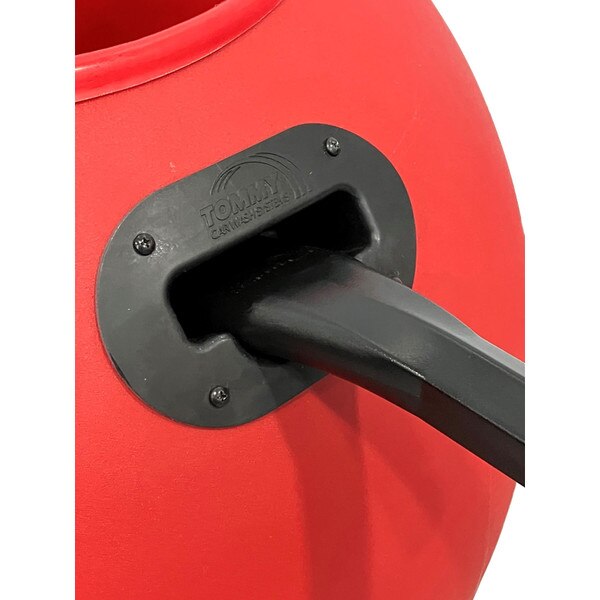

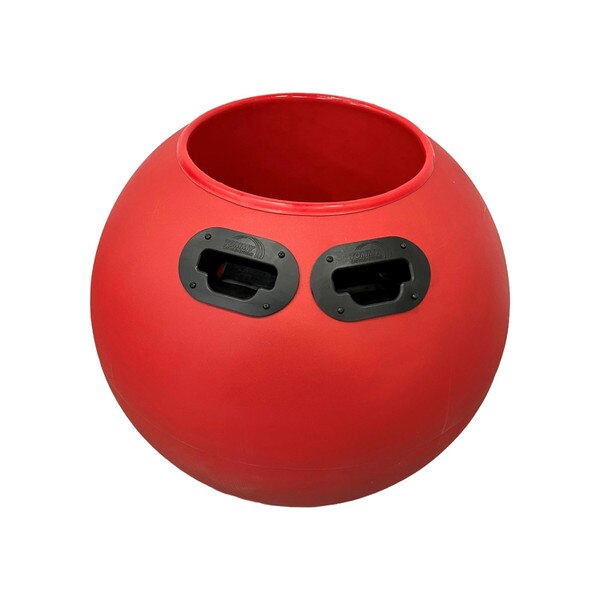

Pre-order the new and improved Tommy Vacuum Nozzle Holsters version 3.0 with estimated shipping late Q3 2024. Newly designed Tommy Car Wash Vacuum Nozzle Holster used on Tommy Balls in the vacuum stalls. The holsters are mounted into the side of the Tommy Ball to house the vacuum nozzles (P-VAC-304) securely while being easily accessible to the guest. The newly designed vacuum nozzle holster features a larger, angled 4-3/4" wide nozzle hole with nesting feature and newly added backer plate with rubber insert to seal the end of the nozzle and provide improved suction force for the other nozzle when in use. The new nest/cradle style body helps increases retention, minimizing the risk of the vacuum nozzle falling out of the holster. Four 3/16" diameter mounting holes are used to install the holsters to the Tommy Balls. Holsters are made of black nylon plastic material, providing durable and weatherproof protection.
NOTICE!!!!
Vacuum relief valve is required to be installed in conjunction with the holsters. Relief Valve part P-VAC-485-A. Failure to do so will result in damage to your vacuum motor.
- Vacuum Nozzle Hole Width: 4-3/4"
- Backer Plate Angle: 19-Degrees
- Mounting Hole Diameter: 3/16" (4X)
- Material: Nylon Plastic
- Color: Black
- Dimensions: 7-3/8" W X 4-1/8" H X 3-1/2" D
- Must be installed with 1 vacuum relief valve per Stanchion P-VAC-485-A.Failure to do so will result in damage to your vacuum motor.
- Curved Front Plate for Improved Fit on Tommy Ball
- Nesting Feature Holds Nozzles in Place in High Winds and Bad Weather

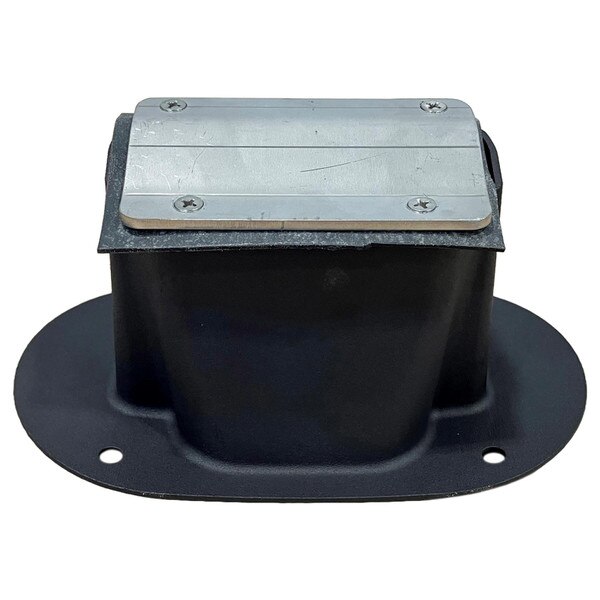

- Angled Screwback Backer Plate and Rubber Insert Added for Increased Suction and Sealing Power
- Weatherproof Nylon Plastic Construction
- Four-Hole Mounting Design
- Drainage Weep Hole
