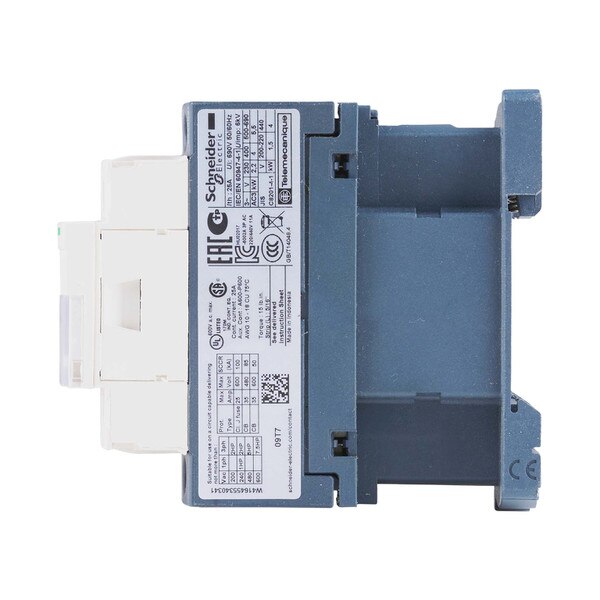

TeSys LC1D09G7 Non-Reversing Contactor (120VAC, 9A, 3 pole)
The LC1D09G7 Contactor is a high-reliability TeSys Deca series non-reversing contactor from Schneider Electric. This versatile component is designed for multiple applications within industrial and HVAC systems, including use in car wash tunnels for equipment like the Conveyor Backup Starter, Guardian 80 Function Controller, and other control applications.

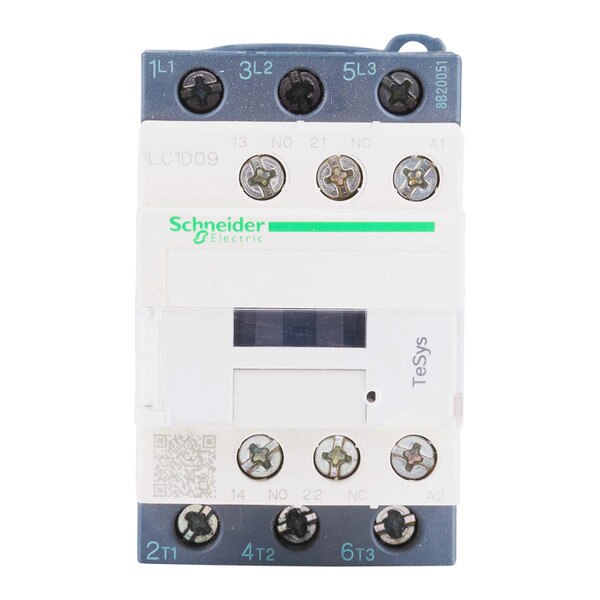

This contactor features a 9 Amp (AC-3/AC-3e at <= 440V AC) current rating for power circuits and a 120 VAC 50/60 Hz coil for control. It has 3 poles with a 3 NO (Normally Open) contact configuration for the power circuit and includes built-in auxiliary contacts (1 NO + 1 NC), which are mechanically linked and mirror contacts. The contactor is designed for both DIN rail and panel mounting via box clamp terminals, offering flexible installation options. The terminals are IP20 finger-safe.
The LC1D09G7 is engineered to control and provide overload protection to motors, offering long mechanical (15 Mcycles) and electrical (2 Mcycles at 9A AC-3) life. It boasts a maximum horsepower rating of 7.5 HP at 575/600VAC (3 phase), and 5 HP at 460/480VAC (3 phase). It has a power rating of 5.5 kW at 500V/690V AC. The operating temperature range is -40°F to 140°F (-40°C to 60°C), with derating up to 158°F (70°C). It features an SCCR (Short Circuit Current Rating) of up to 100kA. The contactor complies with numerous international standards including IEC, UL, and CSA, and has improved fire resistance (IEC60335-1 compliance) and dustproof auxiliaries.
- Product Type: Contactor (Non-Reversing IEC Contactor)
- Manufacturer Part Number (MPN): LC1D09G7
- Brand: Schneider Electric (SQD)
- Series: TeSys Deca (Device short name: LC1D)
- Contactor Application: Resistive load, Motor control
- Poles Description: 3P
- Contact Configuration (Power Circuit): 3 NO
- Auxiliary Contact Composition: 1 NO + 1 NC (Mechanically linked)
- Contact Current Rating (Ie):
- 9 A (at <140 °F (60 °C)) at <= 440 V AC (AC-3, AC-3e) for power circuit
- 25 A (at <140 °F (60 °C)) at <= 440 V AC (AC-1) for power circuit
- Control Circuit Voltage (Uc): 120 V AC 50/60 Hz
- Rated Operational Voltage (Ue) Power Circuit: <= 690 V AC 25...400 Hz, <= 300 V DC
- Horsepower Rating (Max):
- 7.5 hp at 575/600 V AC 50/60 Hz for 3 phase motors
- 5 hp at 460/480 V AC 50/60 Hz for 3 phase motors
- 2 hp at 200/208 V AC 50/60 Hz for 3 phase motors
- 2 hp at 230/240 V AC 50/60 Hz for 3 phase motors
- 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors
- 0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
- Power Rating (Motor kW):
- 5.5 kW at 500 V AC 50/60 Hz (AC-3, AC-3e)
- 5.5 kW at 660...690 V AC 50/60 Hz (AC-3, AC-3e)
- 4 kW at 380...440 V AC 50/60 Hz (AC-3, AC-3e)
- 2.2 kW at 220...230 V AC 50/60 Hz (AC-3, AC-3e)
- Frequency: 50/60 Hz
- Operating Temp. Range: -40°F to 140°F (-40°C to 60°C) (derating for 60-70°C)
- Dimensions:
- Height: 3.03 in (77 mm)
- Width: 1.8 in (45 mm)
- Depth: 3.4 in (86 mm)
- Net Weight: 0.71 lb(US) (0.32 kg)
- Terminal Type: Box Clamp Terminals (Screw clamp)

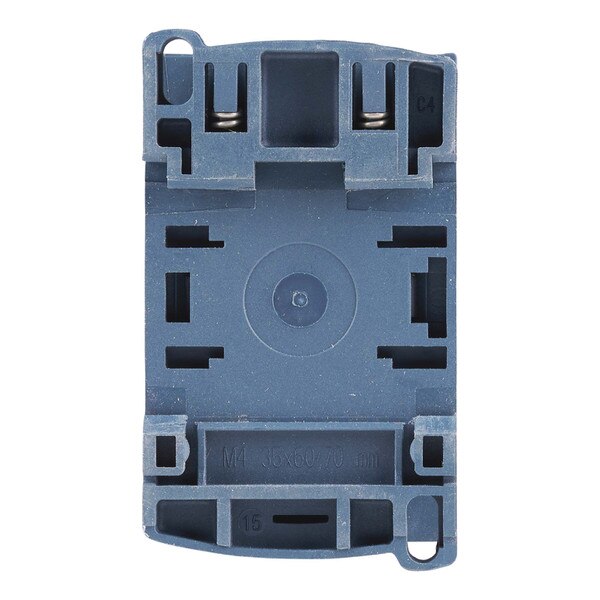

- Mounting: DIN Rail Mounted or Panel Mounted (Plate)
- IP Degree of Protection: IP20 (front face) Finger-Safe Terminals
- SCCR (Short-Circuit Current Rating): Up to 100kA
- Mechanical Durability: 15 Mcycles
- Electrical Durability: 2 Mcycles (9 A AC-3/AC-3e <= 440 V)
- Standards: UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC 60947-4-1, IEC 60947-5-1, IEC 60335-1:Clause 30.2, etc.
- Certifications: UL, CCC, CSA, Marine, UKCA, EAC, CB Scheme
- Non-Reversing Design: Ideal for applications requiring single-direction motor control.
- High Current & Horsepower Capacity: 9 Amp contact current and up to 7.5 HP (3 phase) makes it suitable for various motor applications.
- Versatile Mounting: Supports both DIN rail and panel mounting for flexible installation.
- Built-In Auxiliary Contacts: Provides 1 NO + 1 NC auxiliary contacts for control circuit integration.
- Durable & Reliable: Designed for long mechanical and electrical life in industrial environments.
- IP20 Finger-Safe Terminals: Enhances safety during installation and operation.
- Wide Operating Temperature Range: Functions reliably in temperatures from -40°F to 140°F.
- Multi-Standard Compliance: Meets numerous international safety and performance standards.
