OREI EX-165C HDMI 1.4 Extender over Cat6/7 - 1080p@165ft / 4K@130ft, Bi-directional IR, PoC, HDR & Loop Out

(0)No Reviews yet
$118.99
SKU: P-EM-220

The OREI EX-165C HDMI over Ethernet Extender is a high-performance, feature-rich solution for extending HDMI audio and video signals over long distances, ideal for both residential and commercial installations. This robust kit, comprising a transmitter (TX) and a receiver (RX) unit, is fully HDMI 1.4 and HDCP 1.4 compliant, ensuring compatibility with a wide range of modern display and source devices. It boasts a 10.2Gbps video bandwidth and supports video resolutions up to 1080p@60Hz over a distance of 165 feet using a single Cat6 or Cat7 cable. Remarkably, it can also transmit 4K@30Hz signals up to 130 feet over the same cabling, making it versatile for various resolution requirements.


Beyond its impressive signal extension capabilities, the EX-165C incorporates several advanced features for enhanced user experience. It supports HDR pass-through for vibrant color and contrast, and comprehensive audio pass-through for formats including PCM7.1, Dolby True HD, and DTS HD. A crucial convenience feature is the HDMI loop output on the transmitter, allowing a local display to be connected near the source. For seamless control, it includes bi-directional IR control, enabling operation of source devices from the remote display location and vice-versa. The Power Over Cable (PoC) technology simplifies installation by powering both units from a single 12V/1A power adapter, eliminating the need for an additional power outlet at the receiver. The system also benefits from advanced EDID management for optimal display compatibility.

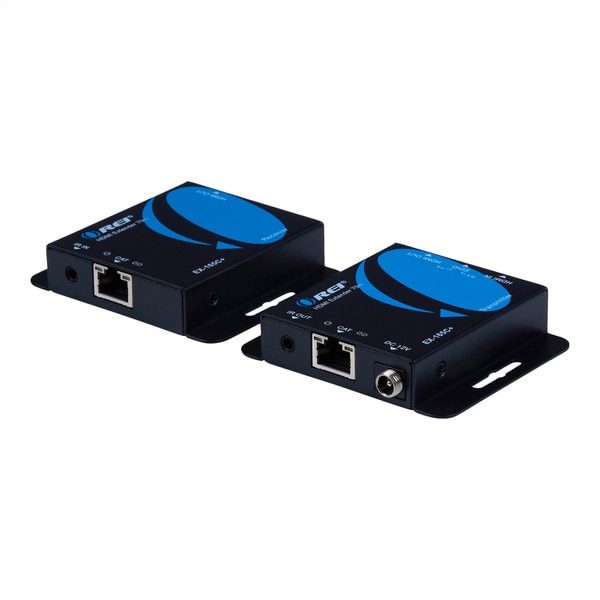

Each unit is housed in a durable metal enclosure and features a compact design, with precise connectivity options including HDMI Type A (female) and RJ45 (8-pin female) ports, along with 3.5mm stereo mini-jack ports for IR control. The package includes all necessary accessories for immediate setup, such as IR blaster and receiver cables, a power adapter, and a user manual.

  • SKU/Model: EX-165C
  • Brand: OREI
  • Manufacturer: Orei Products
  • UPC: 682821015533
  • GTIN: 00682821015533
  • Hardware Interface: HDMI
  • Data Link Protocol: Ethernet
  • Video Bandwidth: 10.2 Gbps
  • HDMI Compliance: HDMI 1.4
  • HDCP Compliance: HDCP 1.4
  • Supported Video Resolutions:
    • Up to 1080p@60Hz
    • Up to 4K@30Hz (via Cat6/7)
  • Max Extension Distance:
    • 1080p@60Hz: 165 feet (50m) over Cat6/7
    • 4K@30Hz: 130 feet (40m) over Cat6/7
  • Supported CAT Cables: CAT5e, CAT6, CAT7 (Shielded CAT6 recommended)
  • Audio Formats: PCM7.1, Dolby True HD, DTS HD
  • Connectivity:
    • Transmitter (TX):
      • Input: 1x HDMI Type A (Female)
      • Output: 1x HDMI Type A (Female) (Loop Out), 1x CAT (RJ45, 8-pin female)
      • Control: 1x IR OUT (3.5mm Stereo Mini-jack)
    • Receiver (RX):
      • Input: 1x CAT (RJ45, 8-pin female)
      • Output: 1x HDMI Type A (Female)
      • Control: 1x IR IN (3.5mm Stereo Mini-jack)
  • Features: HDR Pass-through, Bi-directional IR Control, Power Over Cable (PoC), HDMI Loop Output, Advanced EDID
  • Management.
  • Power Supply:
    • Input: AC 100-240V 50/60Hz
    • Output: DC 12V/1A
  • Power Consumption: TX: 1.8W (Max), RX: 0.87W (Max)
  • Dimensions (Each Unit):
    • Length: 79.5mm (3.13in)
    • Width: 69mm (2.72in)
    • Height: 16.5mm (0.65in)
  • Weight:
    • Transmitter: 132g (4.66oz)
    • Receiver: 130g (4.56oz)
  • Housing: Metal Enclosure
  • Color: Black
  • Package Contents: 1x Transmitter, 1x Receiver, 1x IR Blaster Cable, 1x IR Receiver Cable, 1x Power Adapter, User Manual.
  • Unsupported Features: CEC, ARC, USB KVM, Downmix, Downscale, Over IP, HDBaseT, RS-232
  • Extended Range 1080p & 4K: Transmits 1080p@60Hz up to 165ft and 4K@30Hz up to 130ft over single Cat6/7 cable.
  • HDMI 1.4 & HDCP 1.4 Compliant: Ensures broad compatibility with modern AV equipment.
  • Bi-directional IR Control: Control source device from display location and vice-versa.
  • Power Over Cable (PoC): Powers both units from a single power adapter for simplified installation.
  • HDMI Loop Output: Allows for a local display connection at the transmitter.
  • HDR & Advanced Audio Pass-through: Supports high dynamic range video and immersive audio formats (PCM7.1, Dolby True HD, DTS HD).
  • Metal Enclosure: Provides robust durability and enhanced heat dissipation
