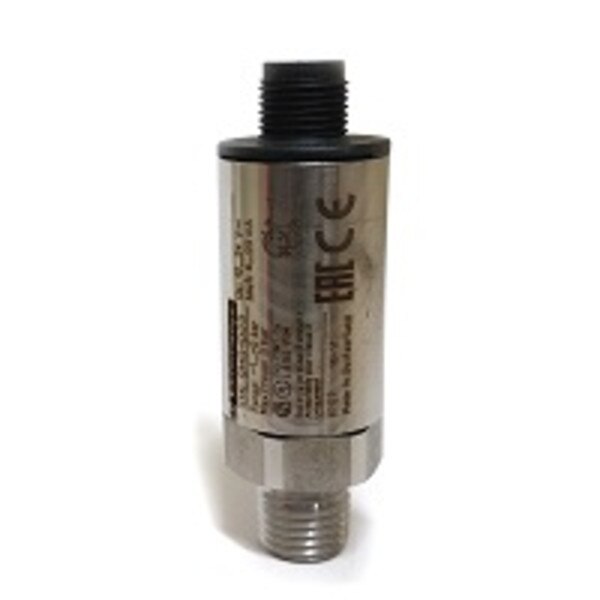

Osisense XMLG Electronic Pressure Sensor
The XMLGM01D23 Electronic Pressure Sensor is a high-performance component within the Telemecanique Pressure Sensors XM range, specifically the XMLG series. This device functions as a pressure transmitter, converting detected pressure into a standard 4-20 mA analog output signal (2-wire connection), making it seamlessly integrable into control systems for monitoring and automation. The 5M Sensor Cable (CCS-XZCP1141L5)is typically used with this sensor.
Designed to measure negative pressure, its sensing range is -14.5 to 0 psi (-1 to 0 bar). It connects to the fluid system via a 1/4" - 18 NPT (male) fluid connection. The sensor is compatible with a wide array of controlled fluids, including air (-15 to 125 °C), corrosive fluids (-15 to 125 °C), hydraulic oil (-15 to 125 °C), and fresh water (0 to 125 °C). The materials in contact with the fluid, such as Ceramic (Al2O3), FPM (Viton®), and stainless steel type AISI 303, ensure durability and chemical resistance across these applications.
Electrical connection is made simple and robust with a 1 male M12, 3-pin connector. The sensor operates on a rated supply voltage of 12 V DC or 24 V DC, with flexible voltage limits ranging from 8 V to 33 V. Its current consumption is efficiently low at < 20 mA.
Key performance metrics include a high measurement accuracy of +/- 0.3% of the measuring range and a consistent repeat accuracy of +/- 0.1% of the measuring range. The sensor boasts a rapid response time on output of < 2 ms and exhibits minimal drift in sensitivity and zero point, at just +/- 0.015% of the measuring range/°C. Its mechanical durability is rated at an impressive 10,000,000 cycles.
The XMLGM01D23 is built for demanding environments, featuring robust protection types including load short-circuit and reverse polarity protection. Its enclosure provides superior ingress protection with IP66 and IP67 ratings conforming to IEC 60529, and NEMA 4. It demonstrates high resistance to vibration (20 gn, 9-2000 Hz IEC 60068-2-6) and shock (25 gn for 11 ms IEC 60068-2-27). Additionally, it offers strong immunity to electromagnetic disturbances, electrostatic discharge, fast transients, and conducted disturbances.
This pressure sensor is certified by UL 508, CSA C22.2 No 14, and CE, ensuring compliance with global electrical and safety standards. It operates reliably in ambient air temperatures from -15 to 85 °C (5 to 185 °F) and can be stored in temperatures from -40 to 85 °C (-40 to 185 °F).
- Product Type: Electronic Pressure Sensor (Pressure Transmitter)
- Manufacturer Part Number (MPN): XMLGM01D23
- Brand/Series: Schneider Electric Telemecanique Pressure Sensors XM, XMLG
- Pressure Rating: -1 bar (-14.5 psi)
- Pressure Setting Range: -1…0 bar (-14.5 to 0 psi)
- Maximum Permissible Accidental Pressure: 2.7 bar (39.1 psi)
- Destruction Pressure: 3 bar
- Fluid Connection Type: 1/4" - 18 NPT (male)
- Controlled Fluid: Air, Corrosive fluid, Hydraulic oil (-15 to 125 °C); Fresh water (0 to 125 °C)
- Type of Output Signal: Analog
- Analog Output Function: 4...20 mA, 2 wires
- Electrical Connection: 1 male connector M12, 3 pins
- Rated Supply Voltage (Us): 12 V DC (8-33 V limits), 24 V DC (8-33 V limits)
- Current Consumption: < 20 mA
- Materials in Contact with Fluid: Ceramic, FPM (Viton), Stainless steel type AISI 303
- Local Display: Without
- Electrical Circuit Type: Control circuit
- Operating Position: Any position
- Protection Type: Load short-circuit, Reverse polarity, Surge withstand
- Response Time on Output: < 2 ms
- Drift of Sensitivity: +/- 0.015 % of measuring range/°C
- Drift of Zero Point: +/- 0.015 % of measuring range/°C
- Measurement Accuracy: +/- 0.3 % of the measuring range
- Repeat Accuracy: +/- 0.1 % of the measuring range
- Mechanical Durability: 10,000,000 cycles
- Net Weight: 0.095 kg (0.21 lb)
- Dimensions (Diameter x Height x Length): 22.8 mm (diameter) x 58.1 mm (height) x 48.5 mm (length)Ambient Air Temperature for
- Operation: -15…85 °C (5 to 185 °F)
- Ambient Air Temperature for Storage: -40…85 °C (-40 to 185 °F)
- Vibration Resistance: 20 gn (f= 9-2000 Hz) conforming to IEC 60068-2-6
- Shock Resistance: 25 gn for 11 ms conforming to IEC 60068-2-27
- IP Degree of Protection: IP66, IP67 conforming to IEC 60529
- NEMA Degree of Protection: NEMA 4Standards: CE, IEC 61326-2-3
- Product Certifications: UL 508, CSA C22.2 No 14
- Protective Treatment: TC
- Matching Cord (Recommended): CCS-XZCP1141L5 (sold separately)
- Precise Negative Pressure Measurement: Accurately senses vacuum or negative pressure from -1 to 0 bar (-14.5 to 0 psi).
- Analog 4-20mA Output: Provides a standard, scalable signal for easy integration into control systems.
- Broad Fluid Compatibility: Suitable for air, fresh water, sea water, hydraulic oils, and corrosive fluids.
- Robust Electrical Connection: M12 connector ensures reliable and secure wiring.
- High Environmental Protection: IP66/IP67/NEMA 4 ratings ensure durability in harsh, wet, and dusty conditions.
- Superior Accuracy and Repeatability: Delivers consistent and precise measurements with minimal drift.
- Fast Response Time: Quick <2ms response for real-time process monitoring.
- Enhanced Durability: Ceramic cell, stainless steel, and Viton® construction for long operational life, supported by 10 million mechanical cycles.
- Comprehensive Protection: Includes load short-circuit, reverse polarity, and surge withstand protection.
- Global Compliance: UL, CSA, and CE certified for widespread application.
