RPM22BD 15A Power Plug-In Relay - 24VDC Control, DPDT Contacts

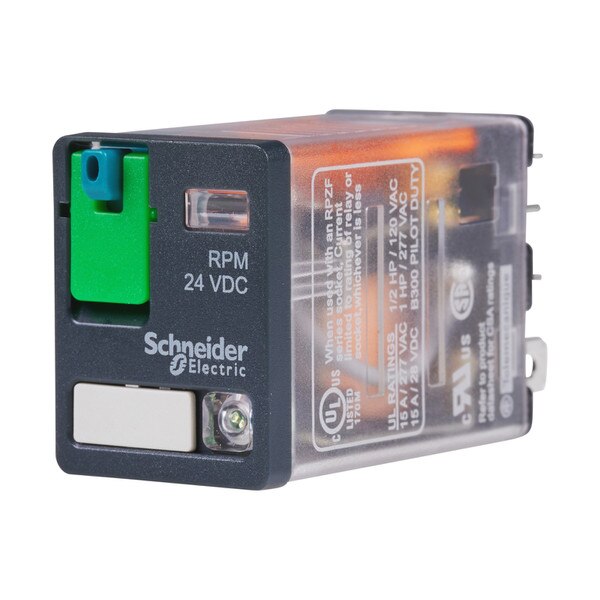

The RPM22BD is a high-performance RPM series power plug-in relay designed for robust control in industrial applications. This multi-purpose relay features a 24 VDC control voltage and is capable of handling a substantial 15 A current rating, making it suitable for demanding circuits. It provides two changeover contacts (2 C/O or DPDT), offering versatile control for multiple independent functions. For user convenience, the relay includes an LED status indicator for immediate visual feedback and a lockable test button for manual operation and troubleshooting. Its design supports socket mounting, enabling quick and efficient plug-in installation into compatible relay sockets.
The RPM22BD offers excellent reliability with a mechanical durability of 10 million cycles and an electrical durability of 100,000 cycles (resistive load). It boasts a robust average coil resistance of 640 Ohms and precise operate and release times of 20 ms at nominal voltage. The relay maintains high safety standards with a rated insulation voltage of 250V (IEC) and 300V (CSA/UL), a rated impulse withstand voltage of 4 kV, and a dielectric strength of 2000 VAC between coil and contact. It operates efficiently within a wide operational voltage range of 19.2 to 26.4 VDC and maintains performance in challenging environments with an IP40 protection rating for the housing and an operating temperature range of -40°F to 131°F (-40°C to 55°C).
This Power Plug-In Relay is specifically utilized in the backroom of the car wash facility, serving as a critical component within the Main Control Panel. Here, it manages multiple functions of the wash system, including the control of RGB LED Light Bars used inside the wash tunnel, ensuring precise and reliable operation of various wash processes.
- Series: Zelio RPM Power Electromechanical Relays
- Product Type: Plug-in relay, Power relay
- Control Voltage (Uc): 24 V DC
- Rated Operational Current (Ithe/Ie): 15 A
- 15 A at 277 V AC (UL)
- 15 A at 28 V DC (UL)
- 15 A at 250 V AC (NO IEC)
- 15 A at 28 V DC (NO IEC)
- 7.5 A at 250 V AC (NC IEC)
- 7.5 A at 28 V DC (NC IEC)
- Voltage Rating (Max Switching Voltage): 250 V AC / 250 V DC

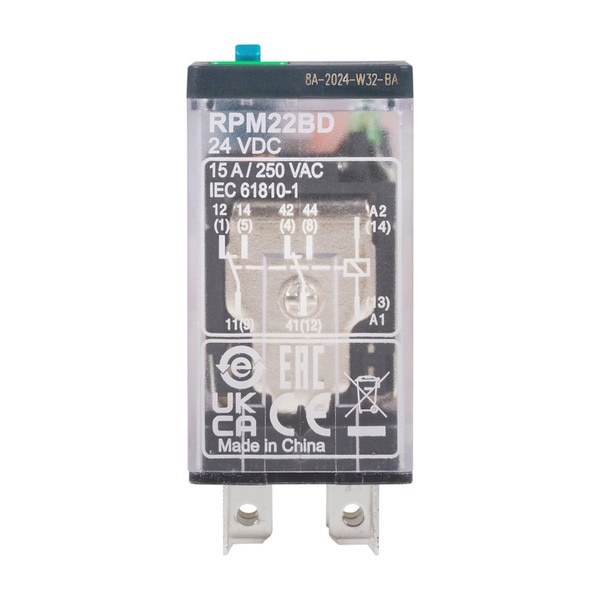

- Contacts Type & Composition: 2 Changeover (2 C/O) / DPDT
- Coil Consumption (Average): 0.85 W
- Average Coil Resistance: 640 Ohm at 68°F (20°C) (+/- 10%)
- Rated Operational Voltage Limits: 19.2...26.4 V DC
- Minimum Switching Capacity: 170 mW (10 mA, 17 V)
- Maximum Switching Capacity: 3750 VA / 420 W
- Operating Temperature Range: -40°F to 131°F (-40°C to 55°C)

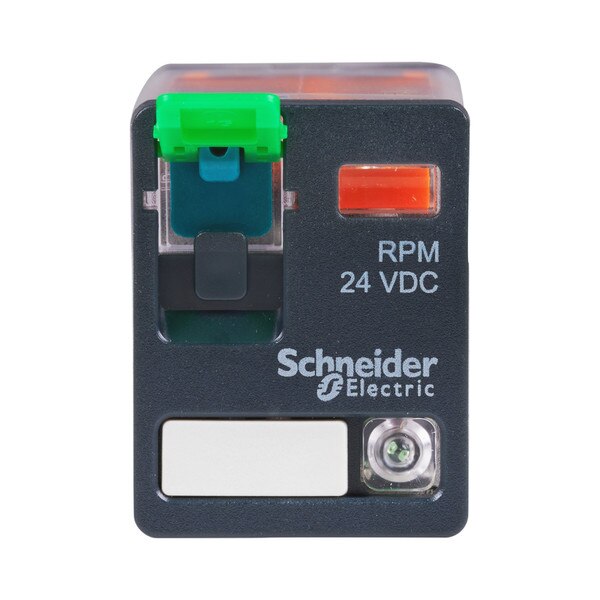

- Status Indicators: LED (With)
- Control Type: Lockable Test Button
- Mounting: Socket Mounted (Plug-in)
- IP Protection (Housing only): IP40 (conforming to EN/IEC 60529)

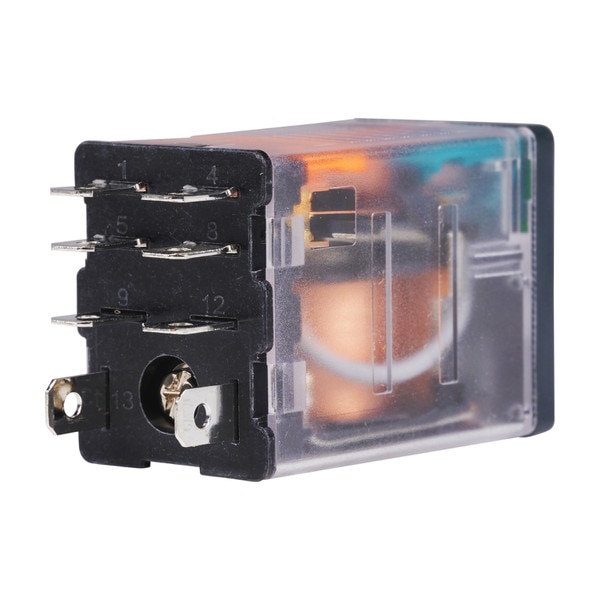

- Shape of Pin: Flat (Faston type)
- Rated Insulation Voltage (Ui): 250 V IEC, 300 V CSA, 300 V UL
- Rated Impulse Withstand Voltage (Uimp): 4 kV (1.2/50 µs)
- Dielectric Strength:
- 1500 V AC between contacts
- 2000 V AC between coil and contact
- 2000 V AC between poles
- Mechanical Durability: 10,000,000 cycles
- Electrical Durability: 100,000 cycles (resistive load)
- Operating Rate: <= 1200 cycles/hour (under load), <= 18000 cycles/hour (no-load)
- Operate Time: 20 ms at nominal voltage
- Release Time: 20 ms at nominal voltage
- Net Weight: 0.08 lb (0.036 kg)
- Standards: IEC 61810-1, UL 508, CSA C22.2 No 14
- Product Certifications: UL Listed, CSA Certified, EAC, REACH, RoHS
- Ambient Air Temperature for Storage: -40°F to 185°F (-40°C to 85°C)
- Vibration Resistance: 3 gn (in operation), 5 gn (not operating)
- Shock Resistance: 15 gn (in operation), 30 gn (not operating)
- High Power Switching: 15A current rating with DPDT (2 C/O) contacts for versatile control of multiple circuits.
- 24VDC Control: Compatible with common low-voltage control systems.
- Built-in Diagnostics: Features an integrated LED status indicator for immediate visual confirmation of relay operation.
- User-Friendly Control: Includes a lockable test button for manual testing and troubleshooting.
- Robust & Protected: IP40 housing protection and wide operating temperature range (-40°F to 131°F) ensure reliability in challenging environments.
- Easy Installation: Designed for convenient plug-in mounting into compatible sockets.
- Certified Quality: UL Listed and CSA Certified, guaranteeing adherence to stringent safety and performance standards.
18 Month Warranty
*Please review our warranty policy here for additional details.
