Tommy's Express 110' Tunnel Belt Replacement Kit

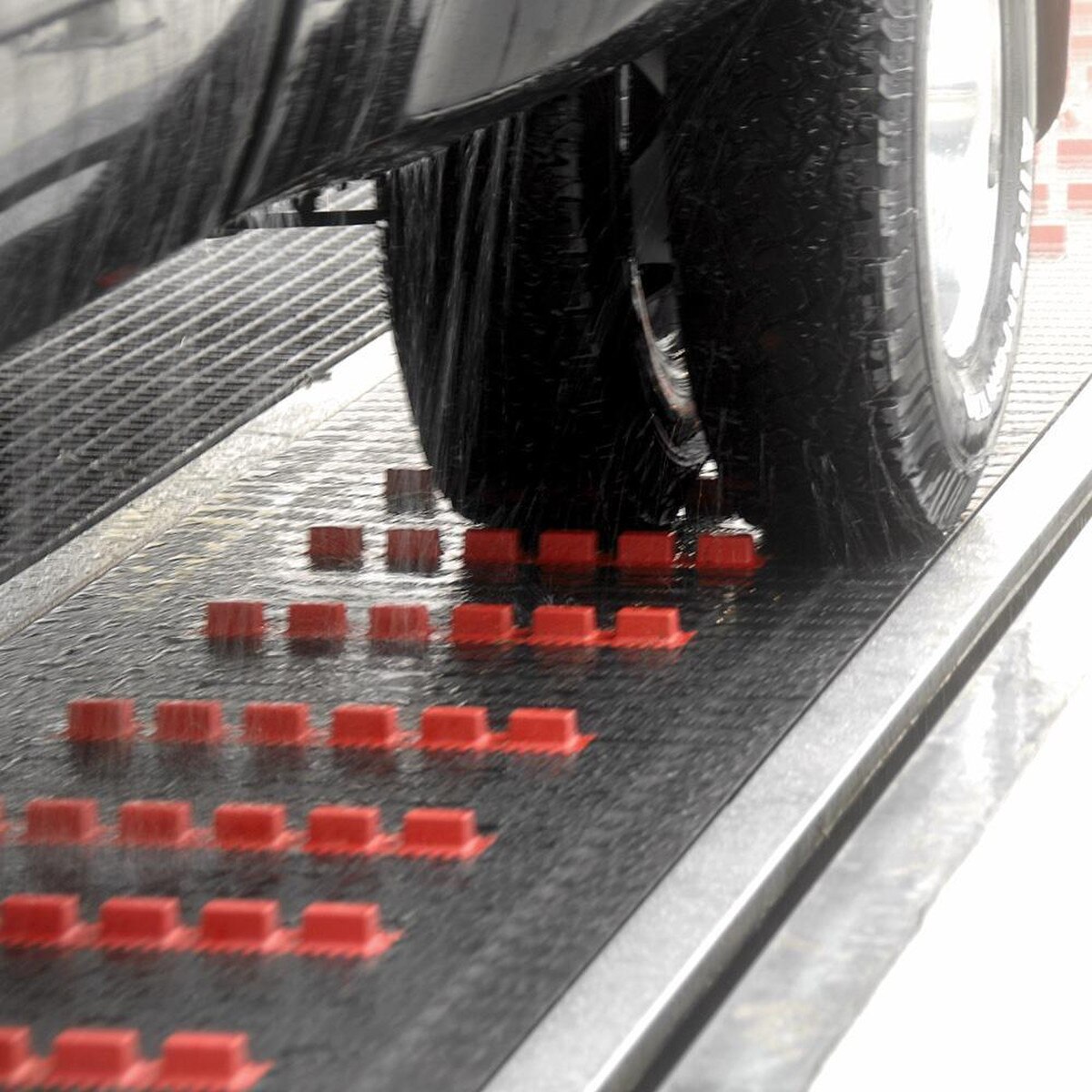

This belt replacement kit is used to replace the belt and accessories in the Dual Belt Conveyor System. This replacement kit includes all the accessories from the Belt Accessories kit (E-BELT-A) as well as the driver and passenger side conveyor belt used in the wash tunnel. The driver side replacement belt in this kit is the standard black belt with red 1" flights that have a 5, 6, 7, 6, 5 spacing between flights. The passenger side replacement belt is also the standard black belt with no flights on it. This specific belt replacement kit is made for 110' tunnel wash sites.

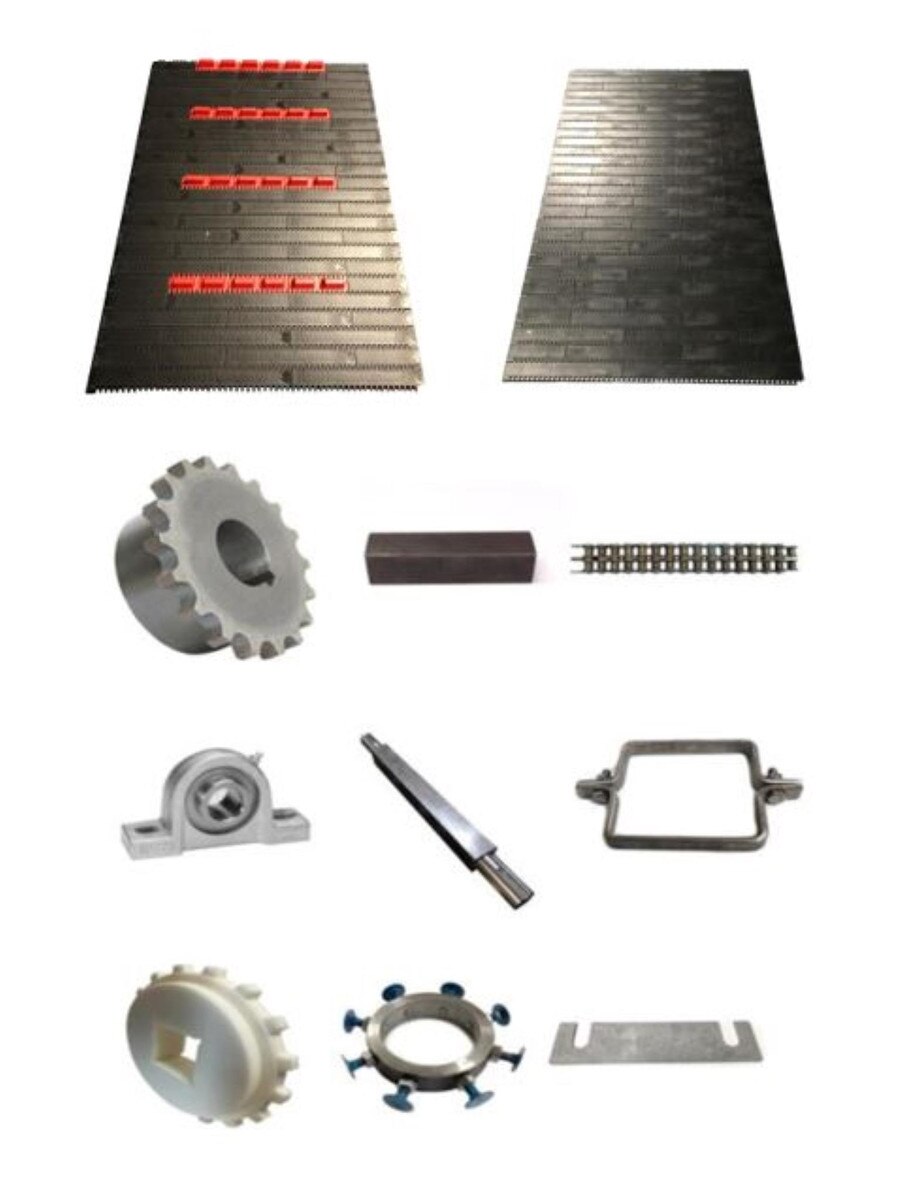

TX110 Franchise Belt Replacement Kit, Includes:
- Belt
Qty 4 - Chain Coupling Flange (Sprocket) for FB8018 x 2-15/16" Shaft for Belt Conveyor drive shaft3/4" standard
Qty 4 - Key (Shaft),3/4" Sq X 3", for Keying Drive Shaft to Chain Couplings, Dual Belt Conveyor
Qty 2 - Chain With Master Link For Belt Conveyor Coupling
Qty 4 - Peer Pillow Block Bearing for Drive Shaft Ends 2 15/16"
Qty 2 - Dual 30" Belt Drive Shaft 42" Long, 3-1/2" Square with ends finished 2 15/16" Round for Bearings, Steel
Qty 20 - 17 Tooth Machined Sprocket (white) for Dual Belt
Qty 4 - Split Collar, Sprocket Retainer, Belt Conveyor Shaft, 31/2" SQ NYL
Qty 1 - Proximity Target Collar2 15/16" Shaft Size
- (200) Feet of Driver Side Black Belt with 5, 6, 7, 6, 5 Red 1" Flight Spacing
- (200) Feet of Passenger Side Black Belt
- (1) Dual Belt Installation Accessories Kit (E-BELT-A)
