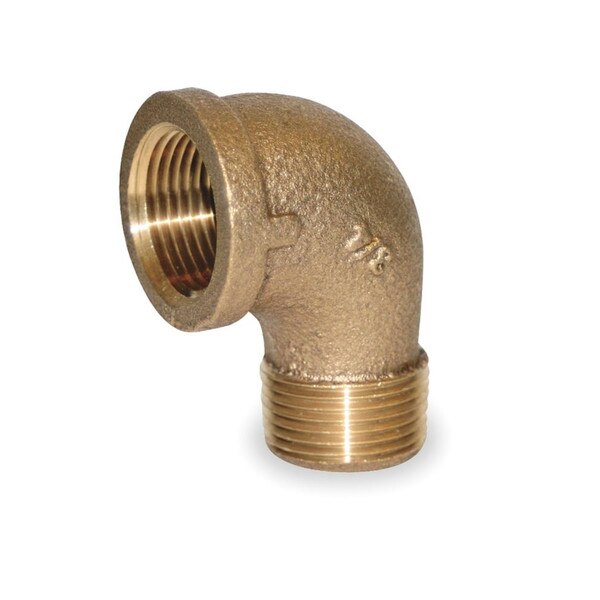

1" MNPT x 1" FNPT Brass 90° Street Elbow
Heavy-duty 90-degree Street Elbow made from high-quality red brass, designed for low-to-medium pressure plumbing applications within industrial pump systems
The P-WAT-2249 (1VEW4) is a precision-engineered plumbing fitting used to create a 90-degree turn in liquid lines. As a "street" elbow, it features one male threaded end (MNPT) and one female threaded end (FNPT). This design is highly efficient for tight spaces, as it allows the fitting to be threaded directly into a female port without the need for an additional pipe nipple.
Constructed from Red Brass (ASTM B584), this fitting offers superior corrosion resistance and durability compared to standard yellow brass or galvanized steel, especially when exposed to the water and chemicals found in car wash environments. It is rated for Class 125 service, supporting operating pressures up to 200 psi.
Tommy Car Wash System Application
Within Tommy Car Wash Systems, this street elbow is a critical component of the All-In-One High Pressure Pump Station. It is specifically utilized within the All-In-One Pump Assembly to manage high-pressure water routing, ensuring a secure, leak-free transition in the pump's manifold or supply lines.
- Product Type: 90° Street Elbow
- Manufacturer P/N: 1VEW4 (Merit Brass)
- Alternate P/Ns: 3047698, BST-16-16, IBRLFS9G
- Material: Red Brass (ASTM B584)
- Pipe Size: 1 inch Nominal
- Connection Type: MNPT (Male) x FNPT (Female)
- Pressure Class: Class 125
- Max Operating Pressure: 200 psi
- Temperature Range: -20°F to 400°F
- Schedule: SCH 40 / Standard
- Standards: ASME B16.15, ASTM B584, ANSI B1.20.1
- Finish: Rough Brass
- Compact Street Design: The male-to-female configuration saves space and reduces the number of leak points by eliminating the need for extra nipples.
- Superior Material: Red brass construction provides excellent resistance to dezincification and corrosion in wet environments.
- Extreme Temperature Range: Capable of handling fluids from sub-zero temperatures up to 400°F, making it suitable for both cold and hot water systems.
- Industrial Strength: Meets rigorous ASME and ASTM standards for wall thickness and material integrity.
- Reliable Sealing: Precision-cut NPT threads ensure a tight seal when used with PTFE tape or pipe dope.
