1 1/2" FNPT x FNPT PVC Full Port Ball Valve

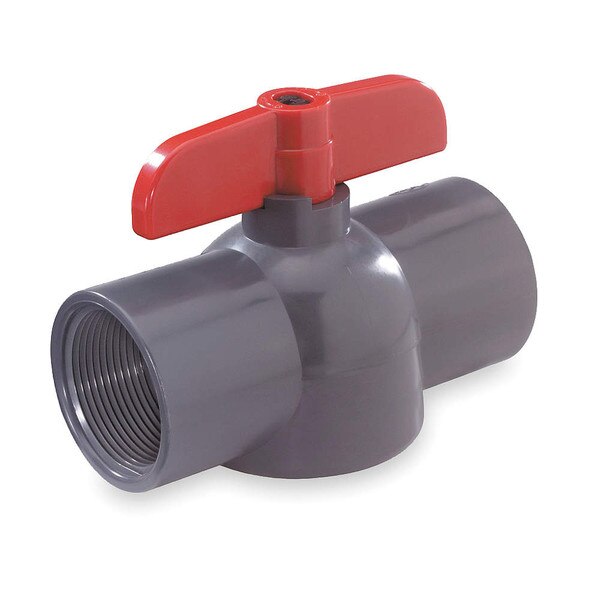

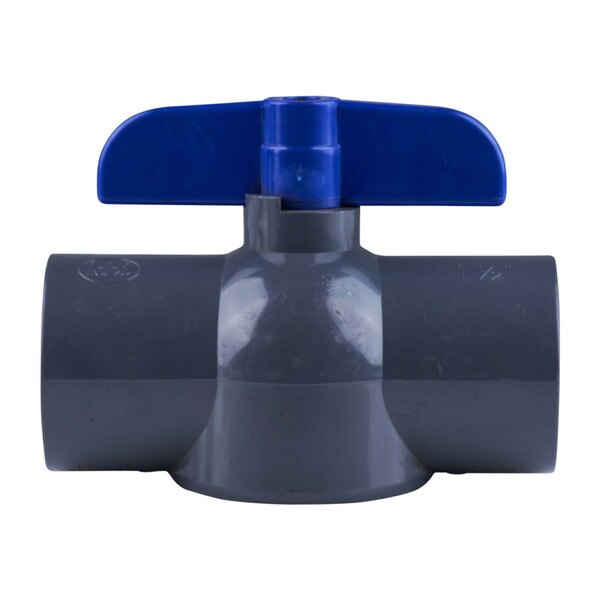

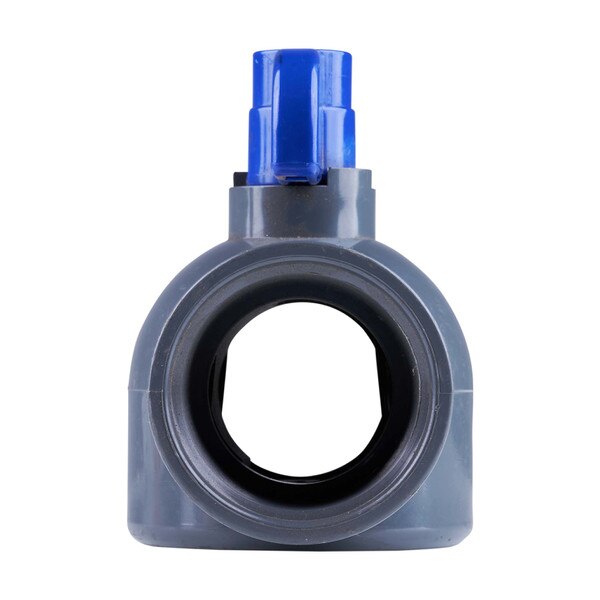

The Two-Way Ball Valve (32H958) is a robust and efficient solution for fluid control. This valve features a 1-1/2 inch pipe size with FNPT (Female National Pipe Taper) connections on both ends, ensuring straightforward inline installation. Its one-piece valve structure combined with a full port design minimizes flow restriction and pressure drop, allowing for maximum flow efficiency.
Constructed primarily from PVC for the body and handle, this valve is inherently corrosion-resistant, making it ideal for water media applications. The ball is made of Acetal (or PVC, based on different specs provided), and the seat material is PVC, while the seal material is EPDM. For enhanced safety, it incorporates a blowout-proof stem made of ABS, which prevents the stem from being ejected under pressure.
The 32H958 ball valve is rated for a maximum pressure of 150 psi WOG (Water, Oil, Gas). It is designed to operate within a temperature range of 33°F to 140°F, and is compatible with Schedule 80 pipe. The valve is operated by a lever handle. It meets UPC and NSF-61 standards, ensuring its quality and suitability for potable water applications.
- Product Type: Two-Way Ball Valve
- Manufacturer Part Number (MPN): 32H958
- Body Material: PVC
- Valve Construction: 1-Piece
- Body Style: Inline, Straight
- Port: Full Port
- Connection Type: FNPT x FNPT
- Pipe Size / Nominal Valve Size: 1-1/2 inch
- Connection Size - Side 1 & 2: 1-1/2 in
- Connection Gender - Side 1 & 2: Female
- Max. Pressure (CWP/WOG): 150 psi
- Ball Material: Acetal
- Seat Material: PVC
- Seal Material: EPDM
- Stem Material: Acetal
- Stem Type: Blowout Proo
- Handle Material: PVC
- Handle Type: Lever
- Media Temperature Range: 33°F to 140°F
- Features: Schedule 80 compatible
- Standards: UPC, NSF-61, ASTM D2464
- 3-A Compliance: Not Rated
- UNSPSC: 40141607
- Corrosion-Resistant PVC Body: Ensures durability and longevity, especially with water media.
- Full Port Design: Minimizes flow restriction for efficient fluid transfer.
- Dual FNPT Connections: Provides straightforward in-line installation.
- Blowout-Proof Stem: Enhances operational safety by preventing stem ejection.
- Schedule 80 Compatibility: Suitable for robust piping systems.
- Certified Quality: Meets UPC and NSF-61 standards, indicating suitability for potable water applications.
