HLG-320H Series 24 VDC 6' Light Bar 320 W Power Supply
HLG-320 Series 24 VDC Power Supply w/ IP67 Protection- Used to Power 6' Colored Light Bars
SKU: TSS-24DC320

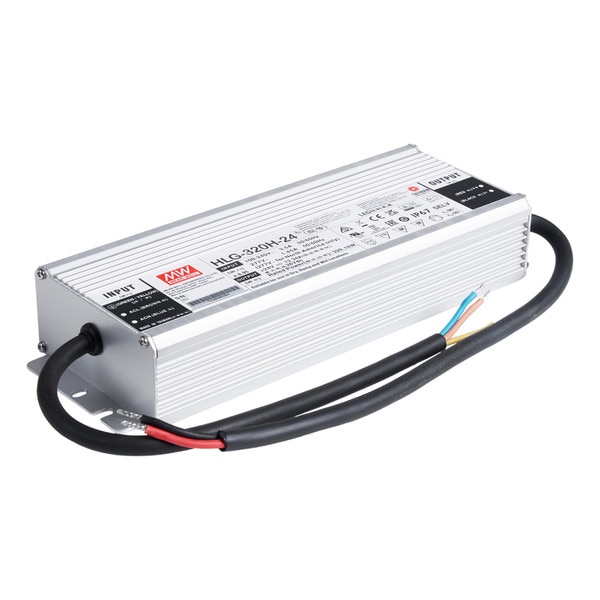

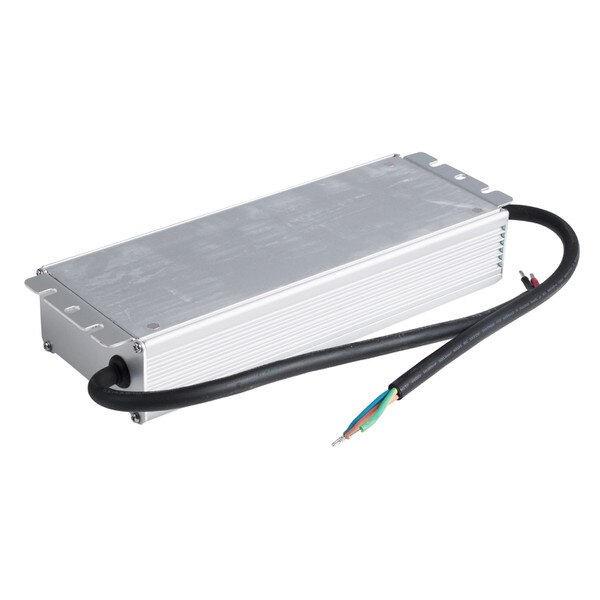

The Mean Well HLG-320H-24 transformer is a high-performance 320-watt AC/DC power supply designed to provide a stable 24 VDC output. It is used as the power supply for the 6' light bars used throughout the wash tunnel (such as P-LED-TC-72-24-288 and P-LED-1043). It features a dual mode constant voltage 24 VDC and constant current 4 A output. It is rated for a power output of 320 W. The robust IP67 metal housing allows the power supply to be used both in indoor and outdoor environments. This power supply comes with various function options for the optimal design for LED lighting systems.
- Output Voltage: 24 VDC
- Rated Current: 13.34 A
- Rated Power: 320 W
- Input Voltage: 90-350 VAC / 127-431 VDC
- Frequency Range: 47-63 Hz
- Operating Temp. Range: -40F-194F
- Housing Material: Metal
- Dimensions: 9-7/8" X 3-1/2" X 1-3/4"
- IP67 Protection
- Constant Voltage and Constant Current Mode Output
- Built-In Active PFC Function
- Short Circuit/Over Current/Over Voltage/Over Temperature Protections
- Cooling by Free Air Convection
- Three-In-One Dimming Function
- Panel Mounting Type
