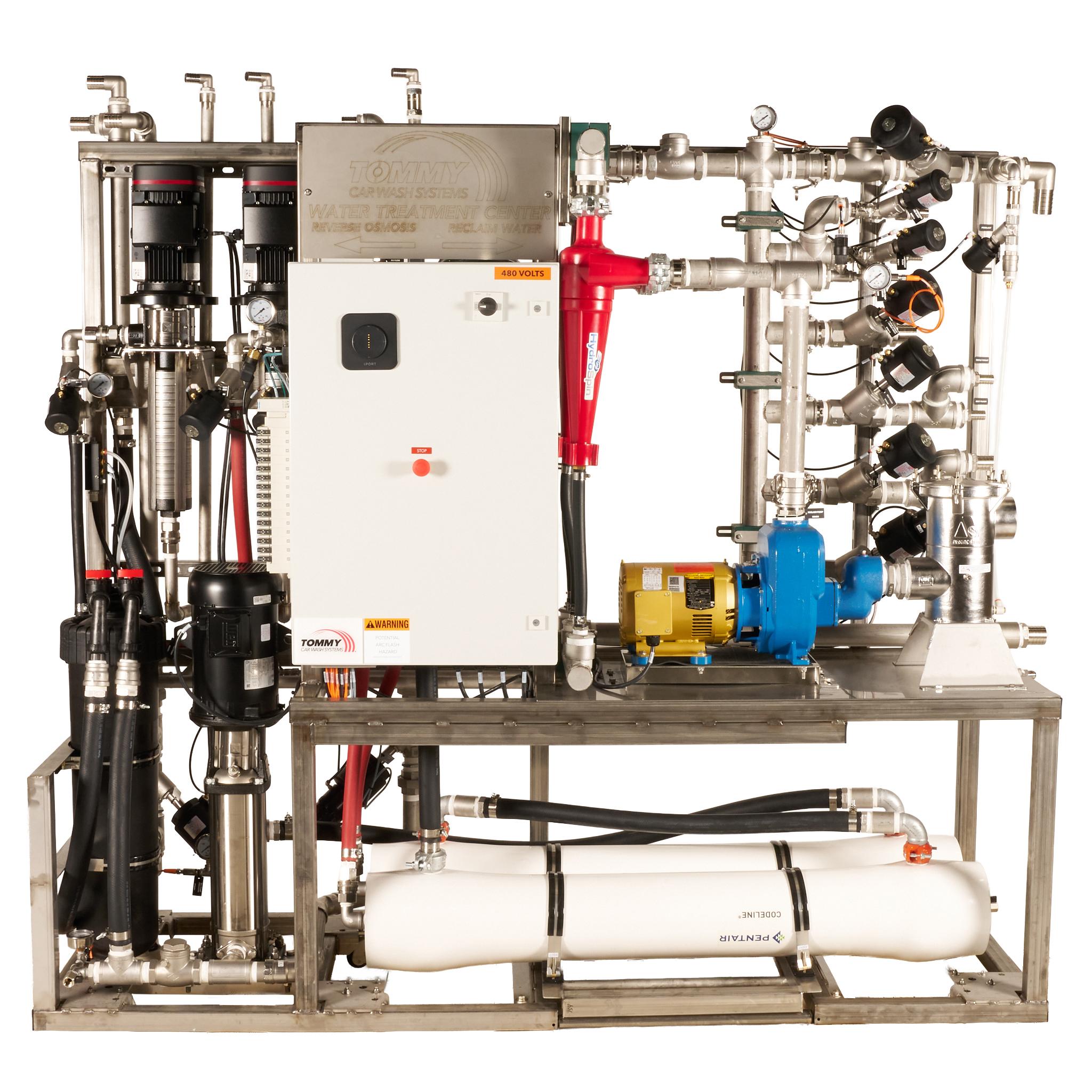

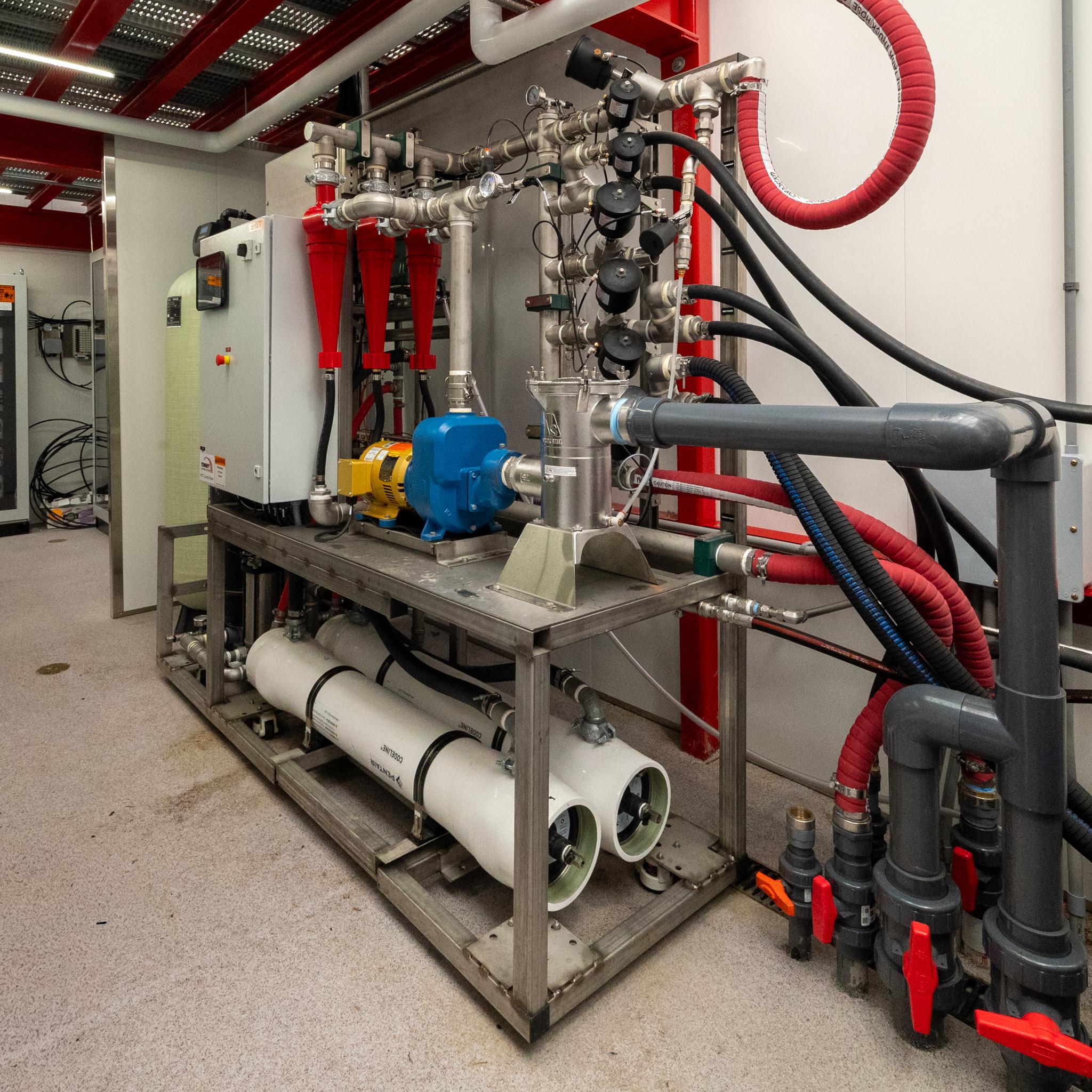

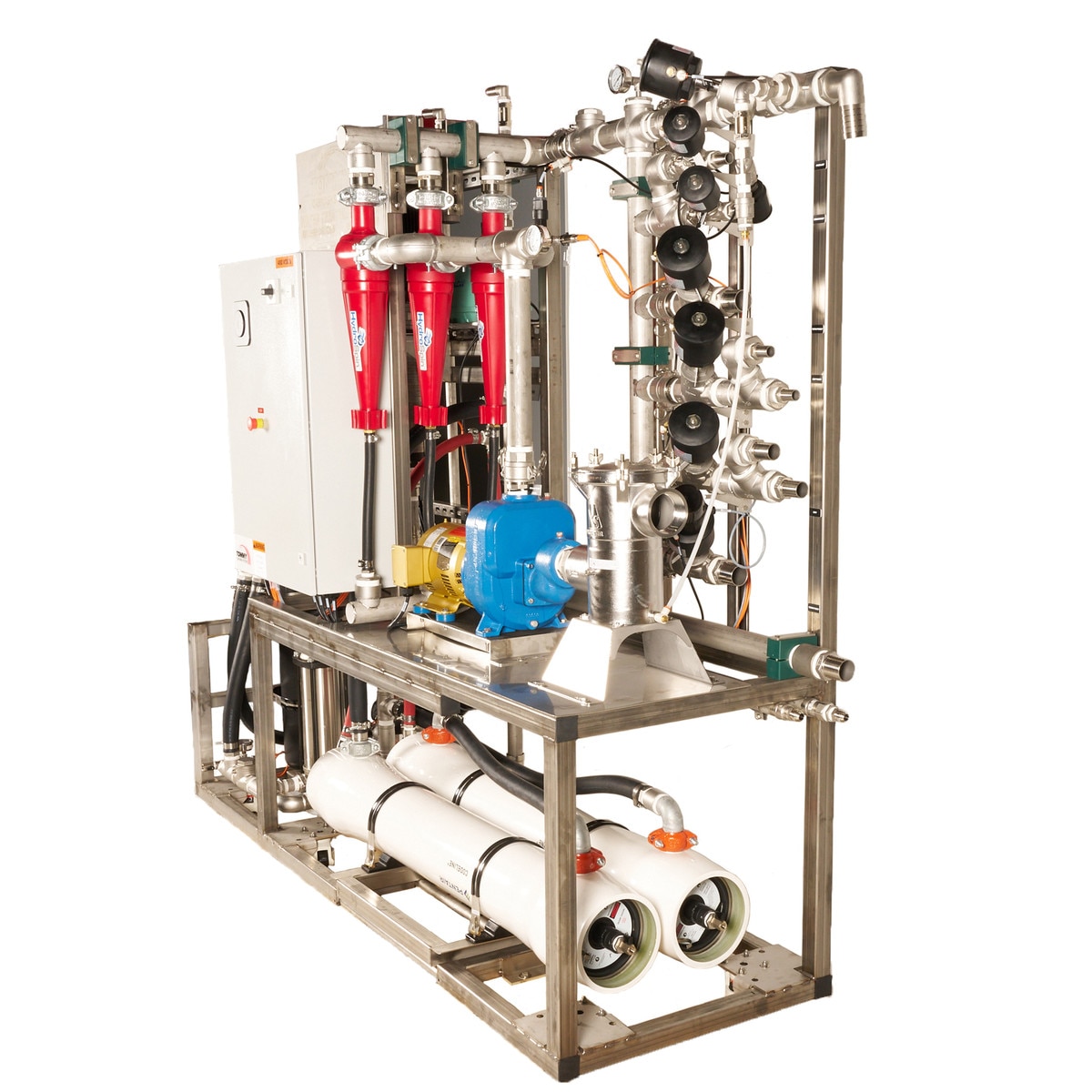

Tommy Water Treatment Center System 480V 60Hz

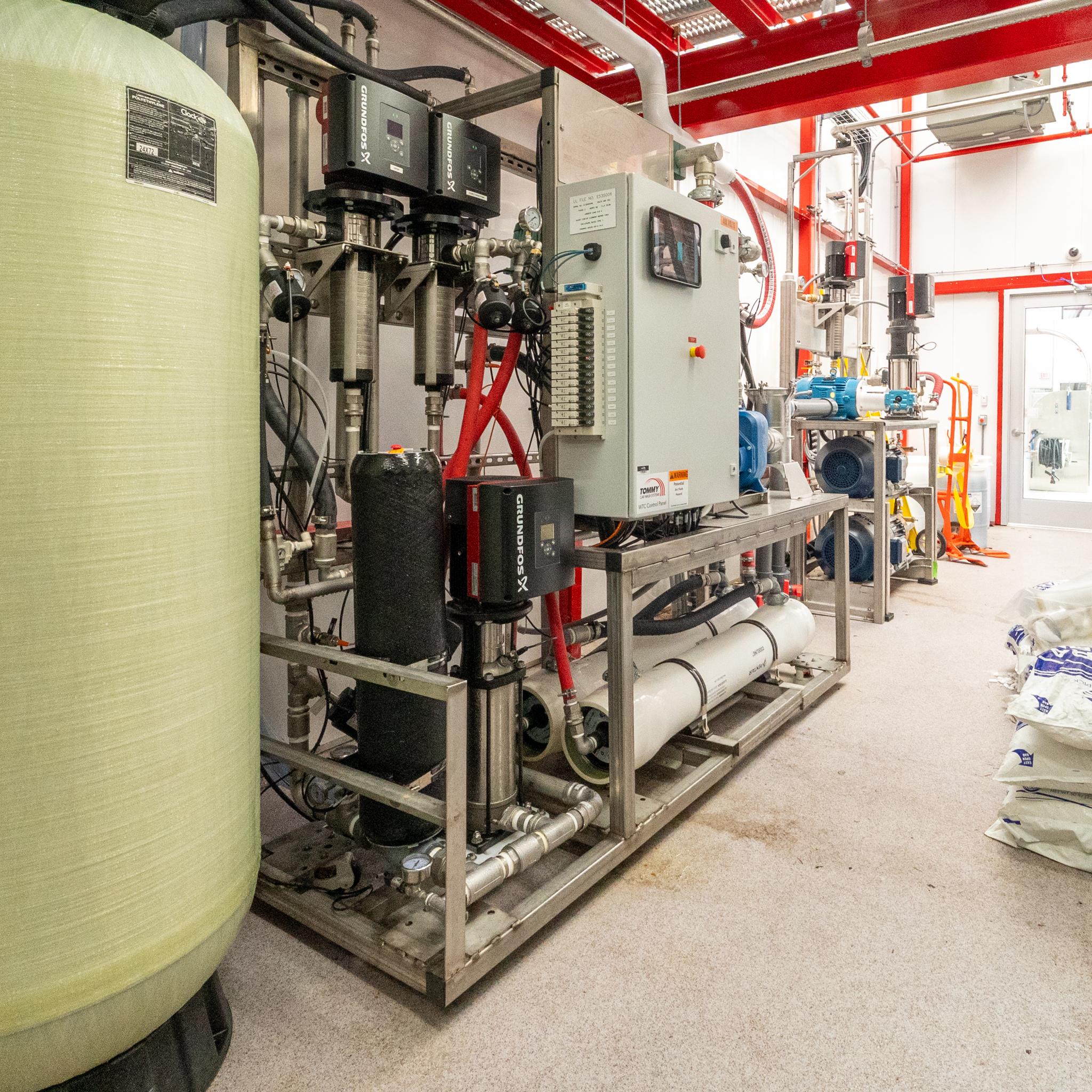

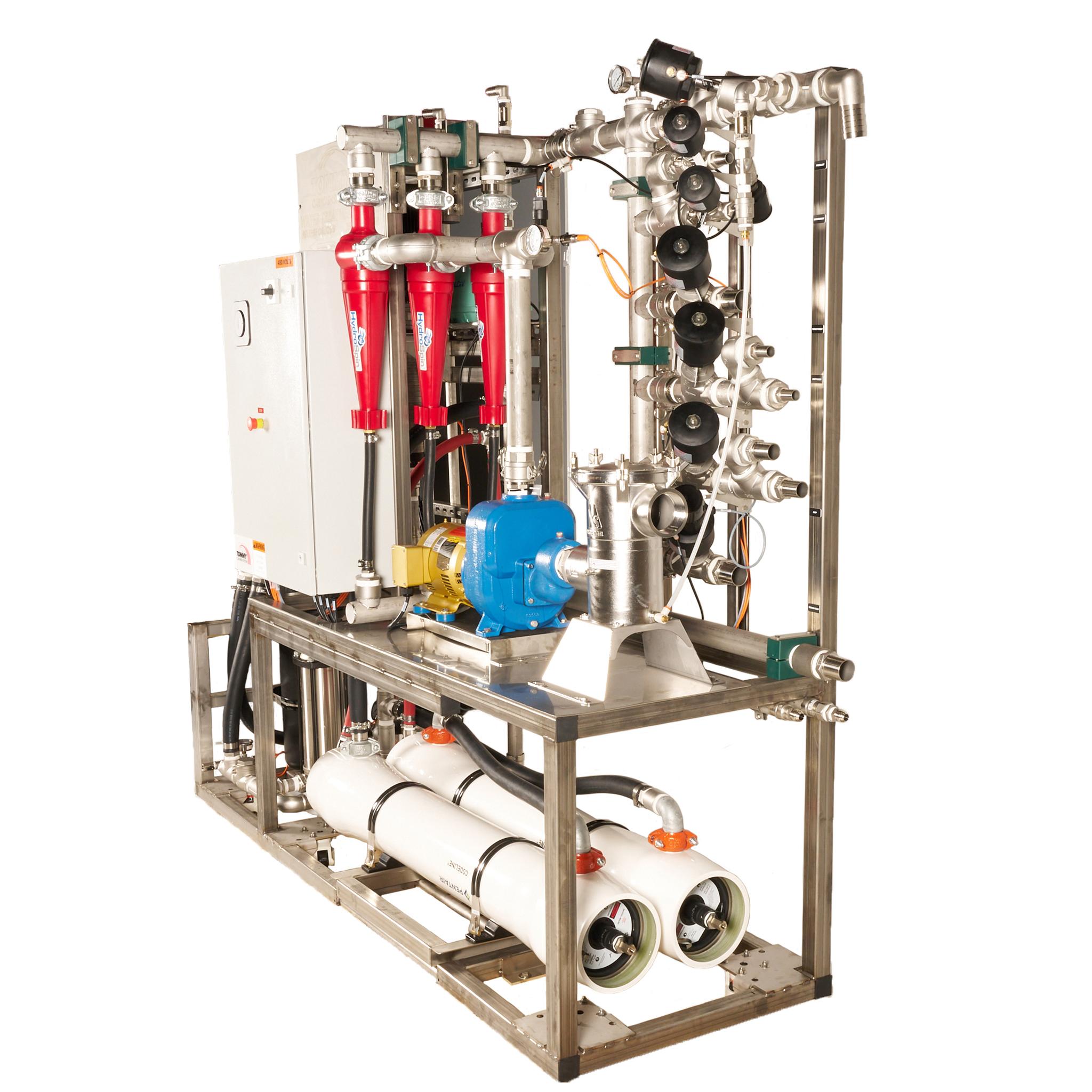

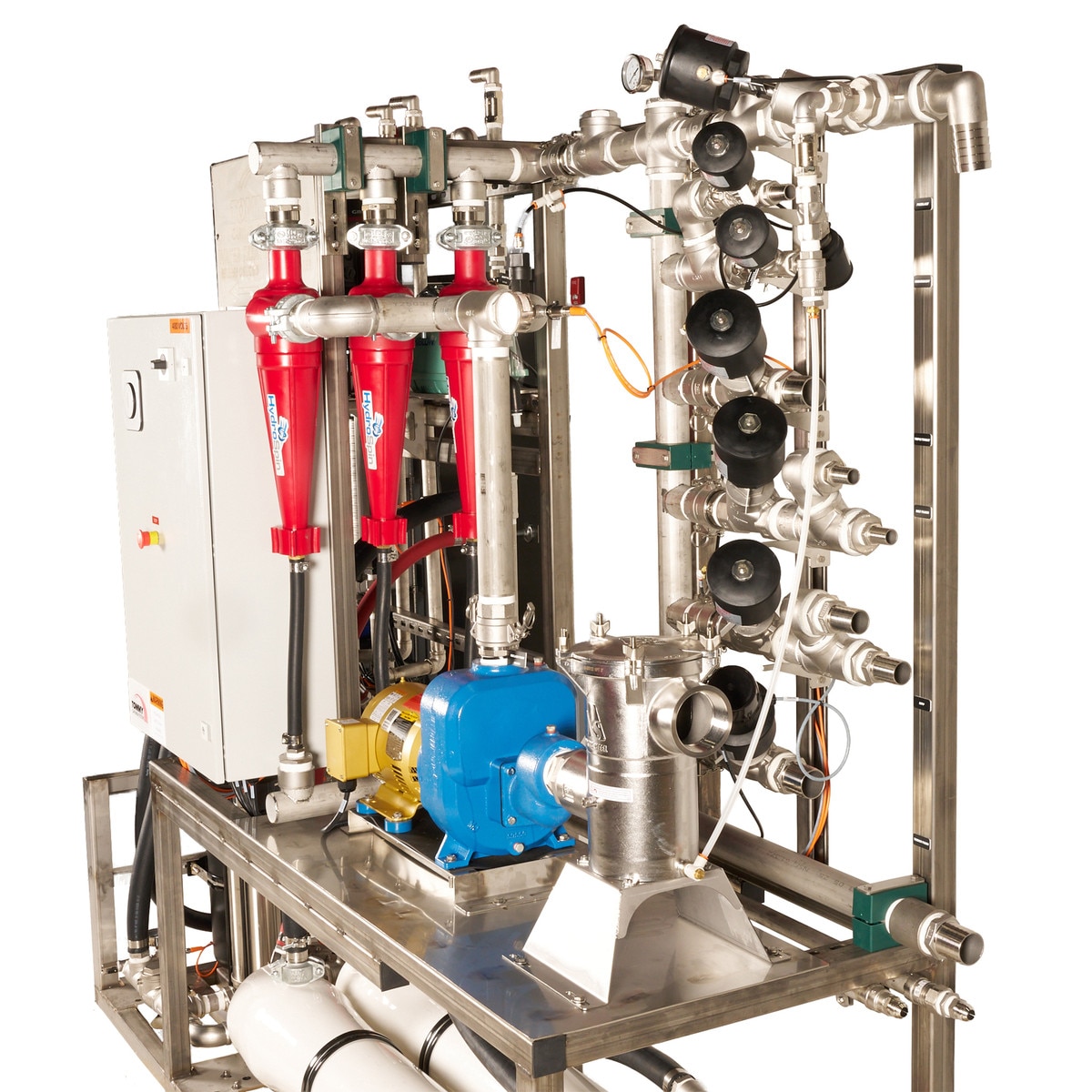

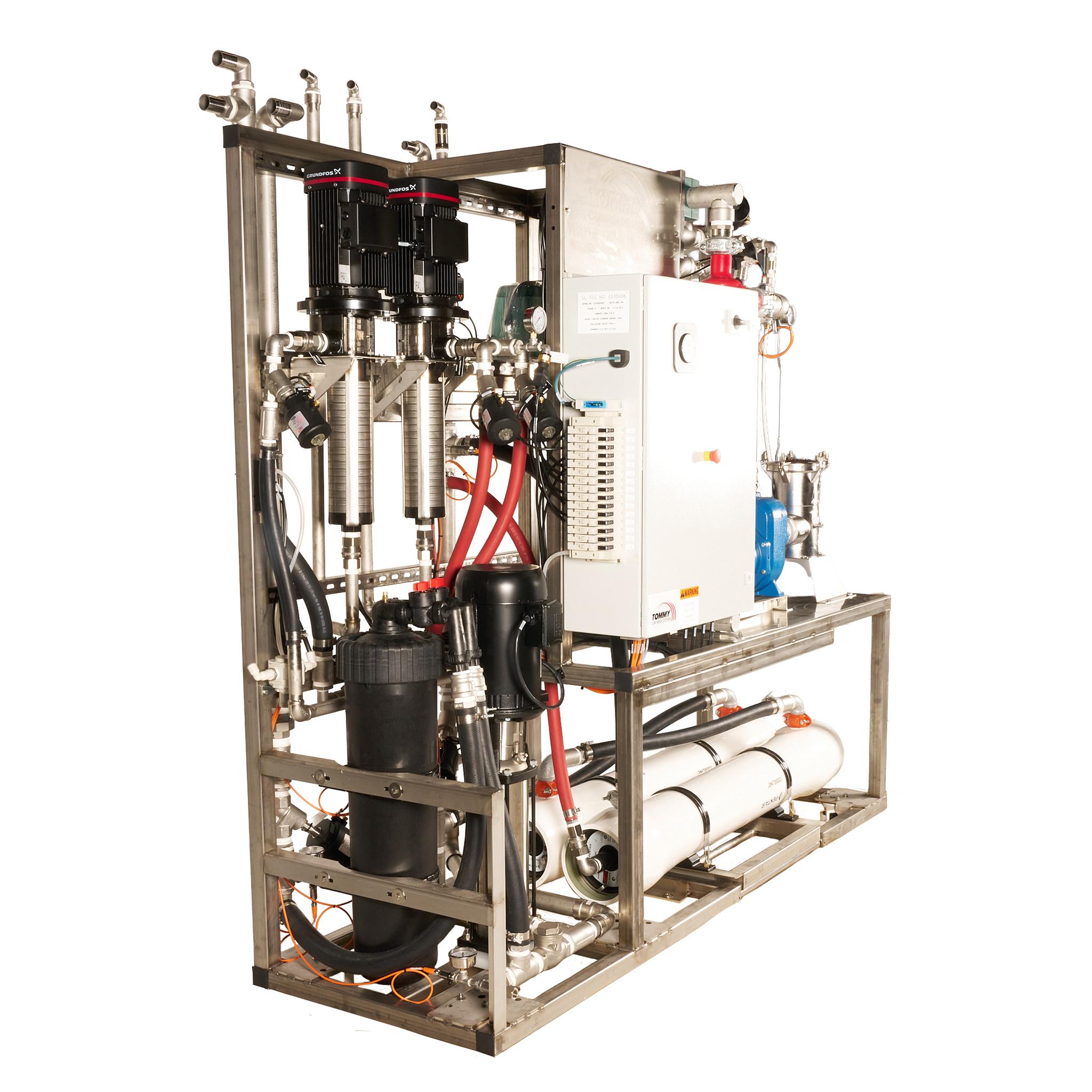

Built on a single heavy-duty stainless steel frame, this all-in-one system replaces standalone reclaim units and RO skids, dramatically reducing backroom clutter, installation complexity, and pipe routing. Engineered to handle the continuous fluid demands of high-throughput express car washes, the Water Treatment Center processes up to 150 GPM of Reclaim water while producing 10 GPM of RO spot-free rinse water (with 10 GPM reject). Operating on a mobile iPad HMI interface and utilizing low-maintenance aeration technology rather than delicate ozone generators, this center reduces operating overhead while ensuring exceptional water quality throughout the tunnel.

Key features and benefits include:

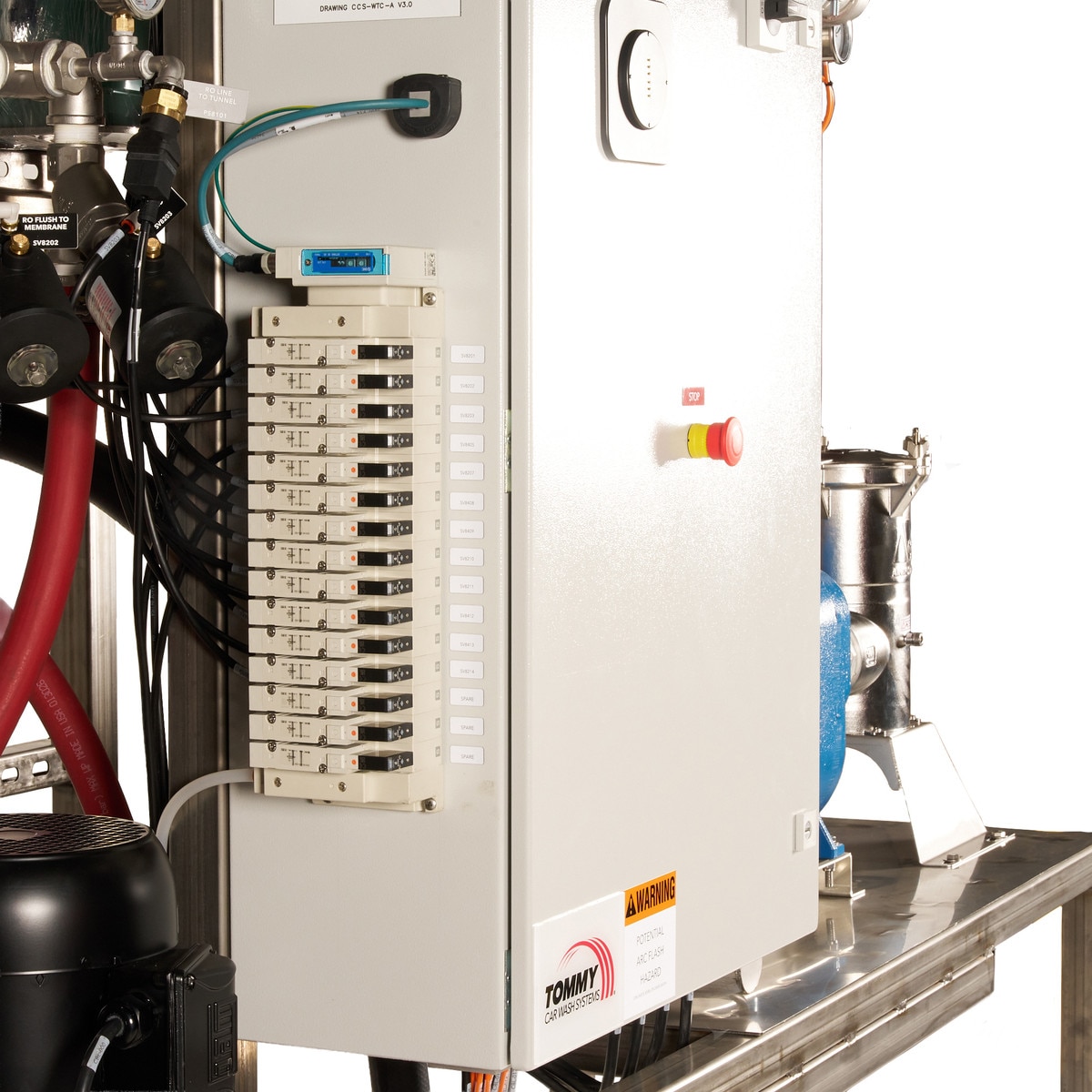

• Consolidated Single-Frame Design: Unifies all RO and reclaim machinery onto a single stainless steel skid with one centralized control panel.
• High-Capacity Water Processing: Delivers 150 GPM reclaim capacity and 10 GPM RO spot-free water to meet peak tunnel demand.
• Mobile iPad HMI Control: Operated via a mobile iPad interface, allowing managers to monitor water treatment parameters and wash status remotely.
• Advanced Aeration System: Replaces traditional ozone generators with an aerator to control tank odors, elevate water clarity, and cut routine maintenance costs.

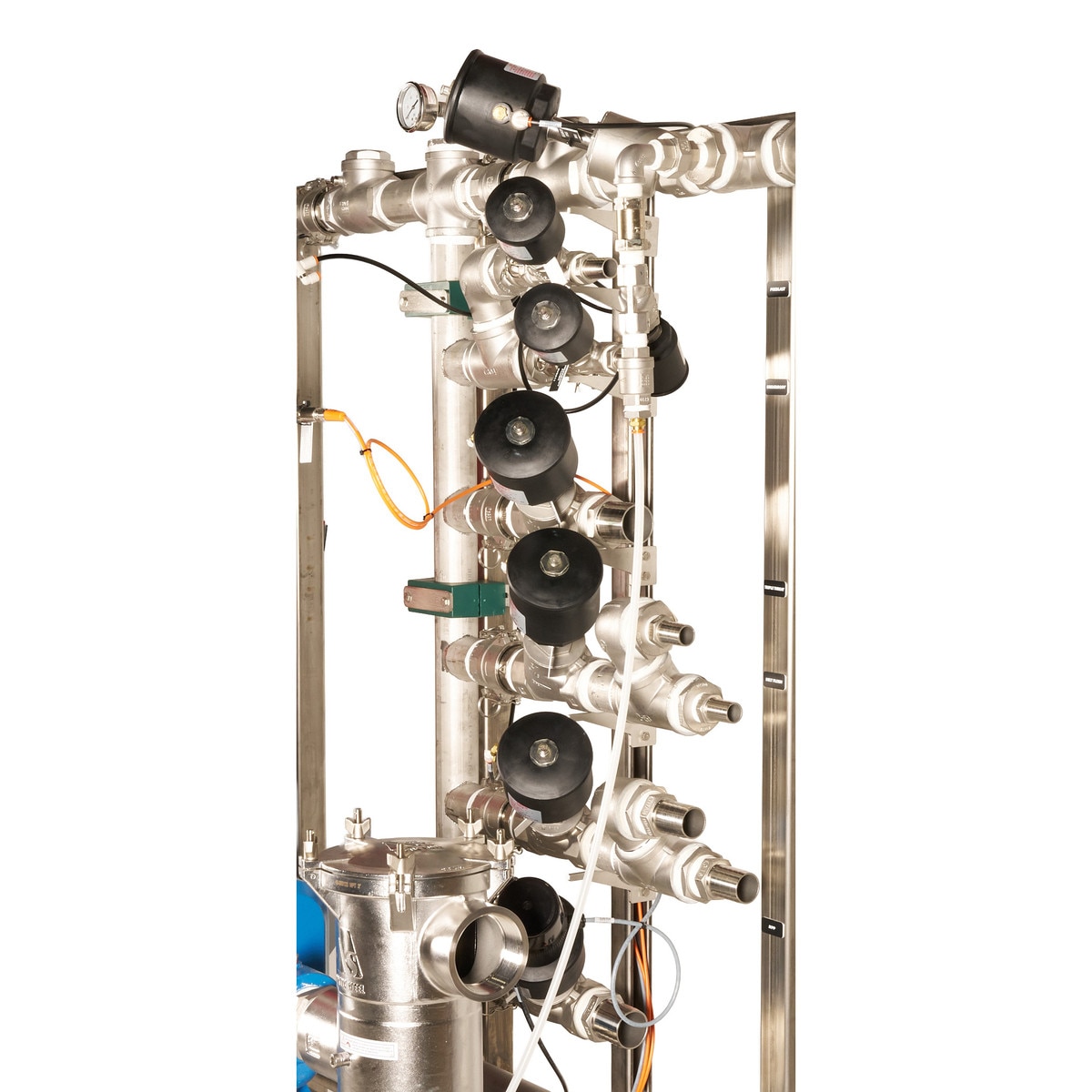

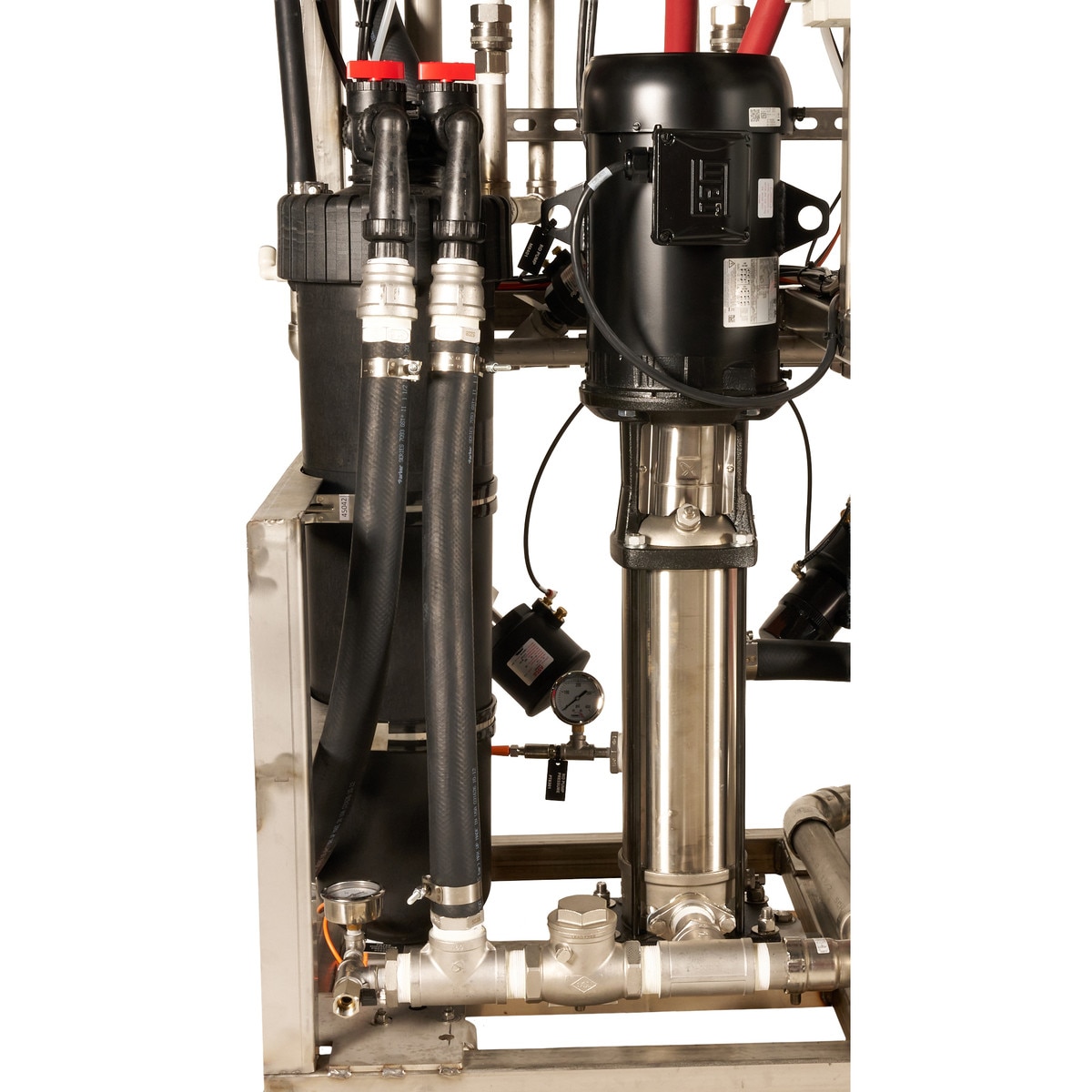

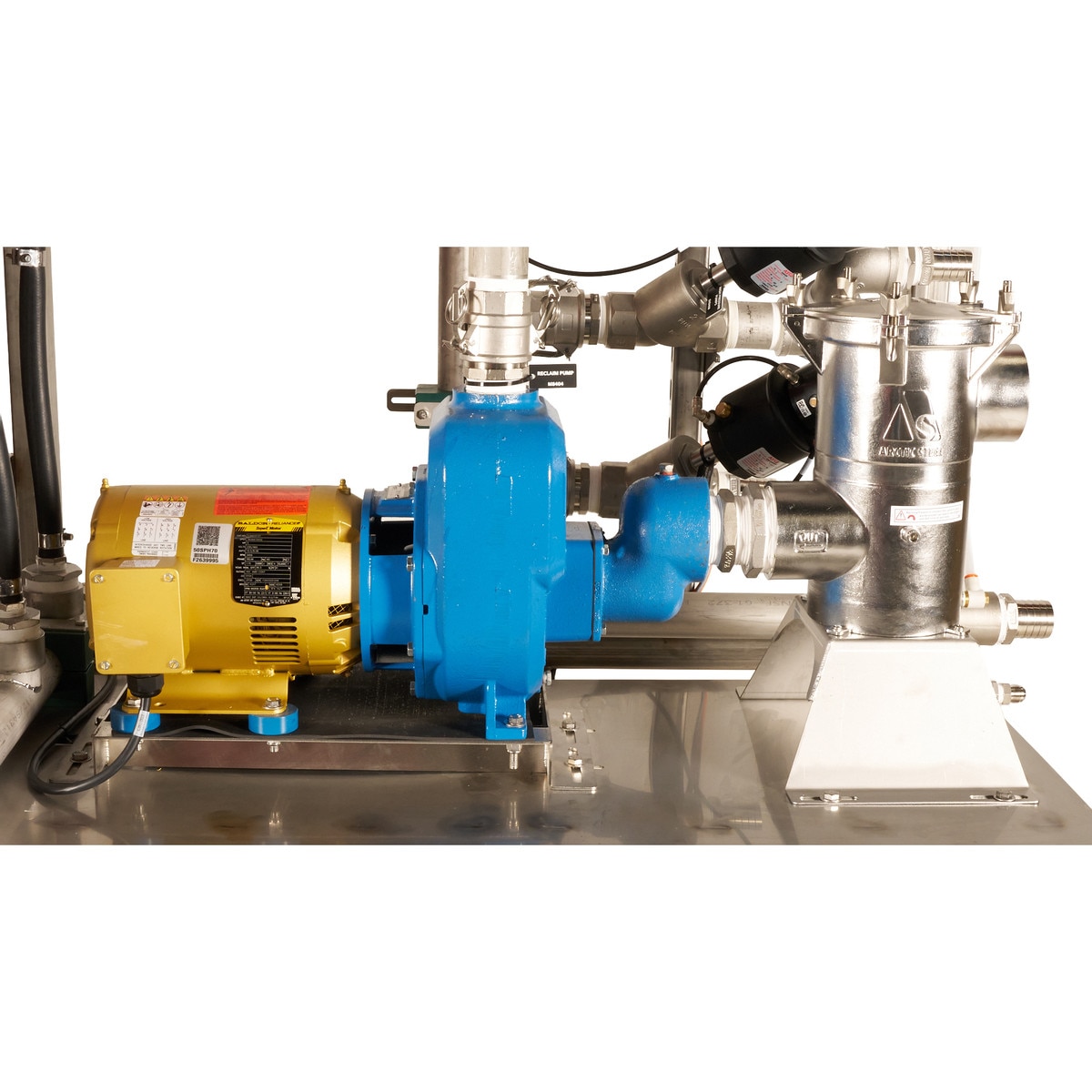

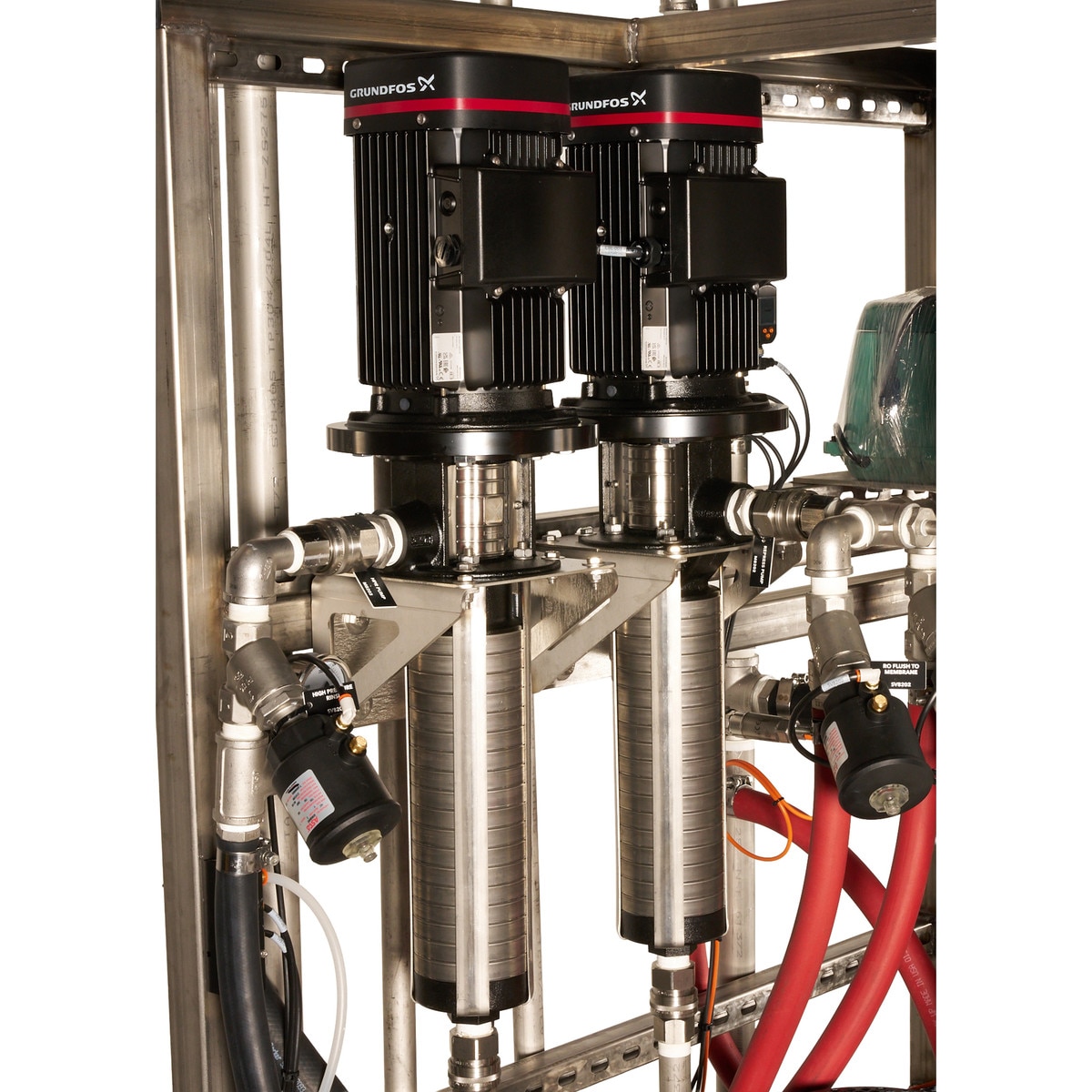

• Integrated Solenoids & High-Pressure Rinse Pump: Houses reclaim function solenoids and the High-Pressure Rinse pump directly on the skid.
• Dedicated Trench Flush Manifold: Includes an in-pit trench flush manifold to circulate and manage water when tunnel demand drops.

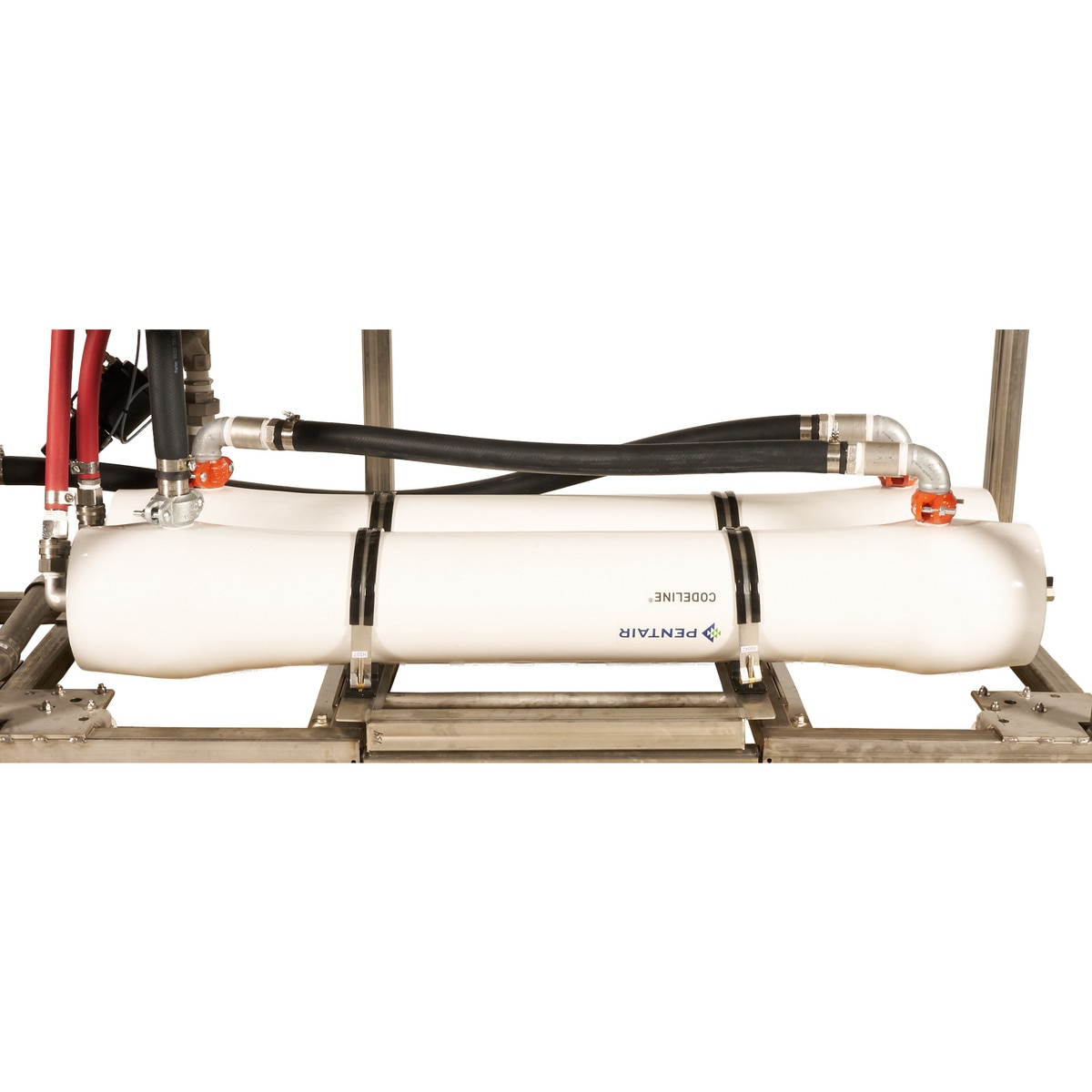

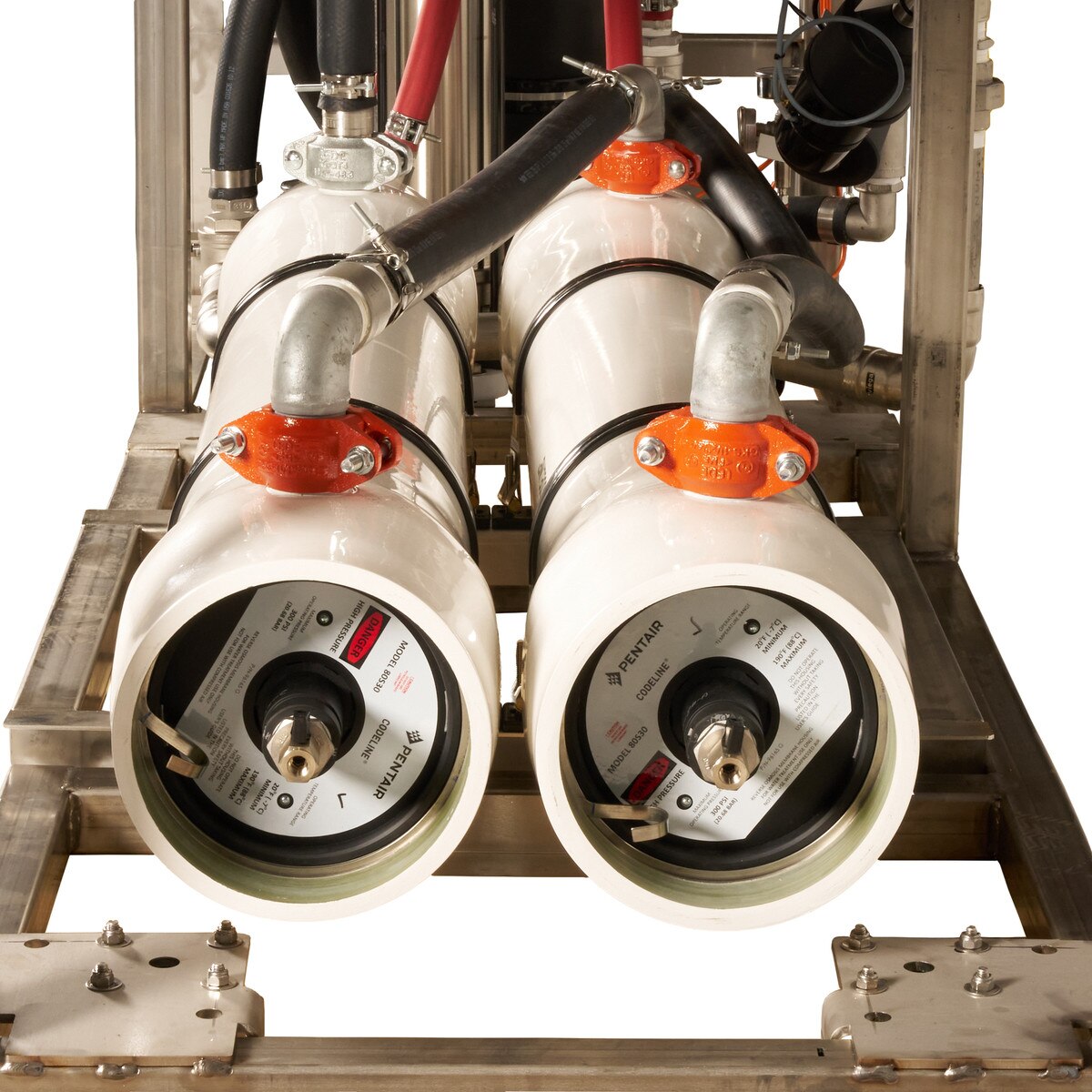

• Leak-Resistant Crimped Plumbing: Uses durable stainless steel crimp fittings and modular RO tanks to ensure long-term, leak-free operation.
• Complimentary Installation Skid Included: Ships with a complete media startup kit including a 10 cu. ft. carbon filter tank, gravel media, Clack control head, resin funnel, and active carbon media.
