Tommy Central Vacuum Carbon Steel 2-1/2" Muffler

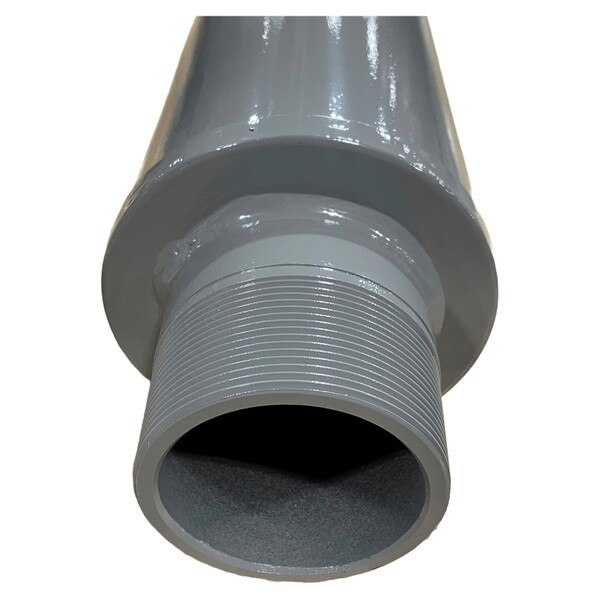

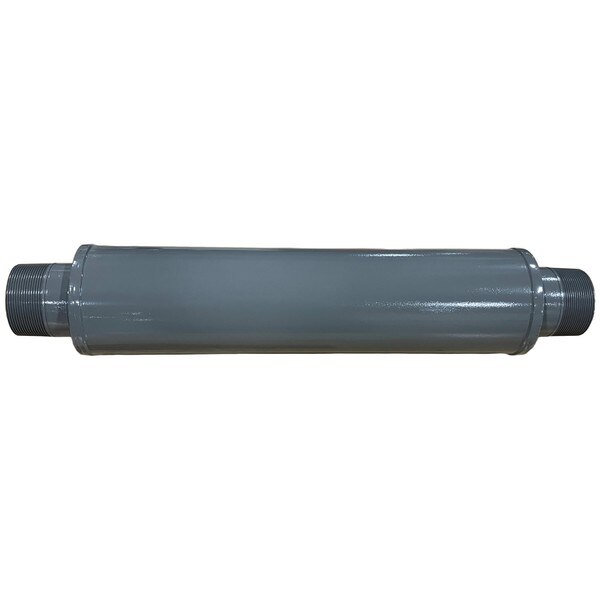

Muffler used on the Tommy Central Vacuum system in the vacuum area of the wash site. This muffler features a 2-1/2" Male NPT connection for both inlet and outlet sides and is 23-5/8" long. It has a flow rate of 300 cfm and is made of corrosion resistant carbon steel with a gray powder coat. The canister for this muffler is 4-1/2" wide and 18-1/2" long while the threaded inlet/outlet connections are 2-5/8" long.
- Inlet/Outlet Connection Size Diameter: 2-1/2" Male NPT
- Inlet/Outlet Connection Size Length: 2-5/8"
- Muffler Total Length: 23-5/8"
- Flow Rate: 300 CFM
- Canister Width: 4-1/2"
- Canister Length: 18-1/2"
