Tommy Point of Sale Swingaway Gate Arm Base with Flange

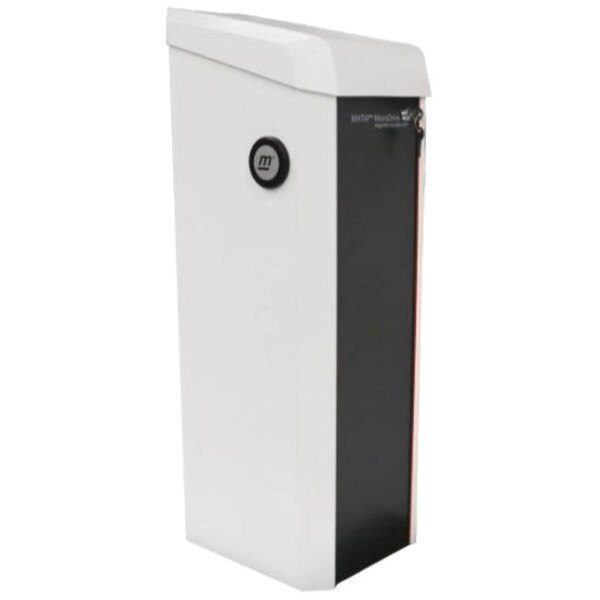

The PARKINGPRO-M-RCS0044 Swing Away Gate Arm Base is a state-of-the-art solution for controlling vehicle access at the Point of Sale (POS) area of a car wash. This base is specifically engineered for use with a Tommy swing-away gate arm (sold separately), providing a robust, high-performance foundation for your access control system.
The base is constructed from powder-coated aluminum, giving it a clean, white finish and providing exceptional durability and resistance to rust and corrosion, even in harsh outdoor environments. Its compact dimensions of 12-1/2" x 13-1/2" x 44" house a powerful and efficient drive unit designed for ultimate performance.
This base is a standout for its advanced technology and low operational costs. The integrated drive unit, consisting of the motor, motor control, and gearing, delivers high torque in a compact design. It features a remarkable opening/closing time of just 1.3 seconds for gate arms up to 12 feet in length, ensuring rapid traffic flow and minimal wait times. Despite its high performance, the unit has a minimal power consumption of only 95 W.
The design is engineered for longevity and reliability, boasting a service life of up to 10 million opening and closing cycles and an operating temperature range of -22°F to 131°F. The internal components are protected by an IP54-rated housing, and the control unit is easily accessible from all sides for convenient maintenance. The swing-away flange is included with the base, simplifying the overall setup and providing a crucial safety feature.
The complete gate arm assembly is available at POS-WC-2039-K.
- Product Type: Swing Away Gate Arm Base
- Part Number: PARKINGPRO-M-RCS0044
- Max Gate Arm Length: 12 feet
- Opening/Closing Time: 1.3 seconds
- Dimensions: 12-1/2" x 13-1/2" x 44"
- Material: Powder-Coated Aluminum
- Color: White
- Power Consumption: 95 WSupply Voltage: 85-264 VAC
- Frequency: 50/60 Hz
- Operating Temp. Range: -22°F to 131°F
- Protection Rating: IP54
- Longevity: 10 Million Cycles
- High Performance: Rapid 1.3-second opening time and high torque drive unit for smooth and quick operation.
- Energy Efficient: Minimal power consumption (95 W) keeps operational costs low.
- Durable Construction: Powder-coated aluminum housing with IP54 protection withstands severe weather and outdoor elements.
- Swing-Away Flange Included: Provides a critical safety feature and simplifies installation.
- Low Maintenance: Advanced technology ensures long-term, almost maintenance-free operation with a life cycle of 10 million cycles.
- Versatile: Supports gate arms up to 12 feet and operates over a wide temperature range.
