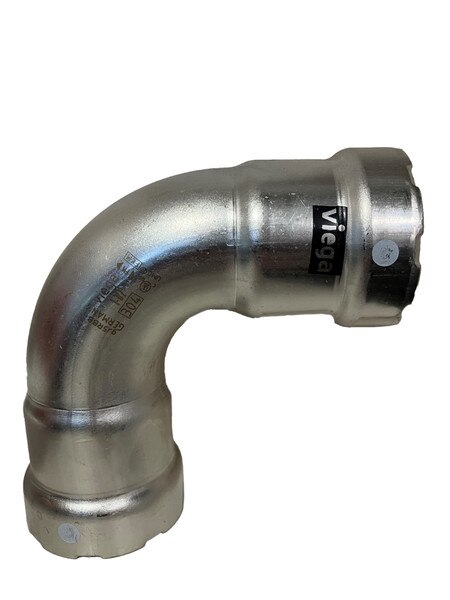

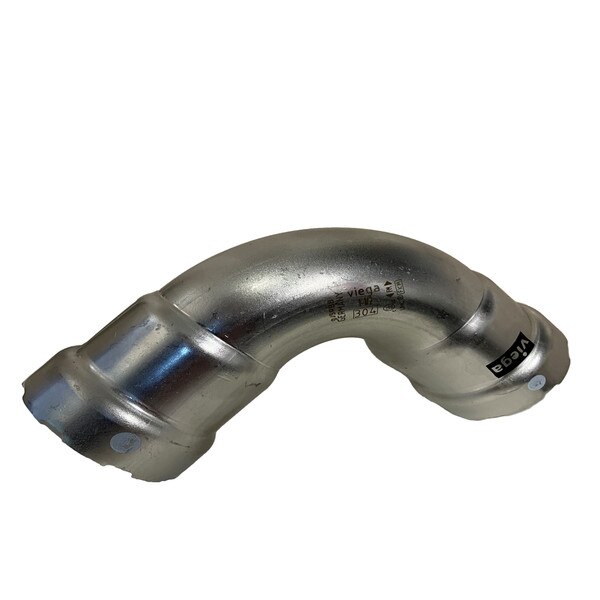

Viega 1-1/2" MegaPress 90 Degree Elbow (304 Stainless Steel, FKM Seal)
The Viega 1-1/2" MegaPress 90 Degree Elbow (95020) is a high-performance fitting engineered for creating durable and efficient directional changes in stainless steel piping systems. This 90-degree elbow is specifically designed for 1-1/2 inch nominal pipe sizes and is ideal for both commercial and industrial applications, where reliability and ease of installation are paramount.

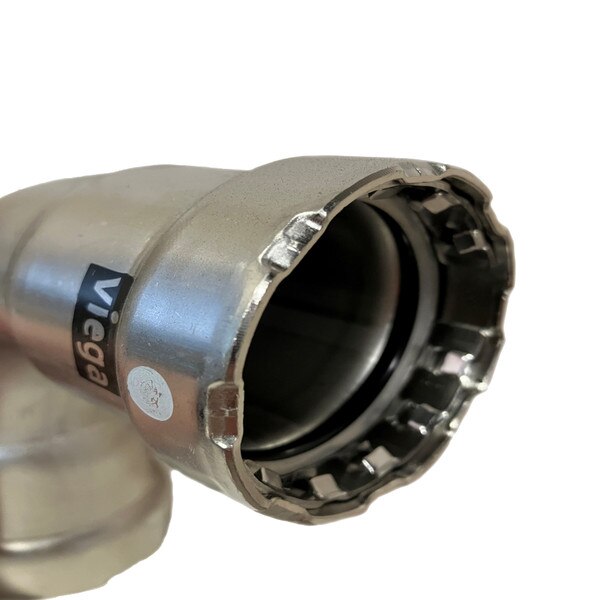

Constructed from 304 Stainless Steel, this MegaPress fitting offers exceptional resistance to corrosion, high temperatures, and various aggressive media. It incorporates a versatile FKM (Fluoroelastomer) sealing element (identifiable by a white dot) which, combined with a 420 stainless steel grip ring and a 304 stainless steel separator ring, ensures a reliable, leak-free connection. This system is compatible with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe, forming a complete press system that can stand up to harsh environments while transporting a wide range of essential fluids or gases such as process water, diesel fuel, lube oil, ammonia, and low-pressure steam.
A significant advantage of this Viega MegaPress elbow is its patented Smart Connect® technology, which allows for a secure connection in less than 7 seconds. This eliminates the need for welding, grinding, heavy equipment, threading, fire watches, hot work permits, or gas freezing, dramatically simplifying and accelerating the installation process. It also supports wet connections, minimizing system downtime. The fitting is rated for a maximum operating pressure of 200 psi and an operating temperature range of 0°F to 250°F.
- Product Type: MegaPress 90 Degree Elbow
- Manufacturer Part Number (MPN): Viega 95020 (Model 4116)
- Fitting/Connector Type: 90 deg Elbow
- Nominal Size: 1-1/2 in
- End Style: Press
- Material: 304 Stainless Steel
- Seal Material: FKM (with White Dot)
- Pressure Rating: 200 psi
- Temperature Rating: 0 to 250 deg F
- Application: Commercial and Industrial (Process Water, Diesel Fuel, Lube Oil, Ammonia, Low Pressure Steam, other essential fluids/gases)
- Compatibility: Schedule 10 to Schedule 40 stainless steel pipe
- Includes: FKM Sealing Element
- Domestic/Import: Import (Country of Origin: DE)
- Standards & Approvals: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
- 90 Degree Elbow: Provides a precise 90-degree directional change for piping runs.
- MegaPress Technology: Enables quick, flameless, and secure press-fit connections without welding or threading.
- Durable Carbon Steel: Zinc nickel-plated for enhanced corrosion resistance in harsh environments.
- Reliable EPDM Seal: Ensures a dependable, leak-proof connection for non-potable water applications.
- High Pressure & Temperature Rating: Suitable for demanding systems with ratings up to 200 psi and 250°F.
- Wet Connection Capability: Can be installed on systems that are still wet, increasing installation flexibility.
- Eliminates Traditional Methods: No welding, grinding, or heavy equipment required, simplifying installation.
