17' Square Straight Steel Pole

(0) No Reviews yet
$450.00
SKU: P-LED-4006
Description: 17' - 4" X 4" Steel Pole, No pre-drill, in Silver Finish

Special Order - IN STOCK

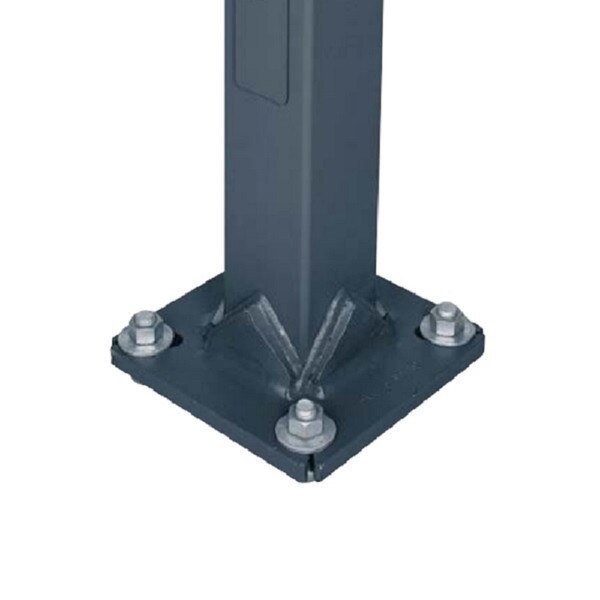

Non-tapered square steel poles are supplied with welded base with cover, four galvanized anchor bolts, masonite mounting template and pole cap (except tenon mount). Each anchor bolt is provided with two washers and two nuts. Steel pole base has slotted holes. Per National Electrical Code requirements, pole is standard with a 2" x 6" (51 x 152mm) hand hole, located 12" (305mm) above the bottom of pole base.

A #10-32 stainless-steel weld stud with grounding lug is located inside pole, opposite hand hole; a hand hole cover is supplied but shipped separately. In addition, 4" x 27' and 4" x 30' poles include an internal 5/16" steel reinforced sleeve welded inside the bottom 24" of the pole, as well as a reinforcement welded around the hand hole for added strength.
  • 17' (5.2m) x 4" (102mm)
  • Wall thickness – 0.125" (3mm)
  • Base plate – 10" (254mm) square x 0.750" (19mm) thick
  • Anchor bolts – 3/4" – 10 x 30" (762mm) + 3" (76mm)
  • Bolt circle diameter – 10" (254mm) 9.3" – 11" (235mm – 279mm)
  • Maximum fixture weight – 300 lbs (136kg)
  • Approximate shipping weight – 131lbs (59kg)
http://shop.tommycarwash.com/site/PDF-AUTO/P-LED-4006.pdf
