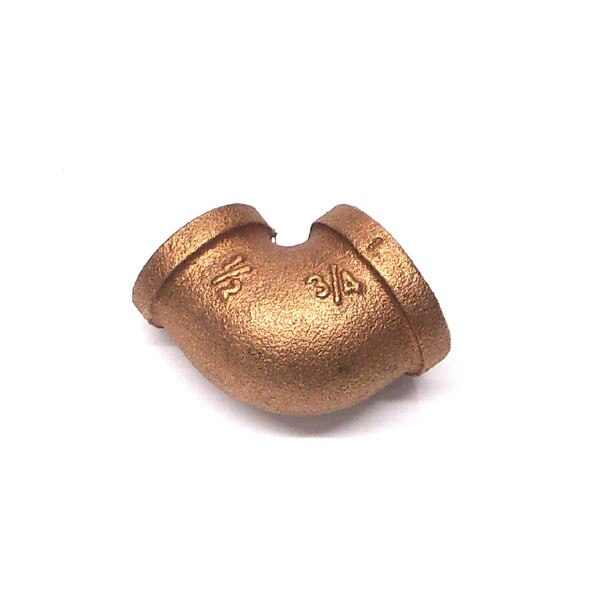

3/4" x 1/2" FNPT Brass 90° Reducing Elbow (Lead-Free)
The P-WAT-2563 (BRE075-050) is a precision-engineered brass fitting used to create a right-angle turn in plumbing lines while simultaneously reducing the pipe size. Featuring a 3/4" FNPT connection on one side and a 1/2" FNPT connection on the other, this elbow is essential for downsizing supply lines to match smaller equipment ports or injector inlets.
Manufactured from high-quality Lead-Free Brass, this fitting is compliant with AB1953 and NSF standards, ensuring it is safe for a wide range of water-based applications. Its durable construction provides excellent resistance to corrosion from car wash chemicals and detergents, making it a reliable choice for the demanding environment of a car wash backroom.
Tommy Car Wash System Application
Within Tommy Car Wash Systems, this reducing elbow is a versatile component found in several critical chemical and maintenance assemblies:
- Tommy Detergent POD: Used to route detergent supply lines from main headers to individual chemical injectors.
- Tommy Maintenance POD: Facilitates compact plumbing layouts for maintenance and water-line transitions.
- 20-Function FLOPRO Panel: Serves as a key junction within the detergent delivery system, allowing for the organized routing of concentrated chemicals through the stainless steel control panel.
- Product Type: 90° Reducing Elbow
- Alternate P/Ns: BRE075-050, TB7-12-08, TBNL7-12-08, BRRL0343-NL
- Manufacturer: Bluefin (and others)
- Body Material: Lead-Free Brass
- Pipe Size: 3/4" x 1/2" Nominal
- Connection Type: FNPT x FNPT (Female)
- Max Pressure: 125 psi (Class 125) / Up to 200 psi Operating Pressure
- Temperature Range: -20°F to 400°F
- Weight: Approx. 0.45 lbs
- Standards: AB1953, ASME B1.20.1, ASME B16.15, ASTM B62, NSF/ANSI 61
- Efficient Size Reduction: Eliminates the need for a separate reducer bushing and a standard elbow, saving space and reducing the number of potential leak points.
- Lead-Free Reliability: Meets stringent low-lead requirements for water safety and compliance in all 50 states.
- Corrosion Resistance: Specially formulated brass resists the aggressive nature of car wash soaps and reclaim water.
- Compact Right-Angle Turn: Perfect for tight installations inside Detergent PODs or behind the FLOPRO panel where space is at a premium.
- Precision NPT Threads: High-quality threads ensure a tight, permanent seal when used with professional-grade pipe sealant or PTFE tape.
