Bay Washdown Gun with Overhead Trolley Wire System
This bay washdown gun and trolley system is used in the wash tunnel at the wash site. This proprietary overhead trolley system makes the cleaning and bay washdown process infinitely smoother and safer than standard washdown hoses that are placed over the conveyor belt or around other wash equipment. By having an overhead trolley system, the employee utilizing the washdown gun is much safer since the hose providing the water to the washdown gun is not being dragged over or in direct contact with dangerous wash equipment. This system makes the washdown process much more flexible and efficient by not taking time to rearrange where the hose is, but instead being mounted onto a highly responsive festoon system. Simply move around the wash tunnel with the washdown gun and the hose will follow along the wire system overhead. This system is meant for one side of the wash tunnel. Removing tripping hazards, increasing employee safety, and improving efficiency in the bay washdown process are just a few of the benefits of equipping your wash site with the Tommy Car Wash Systems overhead trolley system and washdown gun. Mounting hardware is included in this system.
- Wire Size: 1/4"
- Washdown Hose Size: 3/8"
- Wire and Hose Lengths: 100'
- Wire Material: Galvanized Steel
- Washdown Hose Material: Rubber Hose with Braided Steel

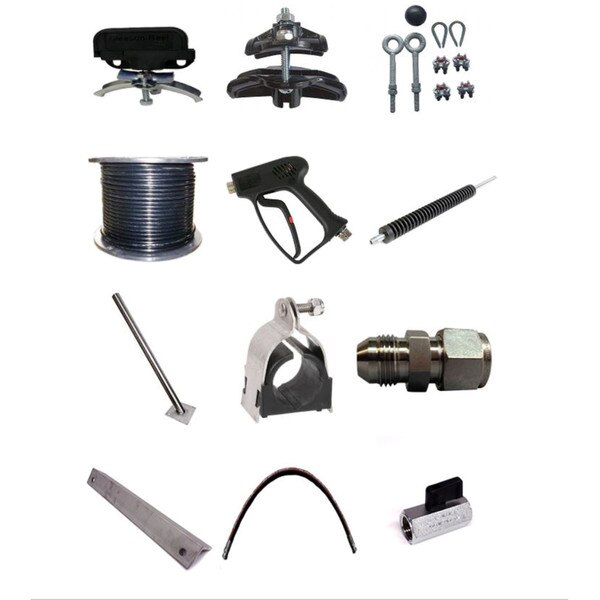

Bay Washdown Gun and Trolley System Includes:
- (20) Festoon Cable Carrier Trolleys (P-SE-2127)
- (2) 1/4" Large Round End Clamps (P-SE-2136)
- (1) 1/4" Wire Hardware Kit (P-SE-2137)
- (1) 100' Roll of 1/4" Steel Cable (P-SE-2165)
- (1) Prep Gun Trigger (P-WAT-2037)
- (1) 18" Prep Gun Wand (P-SE-PG-208)
- (1) 3/8" Male NPT X 3/8" Quick Connect Brass Fitting (P-SE-PG-206)
- (1) 3/8" Female NPT X 3/8" Quick Connect Brass Fitting (P-WAT-2559)
- (1) 1/4" Stainless Prep Gun Spray Nozzle (P-SE-PG-209)
- (1) Prep Gun Spray Nozzle Protector (P-SE-PG-210)
- (1) 1/2" Compression X 3/8" Female NPT Stainless Adapter (P-WAT-2228)
- (1) Prep Gun Stand (P-SE-PG-227)
- (5) 1/2" Stainless Compression Unions (P-HYD-2081)
- (1) 100' Roll of 3/8" High Pressure Hosing with Fittings (P-WAT-2585)
- (4) 1/2" Compression X 1/2" Male JIC Stainless Fittings (P-HYD-2020)
- (1) 1/2" Stainless Compression Tee (P-WAT-2373)
- (15) 1/2" Stainless Cush-a-Clamps (P-HYD-2104)
- (1) 66" Long 1/2" Hose with Female JIC Ends (P-WAT-2631)
- (2) 30" Mounting Brackets (P-SE-1008)
- (2) 16" Mounting Brackets (P-SE-1007)
- (1) 3/8" Stainless Close Nipple 1" Long (P-WAT-2107)
- (2) 1/2" Male NPT X 1/2" Compression Stainless Adapter (P-WAT-2337)
- (2) 1/2" Male NPT X 1/2" Male JIC Stainless Adapter (P-HYD-2068)
- (2) 1/2" Female NPT X 1/2" Female Ball Valve Stainless Fitting (P-WAT-2587)
- (2) 3/8" Reusable Socket with Male NPT Nipple (P-WAT-2761)
- (2) 1/2" Stainless Compression Union 90 Degree Elbows (P-WAT-2664)
- 1/2" Stainless Mounting Hardware
- 5/16" Stainless Nuts and Washers
