1" MNPT x 1" Hose Barb PVC Fitting
Designed for connecting 1" hoses to male NPT connections in various indoor and outdoor water applications, including pump stations and water tanks

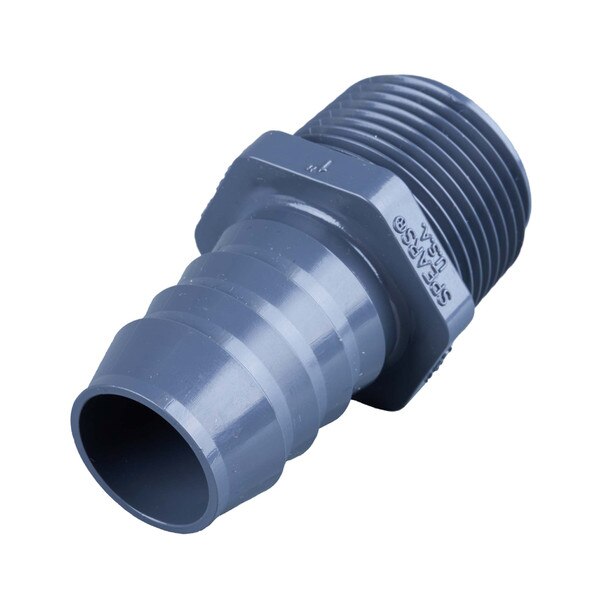

The 1" PVC Hose Barb Fitting is a versatile and essential component for fluid handling systems, specifically designed for connecting 1" hoses to 1" male NPT (National Pipe Taper) threaded connections. This fitting is crafted from Schedule 40 PVC (Polyvinyl Chloride), known for its durability, corrosion resistance, and suitability for water applications. Its gray color indicates its use with standard PVC piping systems.
This fitting is widely used in various water-related applications, including within All-In-One Pump Stations, Tommy RO Systems, 400 Gallon RO Water Tanks, and 400 Gallon Reject Water Tanks. Its robust construction allows for a maximum operating pressure of 200 PSI and an operating temperature range of 32°F to 140°F (0°C to 60°C), making it suitable for both indoor and outdoor water environments.

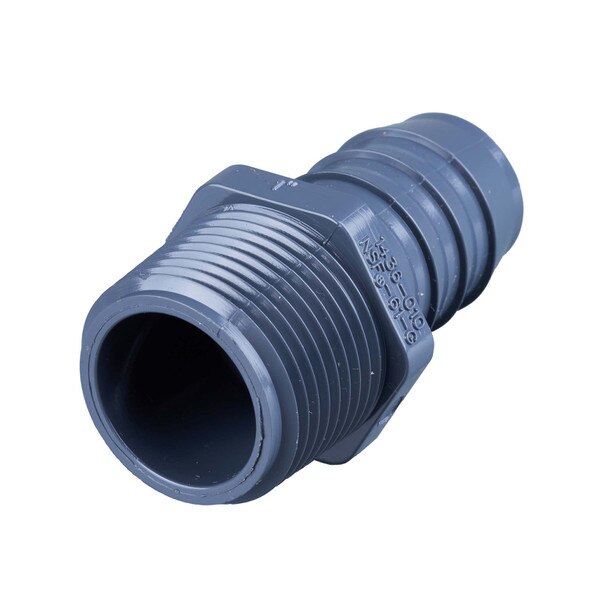

The 1" Male NPT end ensures a secure, tapered thread connection to female NPT ports, creating a leak-resistant seal. The 1" Hose Barb end features raised ridges that provide a strong grip for the inside diameter of a 1" hose, typically secured with a hose clamp. With compact dimensions of approximately 3" X 1-3/8", this fitting is designed for efficient space utilization while providing reliable fluid transfer.
- Product Type: Hose Barb Fitting
- End 1 Connection: 1" Male NPT (National Pipe Taper)
- End 2 Connection: 1" Hose Barb
- Material: PVC (Polyvinyl Chloride)
- Schedule: Schedule 40
- Maximum Operating Pressure: 200 PSI
- Operating Temperature Range: 32°F to 140°F (0°C to 60°C)
- Color: Gray
- Dimensions (Approximate): 3" (Length) x 1-3/8" (Diameter/Width)
- Dual Connection Type: Combines a 1" Male NPT thread with a 1" hose barb for versatile connections.
- Durable PVC Construction: Made from Schedule 40 PVC for excellent corrosion resistance and longevity.
- High Pressure Rating: Capable of handling up to 200 PSI, suitable for various water pressures.
- Wide Temperature Range: Effective in temperatures from freezing to 140°F.
- Versatile Applications: Ideal for connecting hoses in pump stations, water tanks, and general indoor/outdoor water systems.
- Easy Installation: Designed for straightforward connection to hoses and threaded ports.
