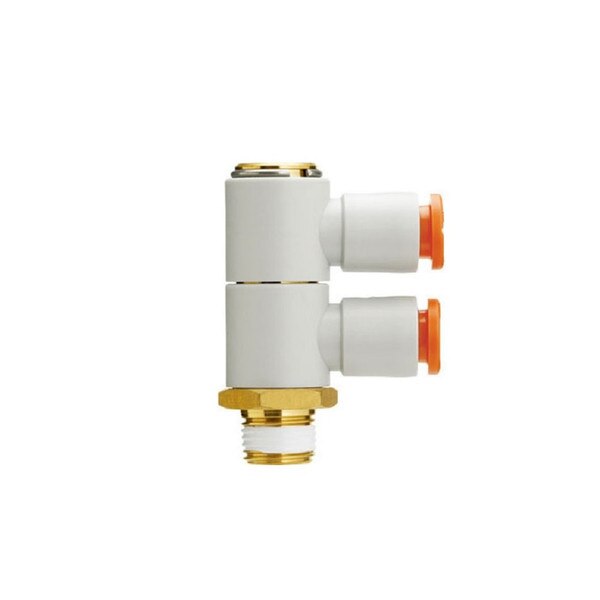

1/2" Tube x 1/2" MNPT Double Universal Male Elbow (SMC KQ2 Series)

The SMC KQ2 Series one-touch fittings are renowned for their wide range of applications, simple installation, and robust construction, making them a standard for pneumatic and low-vacuum systems. This Double Universal Male Elbow allows for reliable connection between standard pipe threads and pneumatic tubing.

The "one-touch" design simplifies assembly; tubing can be easily inserted without tools and removed by depressing the release collar. The fitting's design ensures a low disconnection force, preventing damage to the tube material.

Key features and benefits include:

• Connection Versatility: Connects 1/2 inch tubing via two one-touch ports to a 1/2 inch Male NPT threaded port. The universal design allows for flexible routing.
• Swivel Capability: The stud allows the main body to rotate, which simplifies installation and ensures precise positioning even in tight or confined spaces.
• Wide Pressure Range: Suitable for a broad range of applications, from low vacuum (up to -14.5 psi) up to a maximum pressure of 145 psi (1 MPa).
• Durable Material: Constructed with materials (including PBT) that accept nylon and polyurethane tubing materials.
• Tommy Car Wash Application: Used specifically in the reclaim feed assembly, providing a dependable connection point in the water reclamation system.
