Harmony RM17TE00 Multi-Function 3-Phase Supply Control Relay (208-480 VAC)

(0)No Reviews yet
$170.00
SKU: CCS-RM17TU00

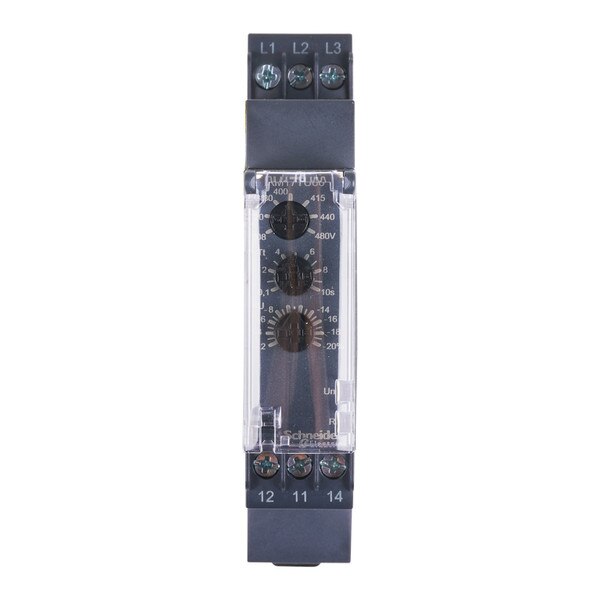

The RM17TE00 is a sophisticated Harmony Control Relay designed for comprehensive monitoring of 3-phase power supplies. This multi-function control relay provides critical protection for motors and other sensitive equipment by detecting various fault conditions, including undervoltage and overvoltage (in window mode), asymmetry, phase sequence, and phase failure.


Housed in a durable, self-extinguishing plastic housing, the relay features a single changeover output contact (1 C/O or SPDT) with a nominal current rating of 5 A (AC/DC) and a switching capacity of 1250 VA. Its wide measurement range of 208 to 480 VAC makes it suitable for diverse industrial applications. The relay offers simple and accurate adjustments for parameters like time delay (0.1-10s) and voltage thresholds, ensuring quick and easy setup.


It's designed for 35 mm symmetrical DIN rail mounting and includes local LED indicators for power (green) and relay status (yellow). The RM17TE00 is a self-powered unit and comes with various certifications including UL, CSA, and CE marking, affirming its compliance with global standards.

  • Relay Name: RM17TE
  • Product Type: Multi-function control relay, 3-phase control relay
  • Range of Product: Harmony Control Relays
  • Monitored Parameters: Undervoltage/Overvoltage (window mode), Asymmetry, Phase Sequence, Phase Failure
  • Measurement Range (Control Circuit Voltage): 208...480 V AC (self-powered)
  • Supply Voltage Limits: 183…528 V AC
  • Output Contacts: 1 Changeover (C/O)
  • Nominal Output Current: 5 A (AC/DC max)
  • Maximum Switching Voltage: 250 V AC / 250 V DC
  • Switching Capacity: 1250 VA
  • Minimum Switching Current: 10 mA at 5 V DC
  • Reset Time: 1500 ms
  • Time Delay: Adjustable 0.1...10 s (+/- 10% of full scale) upon fault (Tt)
  • Delay at Power Up: 650 ms
  • Housing Material: Self-extinguishing plastic
  • Rated Insulation Voltage (Ui): 400 V (IEC 60664-1)
  • Insulation Resistance: > 500 MΩ at 500 V DC
  • Connections: Screw terminals (various wire sizes supported: solid AWG 20-11, flexible AWG 24-12)
  • Tightening Torque: 0.6…1 N.m (5.3…8.9 lbf.in)
  • Local Signalling: Green LED (power ON), Yellow LED (relay ON)
  • Mounting Support: 35 mm symmetrical DIN rail (IEC 60715)
  • Electrical Durability: 100,000 cycles
  • Mechanical Durability: 30,000,000 cycles
  • Operating Rate: <= 360 operations/hour at full load
  • Operating Temperature: -4°F to 122°F (-20°C to 50°C)
  • Storage Temperature: -40°F to 158°F (-40°C to 70°C)
  • IP Degree of Protection: IP20 (terminals), IP30 (casing)
  • Dimensions (Approximate): 3.54 in H x 0.69 in W x 2.84 in D (90mm H x 17.5mm W x 72mm D)
  • Net Weight: 0.29 lb (0.13 kg)

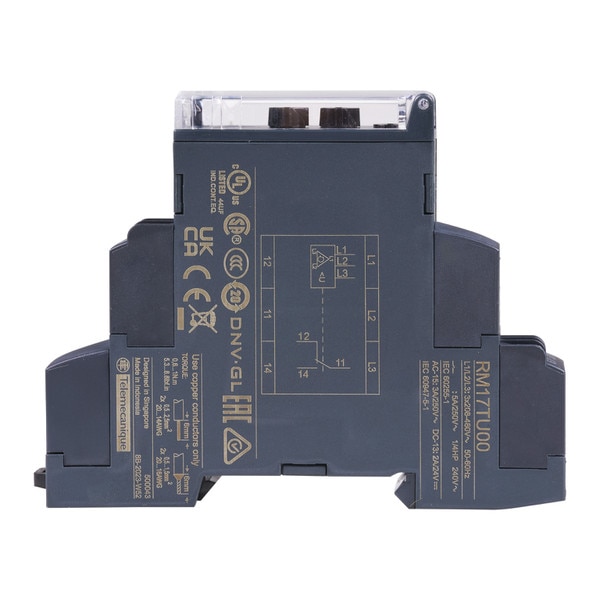

  • Certifications: UL, CSA, C-tick, GOST, GL, CE
  • Country of Origin: US
  • Comprehensive 3-Phase Monitoring: Detects Undervoltage, Overvoltage, Asymmetry, Phase Sequence, and Phase Failure for complete equipment protection.
  • Wide Voltage Range: Compatible with 3-phase supply systems from 208V to 480V AC.
  • Flexible Output: Features a single changeover contact (SPDT) for versatile control applications.

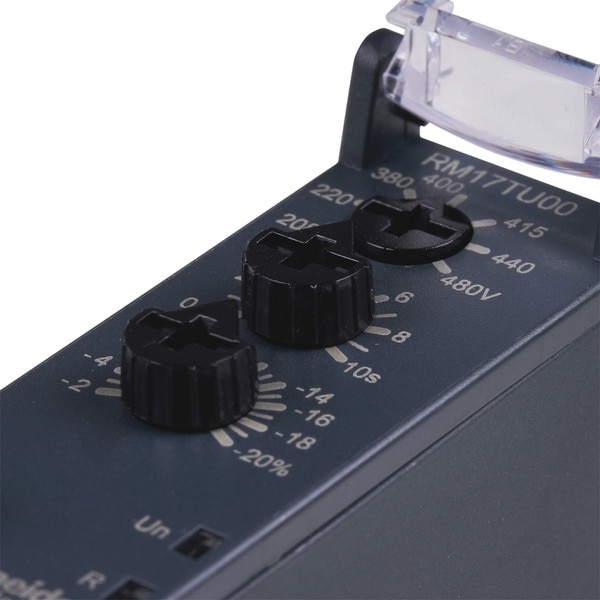

  • Adjustable Parameters: Easily set time delays, voltage thresholds, and asymmetry for precise control.
  • Durable Construction: Self-extinguishing plastic housing and robust design for long-term reliability in industrial environments.
  • Easy Installation: Designed for standard 35mm DIN rail mounting with convenient screw terminals.
  • Visual Status Indicators: Green LED for power ON and yellow LED for relay ON provide clear operational status.
  • Global Certifications: UL, CSA, CE, and other international approvals ensure compliance and safety.
