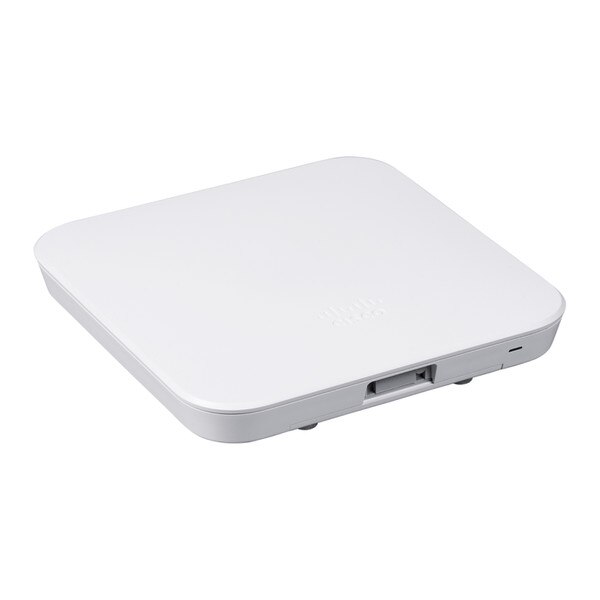

Meraki MG21 Wireless Cellular Gateway/Modem
Cellular gateway used in the Systems Integration Cabinet (SIC) in the Flight Deck area of the wash site. This acts as a gateway to cellular networks by converting LTE signal from a cellular provider to an Ethernet handoff, which can be used as an internet uplink for a variety of use-cases. It can provide a simple and viable option for wireless WAN connectivity. This Cat 6 cellular modem is used for high-performance cellular for both indoor and outdoor environments with integrated antennas. This gateway has a multi-surface mounting bracket for multiple mounting options.
- Transmission Data Speed: 300 Mbps
- Number of GpE Ports: 2
- Voltage Rating: 12V, 48-57VDC
- Amperage Rating: 1A, 0.35A
- Power Rating: 10W
- Operating Temp. Range: -22F-122F
- Dimensions: 6-3/8" X 6-3/8" X 1-3/8"
- IP67 Rated
- Can be Used for Primary or Backup Connectivity
- Indoor or Outdoor Environment Use
- Sleek, Low Profile
- Nano SIM Card Slot
- Two GbE Ports

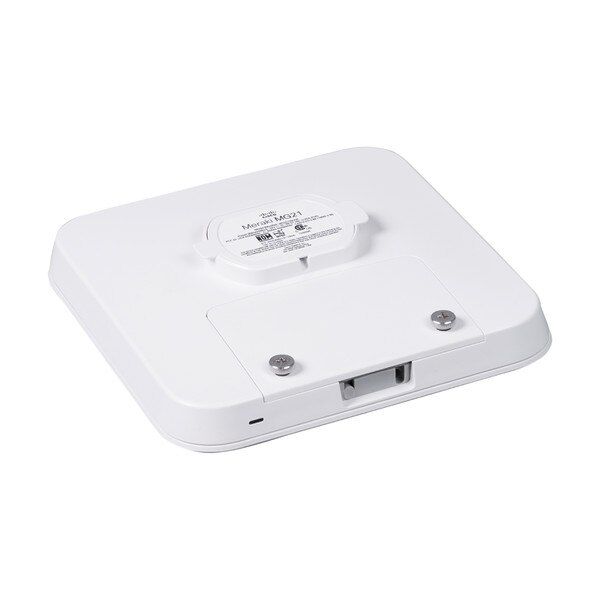

- Multi-Surface Mounting Bracket for Walls, Ceilings, or Poles
