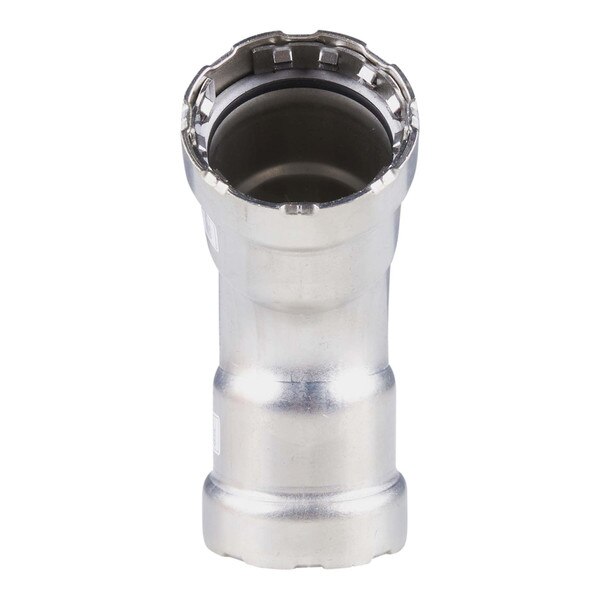

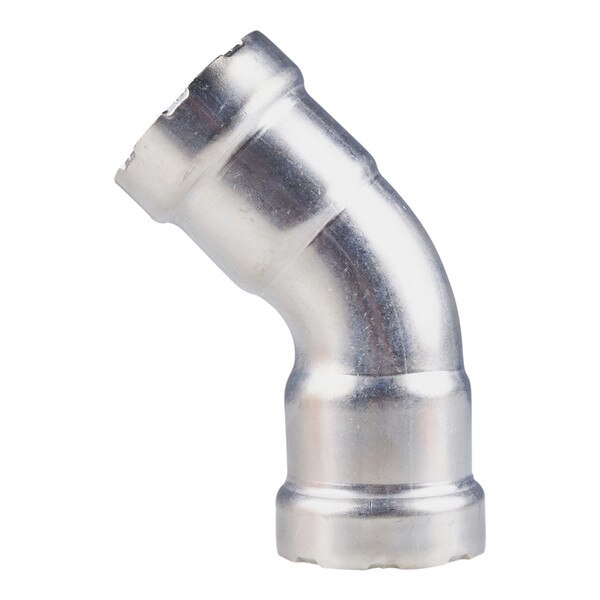

Viega 1-1/2" MegaPress 45 Degree Elbow

The Viega 1-1/2" MegaPress 45 Degree Elbow, identified by Item #95070 (Model 4126), is a high-performance fitting engineered to create precise 45-degree directional changes in stainless steel piping systems. This elbow is specifically designed for 1-1/2 inch nominal pipe sizes and is an ideal component for robust fluid transfer in various commercial and industrial applications, including critical systems within a car wash tunnel, such as the Ladder Rack system.

Constructed from 304 Stainless Steel, this MegaPress fitting provides exceptional resistance to corrosion, high temperatures, and the demanding conditions found in operational environments. It integrates a versatile FKM (Fluoroelastomer) sealing element along with a 420 stainless steel grip ring and a 304 stainless steel separator ring. This combination ensures a highly reliable, leak-proof connection that can withstand significant pressures and temperatures. The system is compatible with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe, forming a complete press system suitable for transporting a wide range of essential fluids and gases like process water, diesel fuel, lube oil, ammonia, and low-pressure steam.

A key advantage of this Viega MegaPress elbow is its patented Smart Connect® technology, which allows for a secure connection in less than 7 seconds. This feature eliminates the need for welding, grinding, heavy equipment, threading, fire watches, hot work permits, or gas freezing, significantly simplifying and accelerating the installation process. It also supports wet connections, minimizing system downtime and enhancing flexibility during maintenance. The fitting is rated for a maximum operating pressure of 200 psi and an operating temperature range of 0°F to 250°F.
