Ladder Rack Attachment Clamp

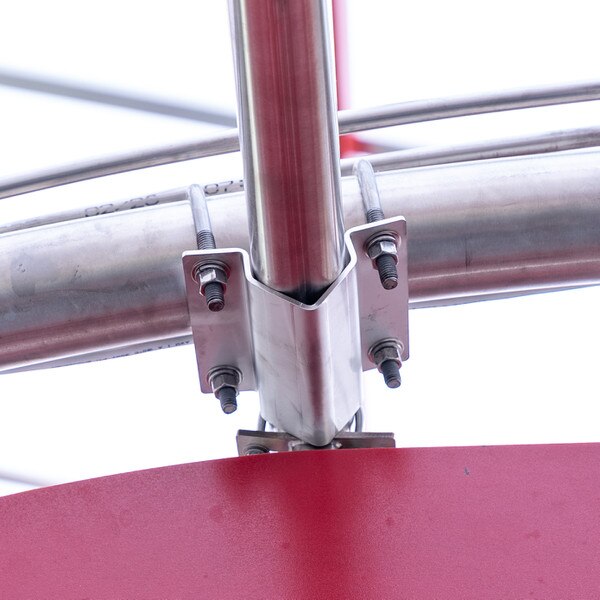

This attachment clamp is used in the Ladder Rack system in the wash tunnel. The clamp mounts the arches to the 1-1/2" diameter ladder rack tubing. The clamp has a 2-1/8" inside width and a 4-7/8" outside width while being 4-1/2" long. There are four mounting holes measuring 3/8" in diameter. The clamp is made of stainless steel material and is 1/8" thick.
- Inside Width: 2-1/8"
- Outside Width: 4-7/8"
- Length: 4-1/2"
- Thickness: 1/8"
- Mounting Hole Diameter: 3/8" (4X)
- Material: Stainless Steel
- Grade: 304
