High Pressure Rinse Arch - Top Pivoting and Oscillating

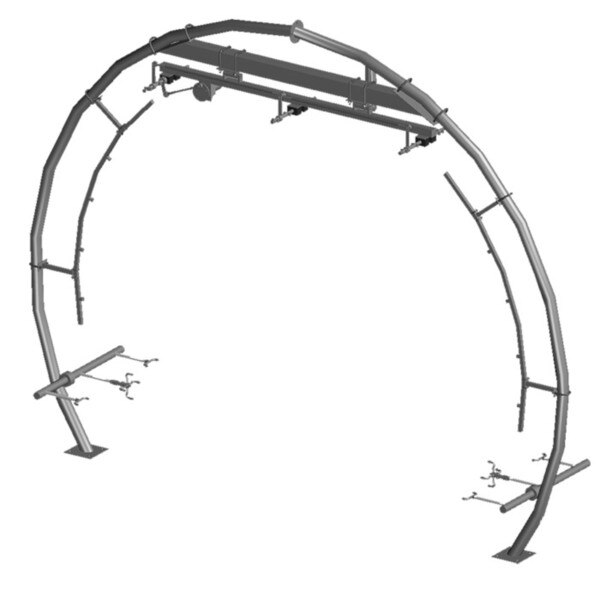

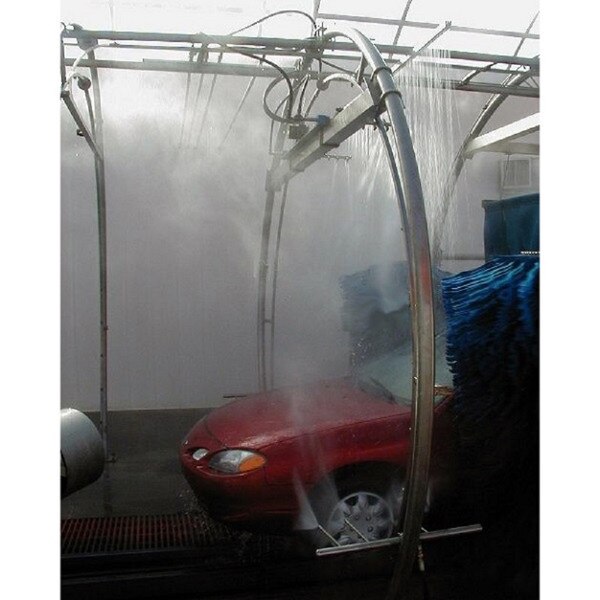

Our High Pressure Rinse Arch delivers powerful high pressure water (Fresh or Reclaim) for customer car cleaning. The arch may be used as a pre-wash to remove caked mud at the beginning of the wash and as a high pressure rinse to remove detergents as cars pass from the cleaning to sealing / drying phase. High pressure arch constructed of 100% stainless steel and includes a Top Manifold with both pivoting and oscillating functionality for superior performance, Stationary Side Manifolds. and 4-Stage Rocker Panel Blasters. Mosmatic spinner is available as an optional upgrade (call for details).
- Pivoting, oscillating, and fixed high pressure nozzles.
Nozzle | Spray Angle | Compacity | Compacity (gpm) | ||
600psi | 800psi | 1000psi | |||
|
|
|
|
|
|
0002 | 0 | 02 | 0.77 | 0.89 | 1.0 |
0003 | 0 | 03 | 1.2 | 1.4 | 1.5 |
0004 | 0 | 04 | 1.6 | 1.8 | 2.0 |
0005 | 0 | 05 | 1.9 | 2.2 | 2.5 |
0504 | 5 | 04 | 1.6 | 1.8 | 2.0 |
2505 | 25 | 05 | 1.9 | 2.2 | 2.5 |
4005 | 40 | 05 | 1.9 | 2.2 | 2.5 |
4010 | 40 | 10 | 3.9 | 4.5 | 10 |
4015 | 40 | 15 | 5.8 | 6.7 | 7.5 |
H25 – 20 gpm Nozzles: Unit or side
Qty : 18 | GPM : 1.1 | Spec : 2505
H25 – 20 gpm Nozzles: Top
Qty : 16 | GPM : 1.25 | Spec : 0504
D35 – 30 gpm Nozzles: Unit or Side
Qty : 18 | GPM : 1.7 | Spec : 2505
D35 – 30 gpm Nozzles: Top
Qty : 16 | GPM : 1.9 | Spec : 0504
Qty : 18 | GPM : 1.1 | Spec : 2505
H25 – 20 gpm Nozzles: Top
Qty : 16 | GPM : 1.25 | Spec : 0504
D35 – 30 gpm Nozzles: Unit or Side
Qty : 18 | GPM : 1.7 | Spec : 2505
D35 – 30 gpm Nozzles: Top
Qty : 16 | GPM : 1.9 | Spec : 0504
