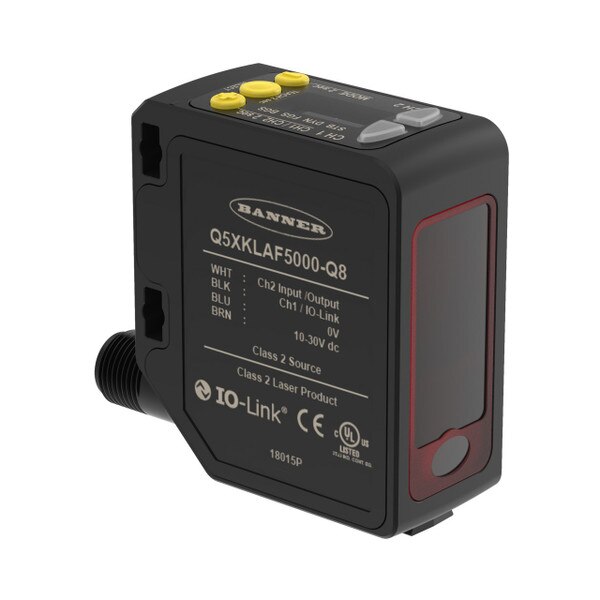

Banner Q5XKLAF5000-Q8 807731 High-Power Laser Distance Sensor
All closeout items are final sale and returns or warranty claims will not be accepted. Please contact Client Services at (616) 795-4893 with any questions.
The Banner Q5X Series (Part # 807731) is a high-performance, multi-purpose laser sensor designed to solve the toughest sensing applications where standard sensors fail. With a versatile 5-meter range and advanced background suppression, it excels at detecting "problem" targets—including jet-black objects, shiny metal, and clear materials—even when positioned at acute angles.
This model features a 270° rotatable M12 connector, allowing for easy installation in tight spaces without the need for complex mounting hardware.
*All closeout items are final sale and returns or warranty claims will not be accepted. Please contact Client Services at (616) 795-4893 with any questions.
- Range: 50-5,000 mm
- Input Voltage: 10-30 VDC
- Output: 1 PNP/NPN with IO-Link; 1 PNP/NPN Multi-Function I/O
- Connector Size: 4-Pin M12 Rotatable QD
- IP Rating: IP67
- NEMA Rating: NEMA 4X
- Exceptional Range: Reliable sensing from 50 mm to 5000 mm (5 meters).
- Target Versatility: High excess gain allows the sensor to "see" dark objects (<0.1% reflective black), clear glass, and multicolor packaging.
- Dual Output & IO-Link: Equipped with two independent discrete outputs (NPN/PNP) and IO-Link capability for remote monitoring and simplified configuration.
- Dual Teach Mode: Measures both distance and light intensity simultaneously for superior error-proofing and contrast detection.
- Rugged & Compact: Rated IP67 for wet environments and housed in a durable ABS rectangular body.
- User-Friendly Interface: Includes an onboard 4-digit display and push-button programming for instant real-time feedback.
