All in One Pump Station Grundfos High Pressure Booster Pump 7.5HP

(0)No Reviews yet
$9,000.00 to $10,371.60

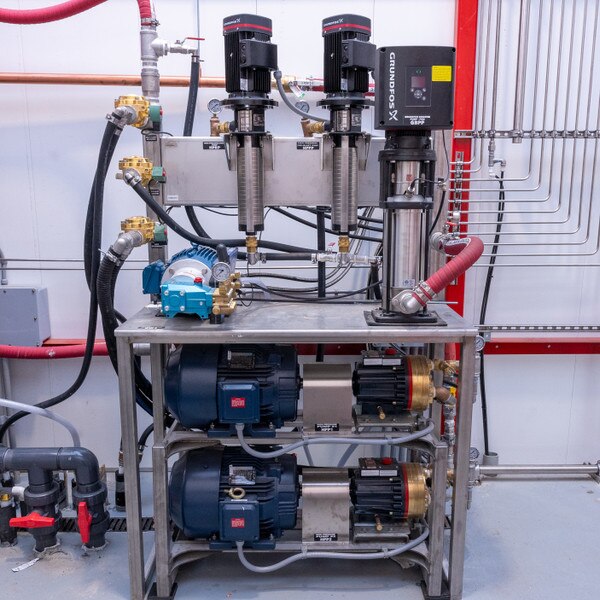

This Grundfos booster pump is used on the All-In-One Pump Station installed in the backroom of the wash site. This pump powers water to both the Detergent and Maintenance POD's in the wash tunnel. This vertical multistage centrifugal pump has a power rating of 7.5 HP and voltage rating of 208/480 VAC. It has 2" diameter inlet and outlet ports for the water to flow through and is mounted to the pump station with 1/2" diameter screws. This pump has a flow rate of 53.3 GPM and 10 stages with 10 stainless steel impellers. There is an onboard VFD and pressure transducer built into the pump to power and maintain the water pressure.
  • Connection Size: 2"
  • Power Rating: 7.5 HP
  • Voltage Rating: 208/480 VAC
  • Amperage Rating: 19/10 A
  • Frequency: 60 Hz
  • Flow Rate: 53.3 GPM
  • Max Operating Pressure: 232 PSI
  • Rated Speed: 360-4,000 RPM
  • # of Stages/Impellers: 10
  • Service Factor: 1.15
  • Efficiency: 92.4%
  • Shaft Seal Code: HQQE
  • Base/Impeller Material: Stainless Steel
  • Pump, Motor, and VFD All in One Unit
  • Totally Enclosed Fan Cooled Motor Enclosure
  • Vertical Multistage Centrifugal Pump
  • Corrosion Resistant
  • Single Shaft Seal Arrangement
  • IP55 Protection
  • Class F Insulation
