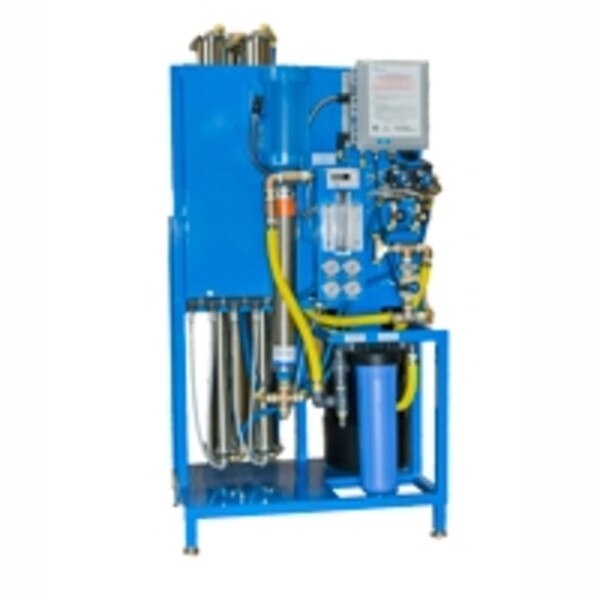

GPD Purclean E3 Spot Free Rinse System
Hailed for their innovative solutions to water reuse and waste reduction, Purclean is a perfect fit for high end, environmentally conscious car washes. Purclean RO systems effectively and efficiently remove hardness and impurities from fresh water, providing an extremely clean source for final rinsing that dramatically reduces spotting for a better car wash result.
- Specifications: 15,000 / 18,000 / 25,000 GPD Spot Free Rinse System Stand Mount (RO)
- Water Requirements: (2) 1.25" Water line w/ FPT ball valves, 40 GPM at 30 PSI. Mount 4 feet up from floor to the right of the spot free rinse system and (1) drain.
- Electrical Requirements: 3Ph (1) 208 or 480 20 amp circuit, put circuit 5 feet up from the floor to the right of the spot-free rinse system
- RO Output: Production - 10.4 GPM / 6.9 GPM / 5.6 GPM / 4.2 GPM / 2.8 GPM
- Reject: 4.2 GPM, 2.1 GPM Out of each reject flow meter / (2.3 GPM from single meter for 4500 GPD unit)
- RO Motor: 5 HP booster pump / 3 HP booster pump / 3 HP booster pump / 3 HP booster pump / 1.5 HP booster pump
- RO Motor Amps: 3Ph 208 = 12.4 amps / 3Ph 480 = 6.2 amps
- Dimensions:
36" Wide X 92" Tall X 24" Deep
36" Wide X 92" Tall X 24" Deep
36" Wide X 92" Tall X 24" Deep
36" Wide X 74" Tall X 24" Deep
30" Wide X 77" Tall X 24" Deep - Net Weight: 1100 /900 / 900 / 700 / 700 Lbs.
- Delivery Pump: Standard delivery pump 15 GPM max at 50 PSI max. Automatic freshwater bypass pressure and GPM varies depending on which car wash application.
Purclean Reverse Osmosis Systems available from Tommy Car Wash Systems include:
- Stainless Steel Frame Upgrade
- 2 HP Pump Upgrade
- Water Stabilizer (replace-softener)
- Inlet and Pressure Pump
- Carbon Tank with Auto Back Flushing Head
- Multi-Stage Pressure Pump
- Low Pressure Shut Off
- Automatic Membrane Flush
- Production and Reject Meters
- On Board TD-Meter
- Repressurization and / or Reject Recapture Pump
- Thin Film Membrane
- Hinged Control Box - Quick and Easy Internal Access
- ETL Listed
