Round Body Air Cylinder Stainless Foot Bracket - 3/4" and 1-1/16" Bore

(0)No Reviews yet
SKU: P-S-0120

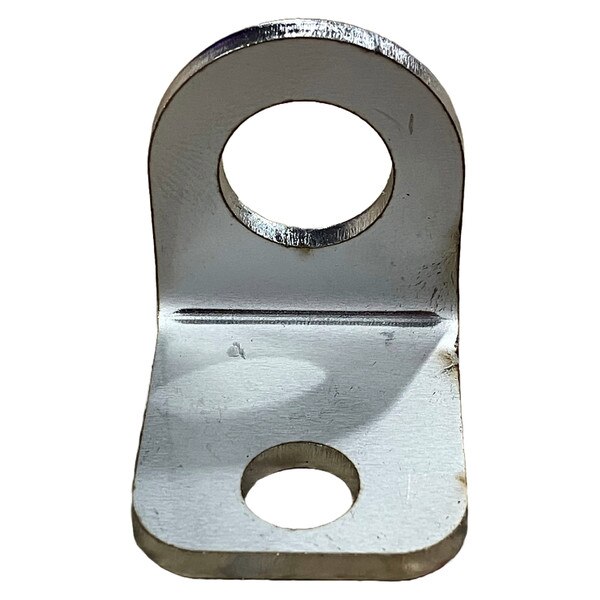

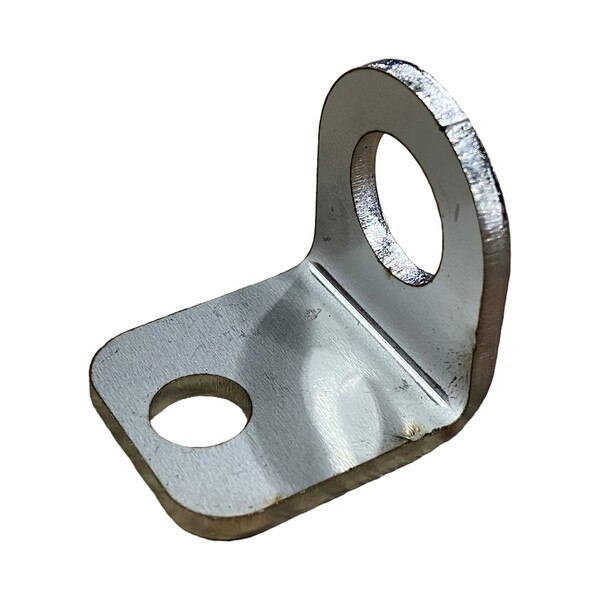

This foot bracket is used on the Tommy 2.0 Blower Blast Gates in the drying room of the wash tunnel. The bracket installs on the blast gate rotation plate and holds the round body air cylinder in place from the opposite end of the bore. The bracket has a 3/8" mounting hole side that attaches to the rotation place and a 5/8" mounting hole side that attaches to the air cylinder. These foot brackets are made of stainless steel material and are 1/8" thick with a 90-degree angle design. The 3/8" hole side is 1-1/4" long and the 5/8" hole side is 1-3/8" long.

  • Plate Mounting Hole Diameter: 3/8"
  • Cylinder Mounting Hole Diameter: 5/8"
  • Plate Side Length: 1-1/4" Long
  • Cylinder Side Length: 1-3/8" Long
  • Width: 1-1/8"
  • Thickness: 1/8"
  • Angle Design: 90-Degrees
  • Material: Stainless Steel
