Rinnai Tankless Rack Hot Water System

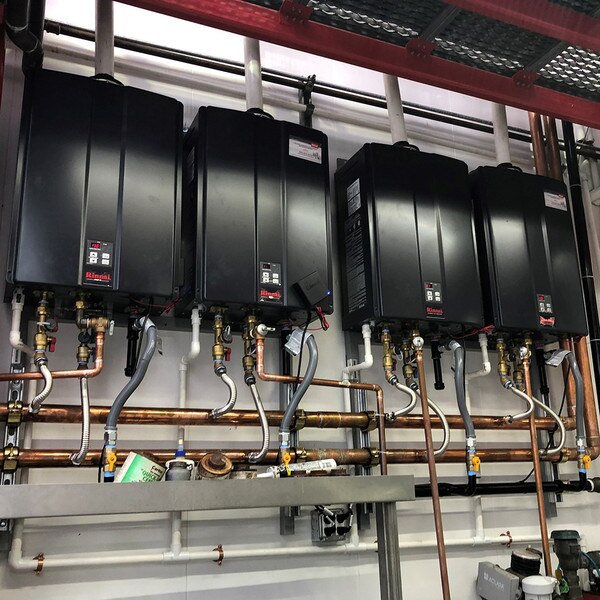

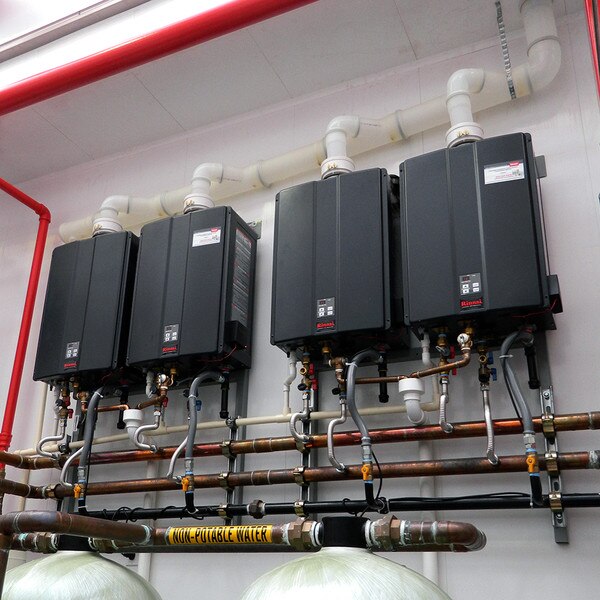

This Rinnai Tankless Rack Hot Water System is used in the backroom of the wash site. This system is designed as a fully-assembled, comprehensive water heating solution for commercial applications. The tankless rack system includes preassembled connections for water and gas, as well as properly sized manifolds mounted beneath each tankless water heater to maintain optimum performance. Innovative tankless technology provides an endless supply of hot water for all your car washing needs. This system comes in a 398,000 BTU option and a 796,000 BTU option.
- Hot and Cold Water Connection Size: 2" Pipe
- Gas Connection Size: 1-1/4" Male NPT
- Gas Type: Natural Gas
- Voltage: 120 VAC
- Frequency: 60 Hz
- Current Rating: 8 A
- BTU Options: 398,000 and 796,000
- Flow Rate: 10.8 GPM @70F, 7.6 GPM @100F
- Efficiency: 96%
- Max Operating Tem
- Hot and Cold Water Connection Material: Copper
- Gas Connection Material: Steel
- Frame Material: Powder Coated Aluminum
- Wall Hanging or Free Standing Hot Water System
- Natural Gas
- Condesing Heating Technology
- Improved Fuel Efficiency
- Configured with Individual, Concentric Venting, or Common Venting for Indoor Usage
- Includes Electronic Controls
- Pre-Assembled and Shipped Complete for Immediate Installation
- Fits Through Standard 32" Doorways with Water Heaters Attached
