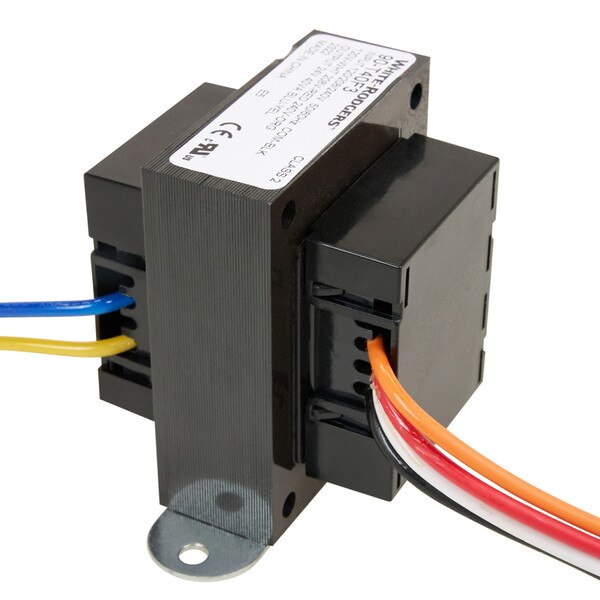

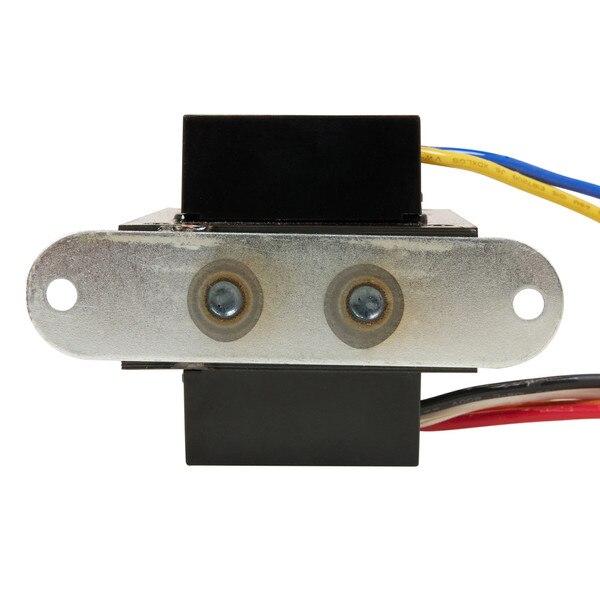

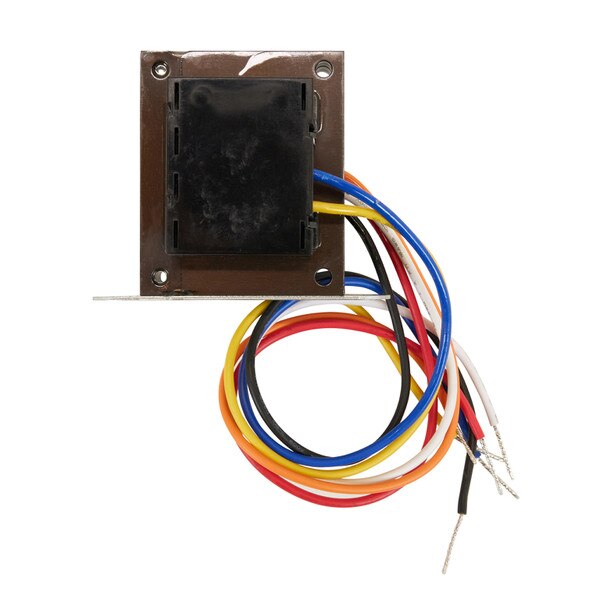

Vending Transformer, 120/208/240 Input, 24VAC Output

(0) No Reviews yet
$21.82
SKU: E-SE-2032
Vending Transformer, 120/208/240 Input, 24VAC Output
Class 2 Transformer, 40 VA Rating, 120/208/240VAC Input Voltage, 24VAC Output Voltage - for use with vending equipment.
  • Item : Class 2 Transformer
  • VA Rating : 40
  • Input Voltage : 120/208/240VAC
  • Output Voltage : 24VAC
  • Mounting : Foot
  • Protective Device : Thermal Circuit Breaker
  • Primary Connection : Wire Leads
  • Secondary Connection : Screw Terminals
  • Phase : 1
  • Hz : 50/60
  • Temp. Rise : 65 Degrees C
  • Enclosure Type : Frame
  • Enclosure Rating : Not Rated
  • Enclosure Finish : No Finish
  • Height : 2.2"
  • Depth : 2.10"
  • Width : 3.70"
  • StandardscURus, UL File Number E181503
  • Includes : 2A 130 Degrees C 250VAC Primary Thermal Breaker
http://shop.tommycarwash.com/site/PDF-AUTO/E-SE-2032.pdf
