Double Stack High Pressure Pump Station 2X20 GPM Pumps

(0)No Reviews yet
SKU: E-SE-2075-A

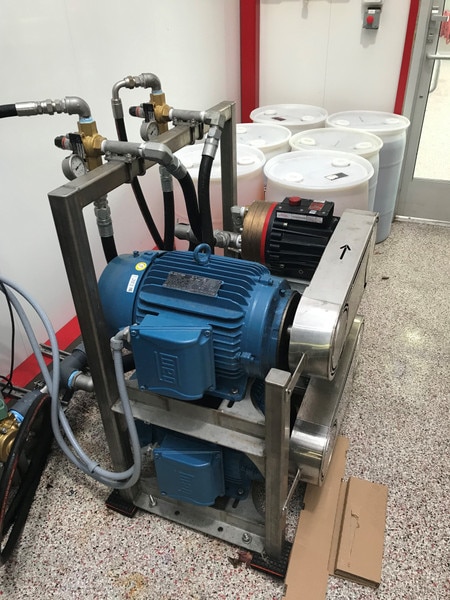

This double stack pump station is used to run the two Triple Threat manifolds in the wash. This station is constructed with two pumps. One pump supplies the driver side and the other pump supplies the passenger side applications. This pump station is tankless and will be located in the backroom to supply pressure to the two manifolds. This pump station assembly includes everything needed to run the Triple Threat application successfully. Belt guide covers not included.
  • Horsepower: 15 HP
  • Phase: 3 Phase
  • Voltage: 208/480 VAC
  • Amperage: 40/20
  • Flow Rate: 20 GPM
  • Inlet Size: 2"
  • Outlet Size: 3/4"
  • Weight: 320 lbs.
  • Dimensions: 38" X 24" 48"
  • Warranty: 1 Year
