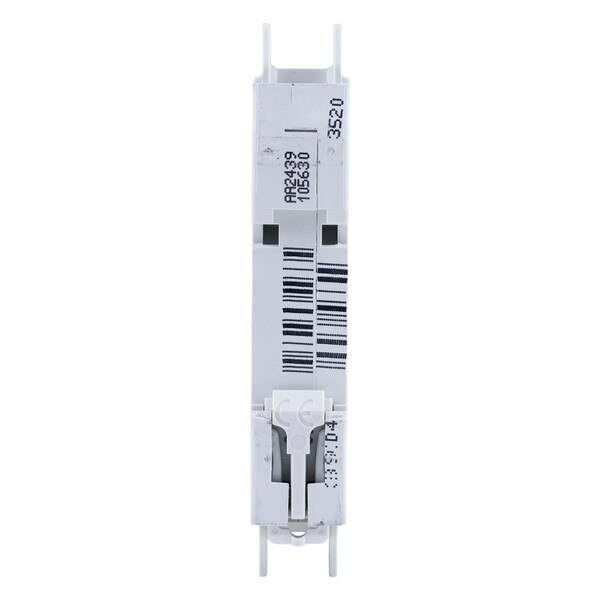

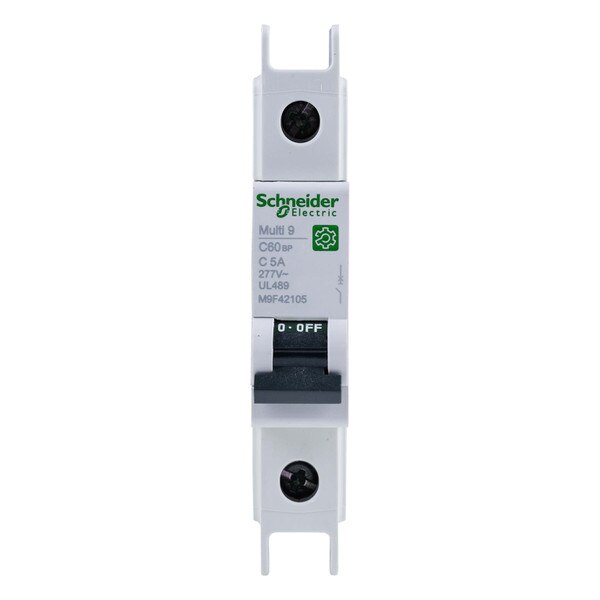

M9F42105 Miniature Circuit Breaker, Multi9 C60BP, 1P, 5A
The M9F42105 Miniature Circuit Breaker (MCB), identified by Manufacturer Part Number (MPN) M9F42105, is a low-voltage protection device from the Schneider Electric Multi9 C60BP series. This 1-pole circuit breaker with 1 protected pole is designed for a variety of electrical applications, providing enhanced protection for both personnel and equipment by mitigating electrical threats such as short circuits and overloads. It also helps optimize energy consumption and improve life-cycle asset management.
This MCB has a current rating of 5 Amperes and features a C tripping curve (thermal-magnetic technology), making it suitable for general-purpose protection in circuits with moderate inrush currents. It is compatible with both AC and DC network types.
The CCS-M9F42105 boasts significant breaking capacities:
- UL 489 / CSA C22.2 No 5:
- 10 kA AIR at 277 V AC
- 14 kA AIR at 240 V AC
- 14 kA AIR at 120 V AC
- 10 kA AIR at 60 V DC
EN/IEC 60947-2 / GB 14048.2 (Icu):
- 3 kA at 415 V AC
- 10 kA at 240 V AC
- 20 kA at 60 V DC
Its rated service breaking capacities (Ics) are robust, typically 75% of Icu for AC and 75% for DC, ensuring reliable reclosing after fault clearance.
Designed for ease of installation, this MCB can be clipped onto a DIN rail and has a narrow width of 2 pitches (18mm). It offers an electrical endurance of 10,000 cycles and a mechanical endurance of 20,000 cycles. The operational voltage is 240VAC or 415VAC (AC) and 60VDC (DC), with a rated insulation voltage of 500VAC and an impulse withstand voltage of 6kV.
The breaker maintains an IP20 degree of protection on its terminals (IP40 when in a modular enclosure) and can operate reliably in ambient temperatures ranging from -30°C to 70°C (-22°F to 158°F). Its light grey color and compact dimensions (18mm W x 103mm H x 72mm D) make it suitable for various panel designs. This product complies with various international standards, including UL 489, CSA C22.2 No 5, EN/IEC 60947-2, and GB 14048.2, and is certified by IEC, CCC, CSA, and UL. It features tunnel type terminals suitable for rigid wires from 1 to 25 mm² and flexible wires from 1 to 16 mm².
- Product Type: Miniature Circuit Breaker (MCB)
- Manufacturer Part Number (MPN): M9F42105
- Brand/Series: Schneider Electric Multi9 C60BP
- Poles: 1P (1 protected pole)
- Rated Current (In): 5 A (at 77 °F / 25 °C)
- Network Type: AC, DC
- Tripping Curve: C
- Trip Unit Technology: Thermal-magnetic
- Rated Operational Voltage (Ue): 240 V AC 50/60 Hz, 415 V AC 50/60 Hz, 60 V DC
- Rated Insulation Voltage (Ui): 500 V AC (EN/IEC 60947-2)
- Rated Impulse Withstand Voltage (Uimp): 6 kV (EN/IEC 60947-2)
- Magnetic Tripping Limit: 8.5 x In +/- 20 % (AC), 12 x In +/- 20 % (DC)
- Short-Circuit Breaking Capacity (Icu/AIR):
- 10 kA AIR at 277 V AC (UL 489, CSA C22.2 No 5)
- 14 kA AIR at 240 V AC (UL 489, CSA C22.2 No 5)
- 14 kA AIR at 120 V AC (UL 489, CSA C22.2 No 5)
- 10 kA AIR at 60 V DC (UL 489, CSA C22.2 No 5)
- 3 kA Icu at 415 V AC (EN/IEC 60947-2, GB 14048.2)
- 10 kA Icu at 240 V AC (EN/IEC 60947-2, GB 14048.2)
- 20 kA Icu at 60 V DC (EN/IEC 60947-2, GB 14048.2)
- Rated Service Breaking Capacity (Ics):
- 2.25 kA (75 % Icu) at 415 V AC (EN/IEC 60947-2, GB 14048.2)
- 7.5 kA (75 % Icu) at 240 V AC (EN/IEC 60947-2, GB 14048.2)
- 15 kA (75 % Icu) at 60 V DC (EN/IEC 60947-2, GB 14048.2)
- Electrical Durability: 10,000 cycles
- Mechanical Durability: 20,000 cycles
- Mounting Mode: Clip-onMounting Support: DIN rail (2 x 9 mm pitches)
- Dimensions (W x H x D): 18 mm (0.71 in) x 103 mm (4.06 in) x 72 mm (2.83 in)
- Color: Grey
- Connections - Terminals: Tunnel type (top or bottom)
- Rigid Wire: 1…25 mm² (AWG 18...AWG 8)
- Flexible Wire (with/without ferrule): 1…16 mm² (AWG 18...AWG 8)
- Wire Stripping Length: 14 mm (0.55 in)
- Tightening Torque: 2.5 N.m (22.13 lbf.in)
- Earth-Leakage Protection: Without (requires external RCD for earth leakage protection)
- IP Degree of Protection: IP20 (conforming to IEC 60529), IP40 (modular enclosure)
- Pollution Degree: 3 (EN/IEC 60947-2)
- Operating Altitude: 0-2000 m (0-6561.68 ft)
- Ambient Air Temperature for Operation: -30…70 °C (-22…158 °F)
- Ambient Air Temperature for Storage: -40…80 °C (-40…176 °F)
- Standards: EN/IEC 60947-2, GB 14048.2, UL 489, CSA C22.2 No 5
- Product Certifications: IEC, CCC, CSA, UL
- Comprehensive Protection: Provides robust protection against overloads and short circuits.
- Dual Network Compatibility: Suitable for both AC and DC electrical systems.
- High Breaking Capacity: Offers significant interruption capabilities for various fault currents (up to 10kA UL489 at 277VAC).
- C Tripping Curve: Ideal for general-purpose applications where moderate inrush currents are expected.
- Compact Design: Single-pole unit with a narrow 18mm width for efficient panel space utilization.
- DIN Rail Mountable: Ensures quick, secure, and standardized installation.
- Enhanced Durability: Features high mechanical and electrical endurance for long-term reliable performance.
- Padlockable: Supports lockout/tagout procedures for increased safety during maintenance.
- Global Compliance: UL Listed, CSA Certified, IEC, and CCC certified, ensuring broad applicability.
18 Month Warranty
