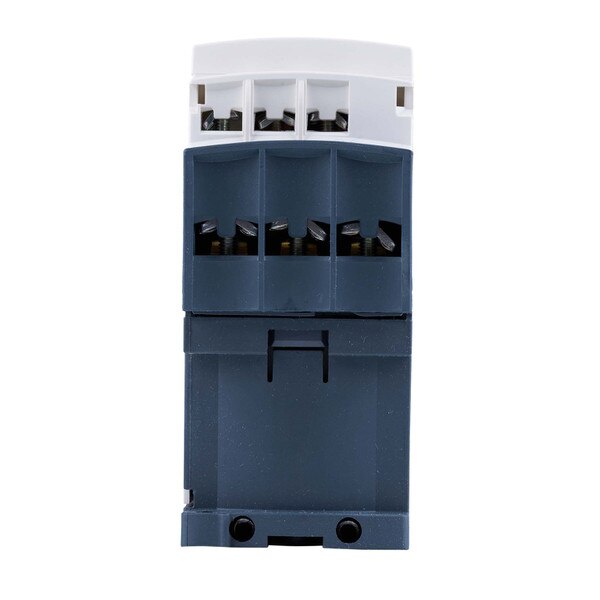

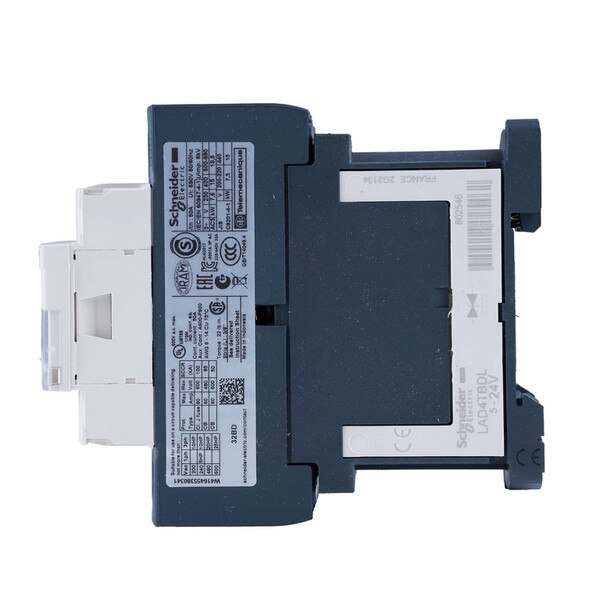

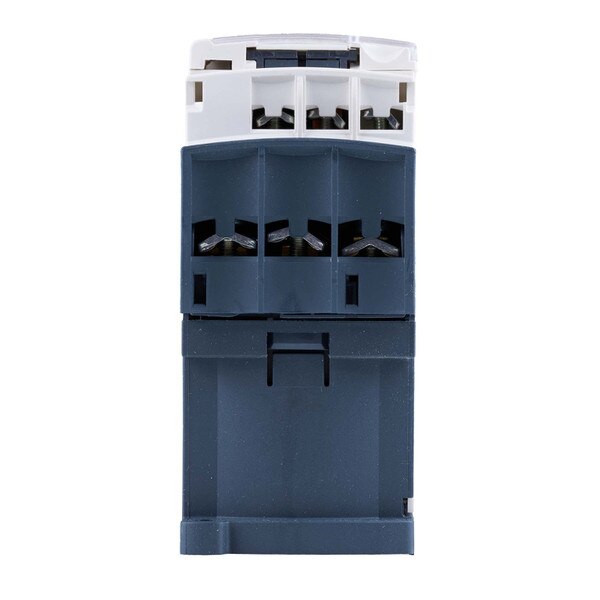

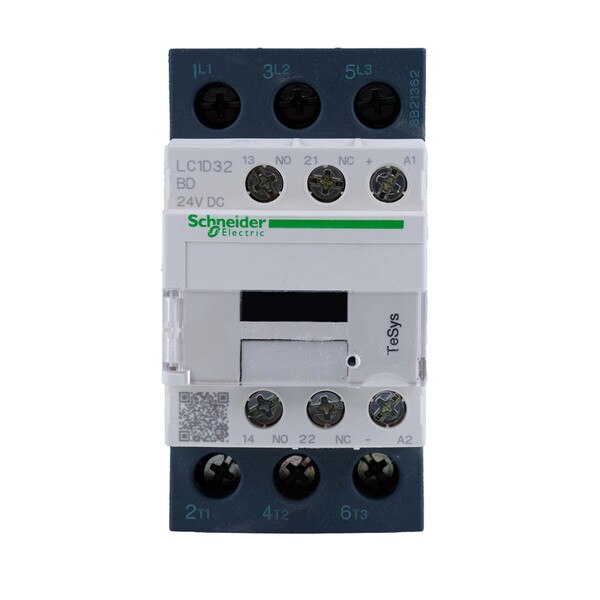

TeSys LC1D32BD Non-Reversing Contactor (24VDC, 32A, 3-Pole)
The TeSys Deca Non-Reversing Contactor (MPN: LC1D32BD) is a high-performance and highly reliable electrical component engineered for robust motor control and resistive load switching in industrial environments. It is an ideal solution for critical applications within car wash tunnels, such as the Conveyor Backup Starter, Guardian 80 Function Controller, and various other control systems located in the backroom of the wash site. This 3-pole contactor ensures efficient, safe, and dependable operation.
Featuring a 24VDC standard control circuit with a built-in bidirectional peak limiting diode suppressor, the LC1D32BD ensures precise and reliable control. It is rated for a substantial 32 Amperes (AC-3/AC-3e) for motor control and a higher 50 Amperes (AC-1) for resistive loads, at operational voltages up to 690V AC. This contactor can efficiently handle motor power up to 25 HP at 575/600V AC (3-phase), providing robust performance for a wide range of motor sizes. The unit includes 3 Normally Open (NO) power poles and essential built-in auxiliary contacts (1 NO + 1 NC), which are mechanically linked and mirror contacts. These auxiliary contacts are crucial for integrating the contactor into complex control schemes, offering critical feedback and interlocking capabilities.
The LC1D32BD incorporates box clamp (screw clamp) terminals for secure, robust, and versatile wiring connections, ensuring IP20 finger-safe protection for enhanced safety. Its compact design (3.3" H x 1.8" W x 4.0" D) and flexible mounting options (DIN rail or direct panel mounting) facilitate easy and adaptable integration into various control panels. Engineered for extreme durability, it boasts an impressive mechanical durability of 30 million cycles and electrical durability of up to 1.65 million cycles (for 32A AC-3/AC-3e), ensuring a prolonged service life. The contactor operates reliably in a wide ambient temperature range of 23°F to 140°F (-5°C to 60°C), with permissible temperatures up to 158°F (70°C) with derating. As a Green Premium product, it adheres to stringent environmental standards and is globally certified (UL, CSA, IEC, etc.), affirming its high quality, environmental responsibility, and broad applicability in industrial automation.
- Product Type: Non-Reversing Contactor
- Manufacturer Part Number (MPN): LC1D32BD
- Brand/Series: TeSys Deca (Schneider Electric)
- Poles Description: 3P (3 NO Power Pole Contacts)
- Contactor Application: Motor control, Resistive load
- Utilisation Category: AC-1, AC-3, AC-3e, AC-4
- Control Circuit Type: DC Standard
- Control Circuit Voltage (Uc): 24 V DC
- Rated Operational Current (Ie):
- 32 A (at <140 °F (60 °C)) at <= 440 V AC (AC-3, AC-3e for power circuit)
- 50 A (at <140 °F (60 °C)) at <= 440 V AC (AC-1 for power circuit)
- Rated Operational Voltage (Ue):
- Power circuit <= 690 V AC 25...400 Hz
- Power circuit <= 300 V DC
- Horsepower Rating (UL / CSA):
- 2 hp at 115 V AC 50/60 Hz (1 phase)
- 5 hp at 230/240 V AC 50/60 Hz (1 phase)
- 10 hp at 200/208 V AC 50/60 Hz (3 phase)
- 10 hp at 230/240 V AC 50/60 Hz (3 phase)
- 20 hp at 460/480 V AC 50/60 Hz (3 phase)
- 25 hp at 575/600 V AC 50/60 Hz (3 phase)
- Motor Power (kW, AC):
- 7.5 kW at 220...230 V AC 50/60 Hz (AC-3, AC-3e)
- 15 kW at 380...400 V AC 50/60 Hz (AC-3, AC-3e)
- 15 kW at 415...440 V AC 50/60 Hz (AC-3, AC-3e)
- 18.5 kW at 500 V AC 50/60 Hz (AC-3, AC-3e)
- 18.5 kW at 660...690 V AC 50/60 Hz (AC-3, AC-3e)
- 7.5 kW at 400 V AC 50/60 Hz (AC-4)
- Auxiliary Contact Composition: 1 NO + 1 NC (Mechanically linked and Mirror contact)
- Terminal Type: Screw Clamp Terminals (Box Clamp)
- Rated Insulation Voltage (Ui):
- Power circuit 690 V IEC 60947-4-1; 600 V CSA; 600 V UL
- Signalling circuit 690 V IEC 60947-1; 600 V CSA; 600 V UL
- Rated Impulse Withstand Voltage (Uimp): 6 kV IEC 60947
- Frequency: 50/60 Hz
- Operating Temperature Range: 23°F to 140°F (-5°C to 60°C)
- Permissible Ambient Air Temp. around device: -40°F to 140°F (-40°C to 60°C), with derating up to 158°F (70°C)
- Storage Temperature Range: -40°F to 176°F (-40°C to 80°C)
- Dimensions (H x W x D): 3.3" x 1.8" x 4.0" (85 mm x 45 mm x 101 mm)
- Net Weight: 1.179 lb (0.535 kg)
- Package Weight: 20.635 oz (585 g) for Unit Type of Package 1

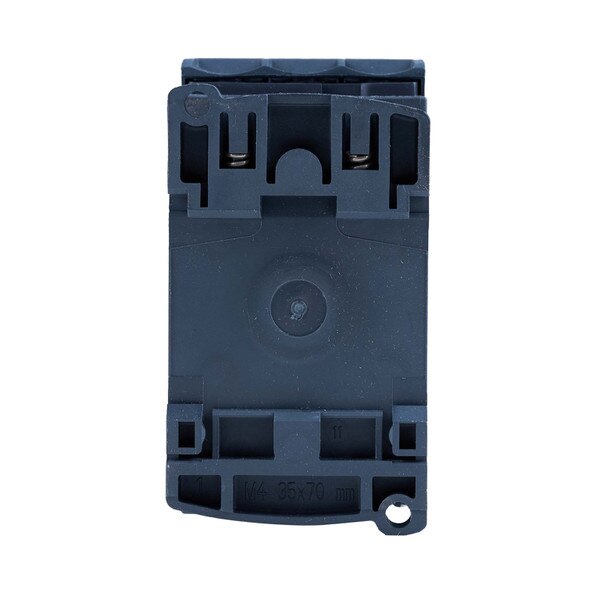

- Mounting Support: Plate, Rail (DIN Rail Mounted or Panel Mounted)
- Mechanical Durability: 30 Mcycles
- Electrical Durability:
- 1.65 Mcycles (32 A AC-3 <= 440 V)
- 1.4 Mcycles (50 A AC-1 <= 440 V)IP Degree of Protection: IP20 front face (IEC 60529)
- Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, etc.
- Product Certifications: UL, CCC, CSA, Marine, UKCA, EAC, CB Scheme
- Sustainable Offer Status: Green Premium Product, EU RoHS Compliant, PVC free
- Non-Reversing Operation: Provides straightforward control for unidirectional motor applications.
- Built-in Auxiliary Contacts: Includes 1 NO and 1 NC contact for flexible control circuit design and signaling.
- Wide Current and Horsepower Range: Suitable for robust motor control and resistive load applications up to 32A AC-3/AC-3e and 25HP.
- 24VDC Control Voltage: Ensures compatibility with common low-voltage DC control systems.
- Box Clamp Terminals: Provides secure and efficient wiring connections with IP20 finger-safe protection.
- Flexible Mounting: Supports both DIN rail and panel mounting for versatile installation options.
- Extreme Durability: Offers exceptional mechanical (30 Mcycles) and electrical (1.65 Mcycles for AC-3/AC-3e) life for reliable long-term performance.
- Compact Design: Space-saving dimensions for efficient panel integration.
- Global Compliance: Certified by major international standards (UL, CSA, IEC, etc.) for broad applicability and safety.
18 Month Warranty
*Please review our warranty policy here for additional details.
