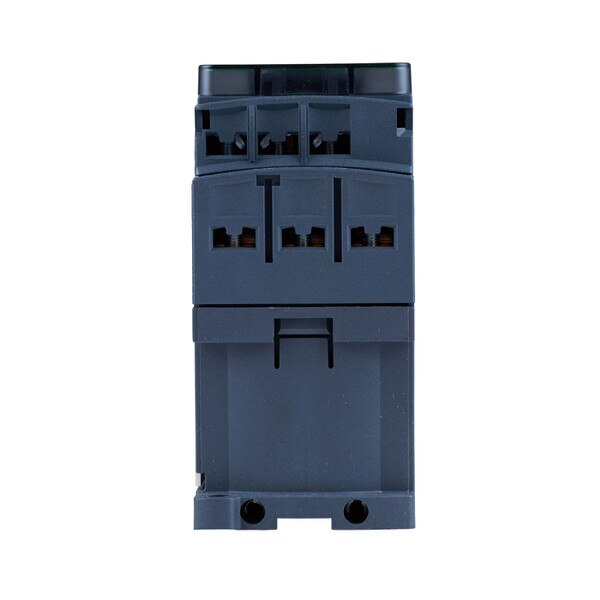

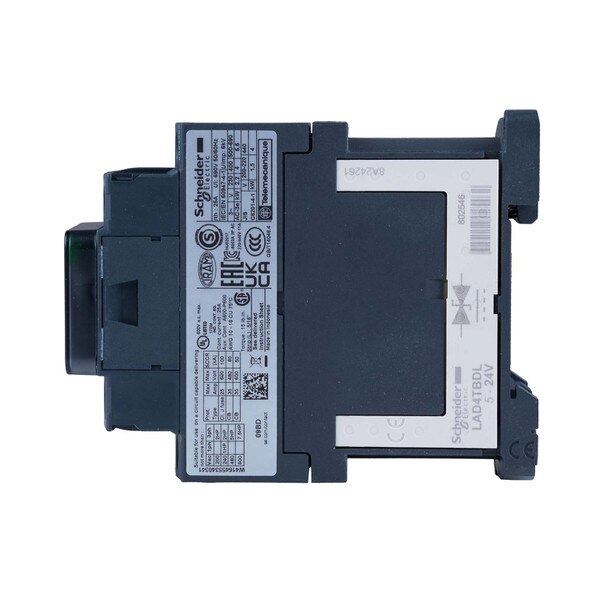

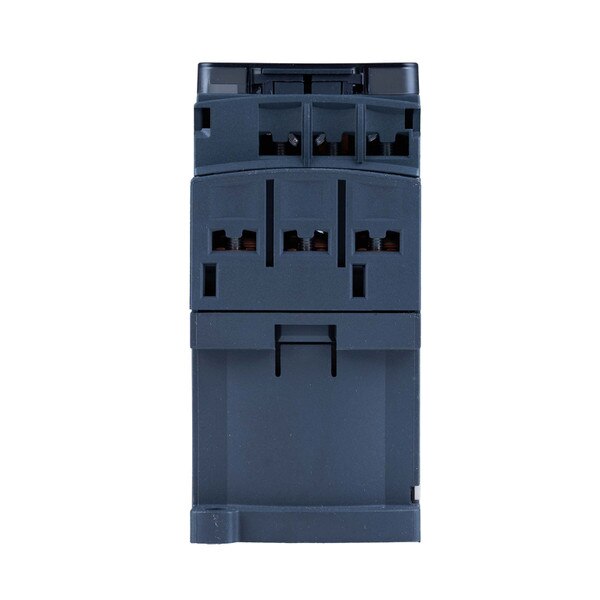

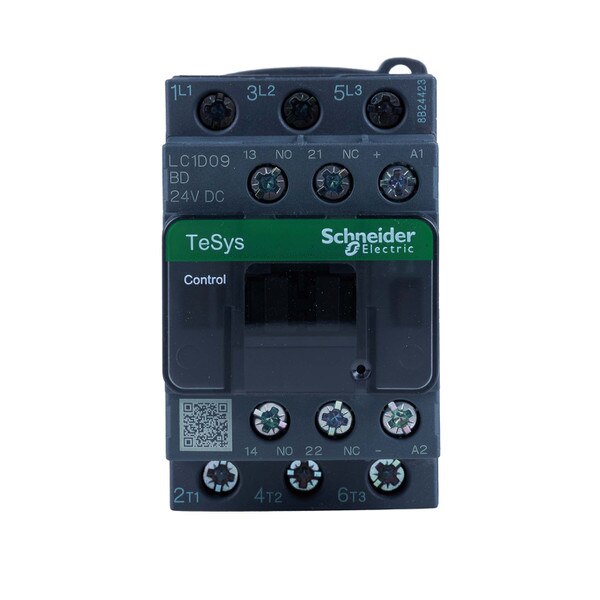

LC1D09BD Non-Reversing Contactor 24VDC 9A
The TeSys D Non-Reversing Contactor (MPN: LC1D09BD) is a robust and highly reliable solution for motor control and resistive load switching in industrial environments, such as those found in car wash tunnels. Specifically designed for applications like Conveyor Backup Starters, Guardian 80 Function Controllers, and other critical control systems in the backroom of a wash site, this contactor ensures efficient and safe operation.
Equipped with a 24VDC control circuit for precise and responsive operation, the LC1D09BD handles a rated operational current of 9 Amperes (AC-3) for motor control and up to 25 Amperes (AC-1) for resistive loads at 440V AC. It features 3 Normally Open (NO) power poles and convenient built-in auxiliary contacts (1 NO + 1 NC), simplifying wiring and enabling advanced control schemes. The versatile box clamp screw terminals (also referred to as screw clamp terminals in the datasheet) accommodate various wire sizes and are IP20 finger-safe for enhanced protection.
With its ability to handle motors up to 7.5 HP (at 575/600V AC, 3-phase) and various kW ratings across different voltages, this contactor offers excellent performance. It boasts impressive mechanical durability of 30 million cycles and electrical durability of up to 2 million cycles (for 9A AC-3 at <=440V), ensuring a long service life and high operational reliability. The compact dimensions (3.03" H x 1.77" W x 3.74" D) and dual mounting options (DIN rail or panel) provide flexibility for installation in diverse control panels. Fully compliant with international standards like UL, CSA, and IEC, and carrying a Green Premium product status, the LC1D09BD is a dependable choice for modern control applications.
- Product Type: Non-Reversing Contactor
- Manufacturer Part Number (MPN): LC1D09BD
- Brand: TeSys D (Schneider Electric)
- Poles Description: 3P (3 NO Power Pole Contacts)
- Control Circuit Type: DC Standard
- Control Circuit Voltage (Uc): 24 VDC
- Rated Operational Current (Ie):
- 9 A (at 140°F (60°C)) <= 440 V AC AC-3 power circuit
- 25 A (at 140°F (60°C)) <= 440 V AC AC-1 power circuit
- Rated Operational Voltage (Ue):
- Power circuit <= 690 V AC 25...400 Hz
- Power circuit <= 300 V DC
- Horsepower Rating (UL / CSA):
- 0.33 Hp 115 V AC 50/60 Hz 1 phase
- 1 Hp 230/240 V AC 50/60 Hz 1 phase
- 2 Hp 200/208 V AC 50/60 Hz 3 phase
- 2 Hp 230/240 V AC 50/60 Hz 3 phase
- 5 Hp 460/480 V AC 50/60 Hz 3 phase
- 7.5 Hp 575/600 V AC 50/60 Hz 3 phase
- Motor Power (kW, AC):
- 2.2 KW 220...230 V AC 50/60 Hz (AC-3)
- 4 KW 380...400 V AC 50/60 Hz (AC-3)
- 4 KW 415...440 V AC 50/60 Hz (AC-3)
- 5.5 KW 500 V AC 50/60 Hz (AC-3)
- 5.5 KW 660...690 V AC 50/60 Hz (AC-3)
- 2.2 kW 400 V AC 50/60 Hz (AC-4)
- Auxiliary Contact Composition: 1 NO + 1 NC
- Terminal Type: Screw Clamp Terminals
- Rated Insulation Voltage (Ui):
- Power circuit 690 V IEC 60947-4-1
- Signalling circuit 690 V IEC 60947-1
- Rated Impulse Withstand Voltage (Uimp): 6 kV IEC 60947
- Frequency: 50/60 Hz
- Operating Temperature Range: 23°F to 140°F (-5°C to 60°C)
- Ambient Air Temperature around device (at Uc): -40°F to 158°F (-40°C to 70°C)
- Storage Temperature Range: -76°F to 176°F (-60°C to 80°C)
- Dimensions (H x W x D): 3.03" x 1.77" x 3.74" (77 mm x 45 mm x 95 mm)
- Product Weight: 1.06 lb (0.48 kg)
- Package Weight: 1.17 lb (0.53 kg)

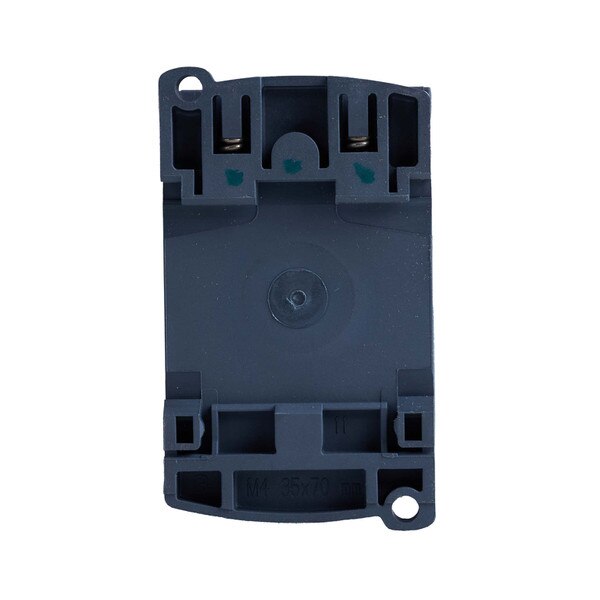

- Mounting Support: Plate, Rail (DIN Rail Mounted or Panel Mounted)
- Mechanical Durability: 30 Mcycles
- Electrical Durability: 2 Mcycles (9 A AC-3 <= 440 V); 0.6 Mcycles (25 A AC-1 <= 440 V)
- IP Degree of Protection: IP20 front face (IEC 60592)
- Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
- Product Certifications: LROS, CSA, UL, GOST, DNV, CCC, GL, BV, RINA
- Environmental Status: Green Premium Product, EU RoHS Compliant, Mercury Free
- Non-Reversing Operation: Simplifies control for unidirectional motor applications.
- Integrated Auxiliary Contacts: Includes 1 Normally Open (NO) and 1 Normally Closed (NC) contact for versatile control schemes.
- Wide Application Range: Suitable for motor control and resistive loads in diverse industrial settings, including wash tunnels.
- 24VDC Control Voltage: Ensures compatibility with common low-voltage control systems.
- Box Clamp Terminals: Provides secure and robust wiring connections with finger-safe IP20 protection.
- Flexible Mounting: Supports both DIN rail and panel mounting for ease of installation.
- High Durability: Offers extended mechanical (30 Mcycles) and electrical (2 Mcycles for AC-3) life for reliable long-term performance.
- Compact Design: Space-efficient dimensions for integration into various panel configurations.
- Global Compliance: Certified by major international standards (UL, CSA, IEC, etc.) for broad applicability and safety.
18 Month Warranty
