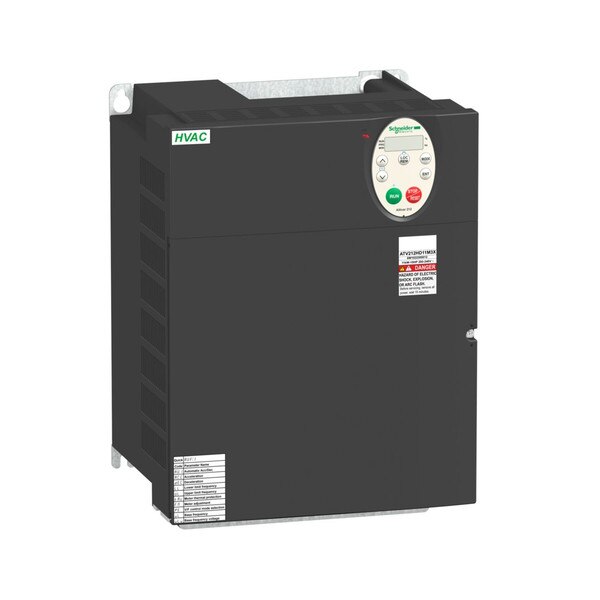

Unprogrammed 15HP Altivar 212 Variable Frequency Drive 200-240 VAC
This unprogrammed variable frequency drive is used in the Guardian Control System in the backroom of the wash. It helps control the motors, pumps, and blowers used in the wash. This specific frequency drive has a supply voltage range of 200-240 VAC and an output power of 15 HP. It offers many features including application specific functions, advanced connectivity, and open loop motor control. These drives are compatible with 3 Phase synchronous and asynchronous motors. The variable frequency drive is meant to be panel mounted. This is an unprogrammed variable frequency drive. Before ordering, please call our Parts Department at 616-795-4893 to help assist in the programming of this drive before it is shipped.
- Current Rating: 46.2 A
- Output Frequency: 0.5-200 Hz
- Horsepower: 15 HP
- Motor Power Rating: 11 kW
- Supply Voltage Range: 200-240 VAC
- # of Phases: 3-Phase
- Supply Frequency: 50/60 Hz
- Operating Temp. Range: 14F-122F
- Dimensions: 7-1/2" X 9-5/8" X 13"
- Used with Three-Phase Motors
- Totally Enclosed
- Open Loop Motor Control for Asynchronous and Synchronous Motors
- Advanced Connectivity
- Continuous Machine Operation in Harsh Environments
- Maximized Machine Operation Time
- IP20 Protection
- Wall Mounting Type
- CSA Certified
18 Month Warranty
*Please review our warranty policy here for additional details.
