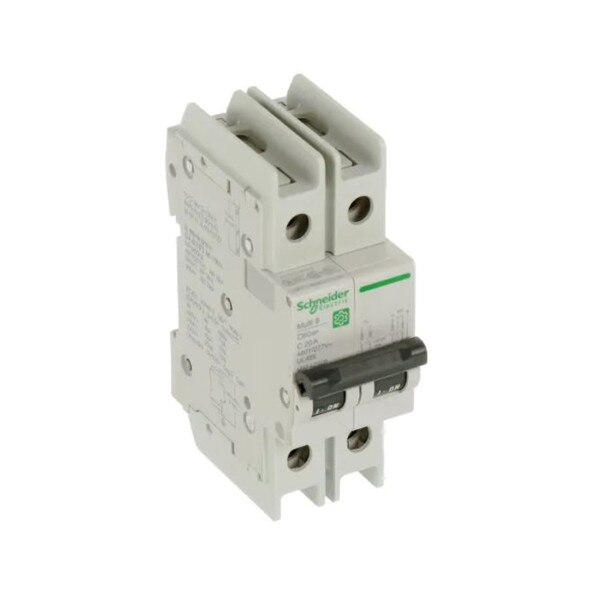

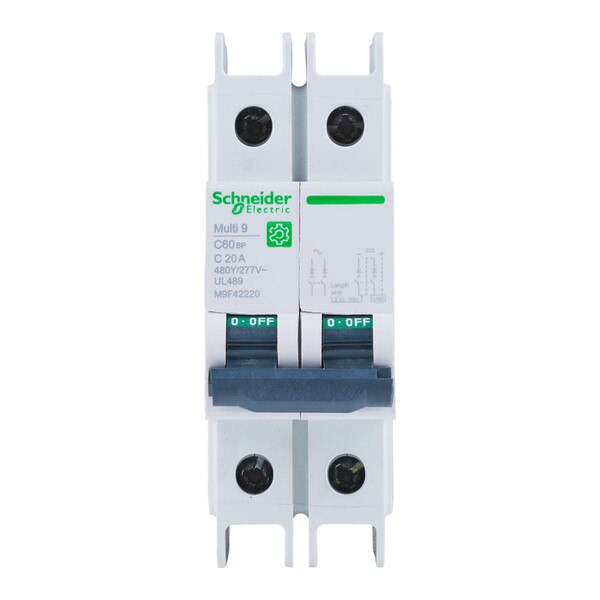

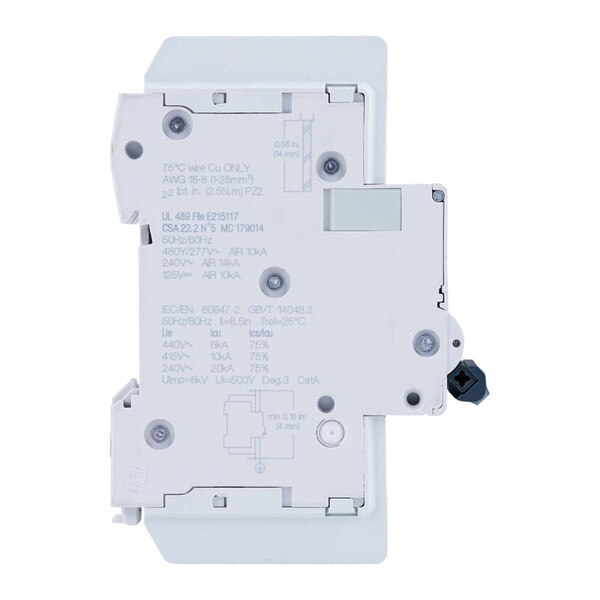

M9F42220 Miniature Circuit Breaker, Multi9 C60BP, 2P, 20A
The CCS-60147 Miniature Circuit Breaker (MCB), identified by Manufacturer Part Number (MPN) M9F42220 within the Multi9 C60BP series, is a vital electrical protection device widely used in various applications within the wash environment. This low-voltage, 2-pole circuit breaker with 2 protected poles is designed to provide enhanced safety for both personnel and equipment by preventing and mitigating electrical threats such as short circuits, earth leakage, and overloads.
This MCB has a current rating of 20 Amperes and features a C tripping curve (thermal-magnetic technology), making it an excellent choice for general-purpose protection in circuits where moderate inrush currents are anticipated. It is capable of operating on both AC and DC network types, offering broad applicability.
The CCS-60147 boasts significant breaking capacities, including 14kA (AIR) at 240V AC and 10kA (AIR) at 480Y/277V AC conforming to UL 489 and CSA C22.2 No 5 standards. For IEC/EN 60947-2 and GB 14048.2 standards, it provides 20kA (Icu) at 240V AC, 10kA (Icu) at 415V AC, and 6kA (Icu) at 440V AC. In DC networks, it achieves 10kA (AIR) at 125V DC (UL 489/CSA C22.2 No 5). These robust capabilities ensure effective interruption of fault currents.
Designed for ease of installation and long-term reliability, the breaker can be conveniently clipped onto a DIN rail and occupies a compact space of 4 pitches (36mm width). It offers an electrical endurance of 10,000 cycles and a mechanical endurance of 20,000 cycles. The operational voltage spans 240V AC (50/60 Hz), 415V AC (50/60 Hz), and 440V AC (50/60 Hz). It is equipped with tunnel type terminals (top or bottom) that can accommodate rigid wires from 1 to 25 mm² (AWG 18 to AWG 8) and flexible wires from 1 to 16 mm² (AWG 18 to AWG 8), with a recommended tightening torque of 2.5 N.m.
The circuit breaker maintains an IP20 degree of protection on its terminals (IP40 in a modular enclosure) and can operate reliably in ambient temperatures ranging from -30°C to 70°C (-22°F to 158°F). Its light grey (RAL7035) color and compact dimensions (36mm W x 103mm H x 72mm D) make it suitable for various panel designs. This product is UL Listed and certified by IEC, CCC, and CSA, ensuring global compliance and safety.
- Product Type: Miniature Circuit Breaker (MCB)
- Manufacturer Part Number (MPN): M9F42220
- Brand/Series: Schneider Electric Multi9 C60BP
- Poles: 2P (2 protected poles)
- Rated Current (In): 20 A (at 77 °F / 25 °C)
- Network Type: AC, DC
- Tripping Curve: CTrip Unit Technology: Thermal-magnetic
- Rated Operational Voltage (Ue): 240 V AC 50/60 Hz, 415 V AC 50/60 Hz, 440 V AC 50/60 Hz
- Rated Insulation Voltage (Ui): 500 V AC (EN/IEC 60947-2)
- Rated Impulse Withstand Voltage (Uimp): 6 kV (EN/IEC 60947-2)
- Magnetic Tripping Limit: 8.5 x In +/- 20 % (AC), 12 x In +/- 20 % (DC)
- Short-Circuit Breaking Capacity (Icu/AIR):
- 14 kA AIR at 240 V AC (UL 489, CSA C22.2 No 5)
- 10 kA AIR at 480Y/277 V AC (UL 489, CSA C22.2 No 5)
- 10 kA AIR at 125 V DC (UL 489, CSA C22.2 No 5)
- 20 kA Icu at 240 V AC (EN/IEC 60947-2, GB 14048.2)
- 10 kA Icu at 415 V AC (EN/IEC 60947-2, GB 14048.2)
- 6 kA Icu at 440 V AC (EN/IEC 60947-2, GB 14048.2)
- Rated Service Breaking Capacity (Ics):
- 15 kA (75 % Icu) at 240 V AC (EN/IEC 60947-2, GB 14048.2)
- 7.5 kA (75 % Icu) at 415 V AC (EN/IEC 60947-2, GB 14048.2)
- 4.5 kA (75 % Icu) at 440 V AC (EN/IEC 60947-2, GB 14048.2)
- Electrical Durability: 10,000 cycles
- Mechanical Durability: 20,000 cycles
- Mounting Mode: Clip-on
- Mounting Support: DIN rail (4 x 9 mm pitches)
- Dimensions (W x H x D): 36 mm (1.4 in) x 103 mm (4.06 in) x 72 mm (2.8 in)
- Color: Gray
- Connections - Terminals: Tunnel type (top or bottom)
- Rigid Wire: 1…25 mm² (AWG 18...AWG 8)
- Flexible Wire (with/without ferrule): 1…16 mm² (AWG 18...AWG 8)
- Wire Stripping Length: 14 mm (0.6 in)
- Tightening Torque: 2.5 N.m (22.1 lbf.in)
- Earth-Leakage Protection: Without
- IP Degree of Protection: IP20 (conforming to IEC 60529), IP40 (modular enclosure)
- Pollution Degree: 3 (EN/IEC 60947-2)
- Operating Altitude: 0-2000 m (0-6561.68 ft)
- Ambient Air Temperature for Operation: -30…70 °C (-22…158 °F)
- Ambient Air Temperature for Storage: -40…80 °C (-40…176 °F)
- Standards: EN/IEC 60947-2, GB 14048.2, UL 489, CSA C22.2 No 5
- Product Certifications: IEC, CCC, CSA, UL
- Country of Origin: France (FR)
- Package Weight: 246 g (8.677 oz)
- Comprehensive Protection: Safeguards against short circuits and overloads, protecting both personnel and equipment.
- Versatile Network Compatibility: Operates on both AC and DC electrical networks.
- High Breaking Capacity: Offers significant interruption capabilities for various fault currents, meeting multiple international standards.
- Thermal-Magnetic Trip: Provides reliable and precise tripping characteristics for C-curve applications.
- Space-Saving Design: Compact 2-pole unit with a narrow width for efficient panel space utilization.
- DIN Rail Mountable: Enables quick, secure, and standardized installation.
- Enhanced Durability: Features high mechanical and electrical endurance for long-term reliable performance.
- Padlockable: Supports lockout/tagout procedures for increased safety during maintenance.
- Contact Position Indicator: Provides clear visual status (ON/OFF) of the circuit breaker.
- Global Certifications: UL Listed, IEC, CCC, and CSA certified for broad application and compliance.
