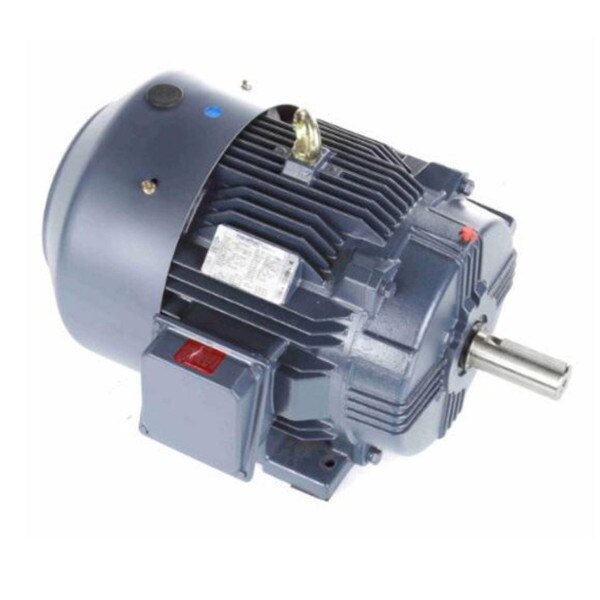

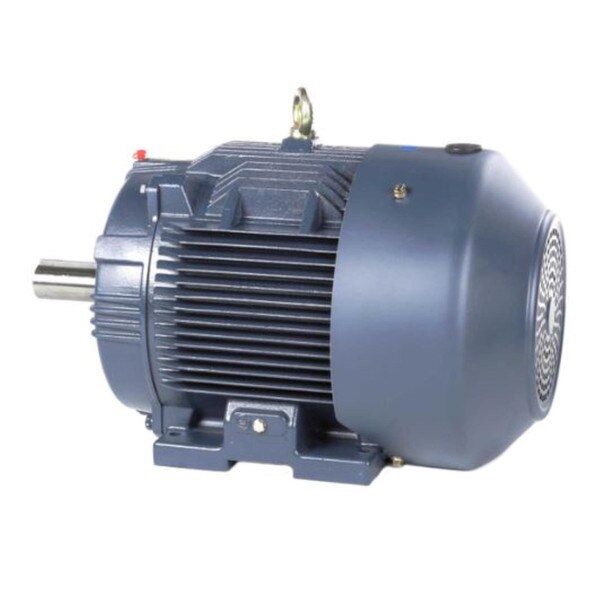

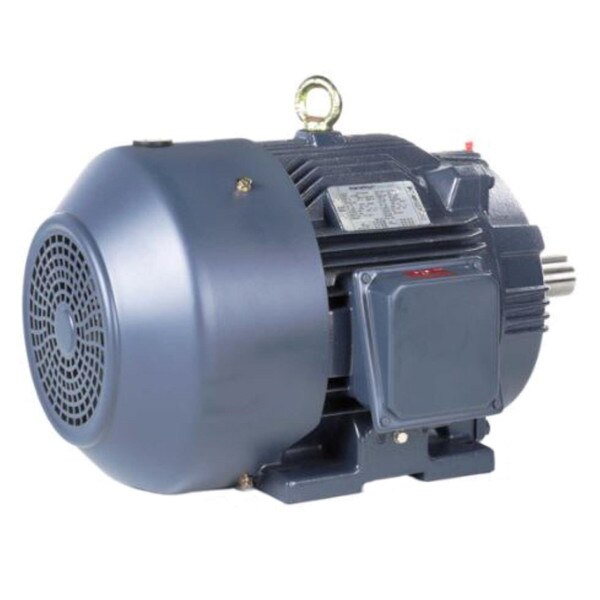

All-In-One Replacement Electric Motor (15 HP, 3-Phase, 1-7/8" Shaft)
SKU: P-SE-2254-48-6
This P-SE-2254 All-In-One Replacement Electric Motor is specifically engineered for the high-demand, continuous operation environment of a commercial car wash pump station. Its robust construction and high efficiency make it the power source for the most intense cleaning features, primarily the Double and Triple Threat Blasters.
Key Motor Features:
- High Performance: 15 HP output (or 11.2 kW) running at a relatively low speed of 1182 RPM (6-pole design), generating significant torque (66.7 lb-ft).
- Efficiency & Inverter Rated: Achieves a high 91.7% Full Load Efficiency and is a Squirrel Cage Inverter Rated design, allowing it to be controlled by a Variable Frequency Drive (VFD) with constant torque over a 20:1 speed range.
- Durability: The motor features a robust Cast Iron 284T Frame and a Totally Enclosed Fan-Cooled (TEFC) enclosure, providing superior protection against washdown, dust, and moisture (rated IP55).
- Shaft Specifications: Equipped with a large 1−7/8" diameter shaft that is 4−5/8" long, suitable for demanding belt or coupling drive applications.
This motor is designed for continuous duty and reversible rotation, meeting UL, CSA, and CE standards.
- Model/Catalog No.: 284TTFCD6076 / GT1023A (Manufacturer Reference)
- Product Type: General Purpose Electric Motor / Replacement Motor
- Application: All-In-One Pump Station (Powers Double and Triple Threat Blasters)
- Output Horsepower (HP): 15 HP
- Power Rating: 11.2 kW
- Voltage Rating: 230/460 V (3-Phase)
- Frequency: 60 Hz
- Full Load Speed: 1182 RPM (Synchronous 1200 RPM)
- Number of Phases / Poles: 3-Phase / 6-Pole
- Frame Size: 284T
- Frame Material: Cast Iron
- Enclosure Design: TEFC (Totally Enclosed Fan-Cooled)
- Shaft Diameter: 1−7/8"
- Shaft Length: 4−5/8"
- Full Load Efficiency: 91.7%
- Service Factor: 1.15
- Special Feature: Squirrel Cage Inverter Rated (Constant 20:1 Torque)
- Protection: IP55
- Blaster Power Source: High 15 HP output specifically for demanding Blaster applications.
- VFD Compatible: Inverter-rated design allows for efficient speed and torque control via a VFD.
- Extreme Durability: TEFC enclosure and Cast Iron frame provide maximum protection in the harsh wash environment.
- High Efficiency: Meets the 91.7% Full Load Efficiency standard for reduced operating costs.
