Single 4" Tenon for Square Pole

(0) No Reviews yet
$75.00
SKU: P-LED-4007

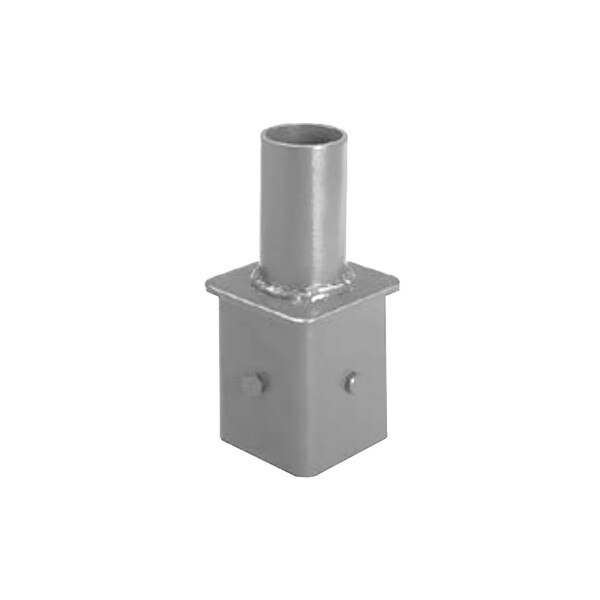

Description: Single Tenon for 4" Square Pole (Silver)

Special Order - IN STOCK

Steel Square Tenon Used with Adjustable Arm Mount. Mounts One Luminaire. The square base of the PB Series steel brackets is designed to be inserted into square, non-tapered steel or aluminum poles ranging in size from 3" (76mm) to 6" (152mm) square with a maximum wall thickness of 0.188" (5mm). Square PB tenons are supplied with end caps to enclose the wiring chamber. Tenon base secures to pole with four 5/16" (8mm) hex head stainless steel black oxide bolts. Vertical tenons measure 2-3/8" (60mm) O.D. x 3.75” (95mm) tall and are made of steel tubing. Luminaires mounted to these tenons can be adjusted both vertically and horizontally.
  • Silver Finish
  • Single Tenon
  • 4" OD pole
http://shop.tommycarwash.com/site/PDF-AUTO/P-LED-4007.pdf
