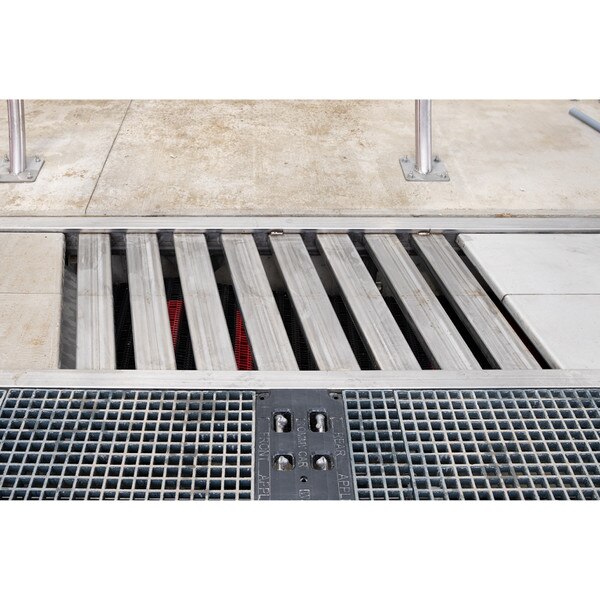

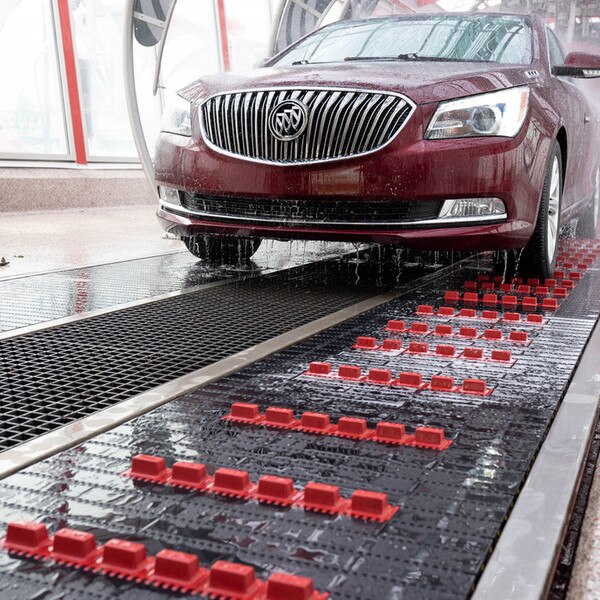

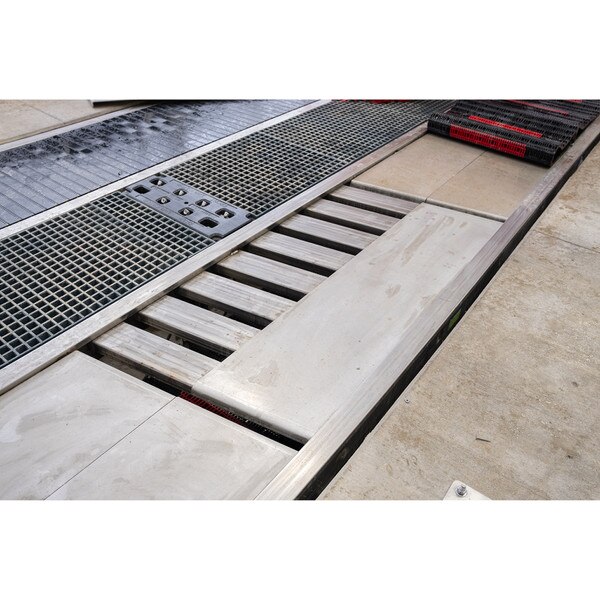

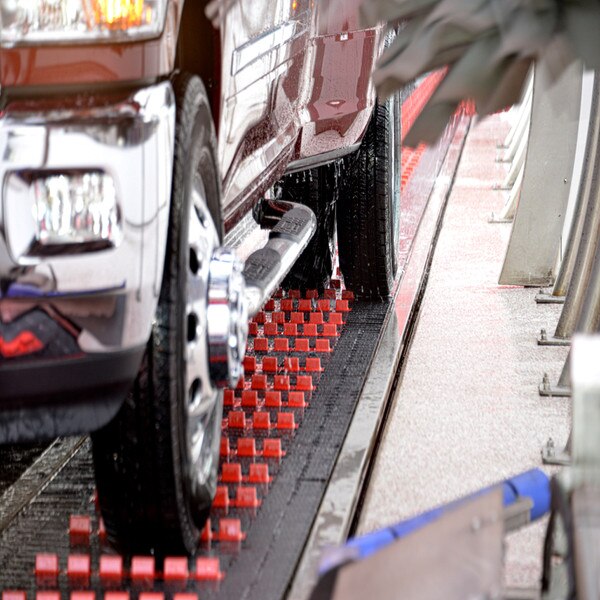

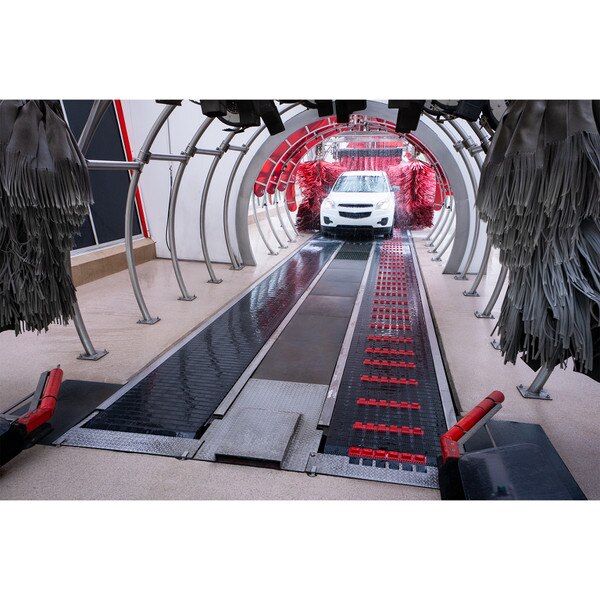

30" Tommy Transporter Conveyor Belt System - Stainless Steel Frame
Invest in the future of your wash with the Tommy Transporter Dual Belt Conveyor System featuring a robust Stainless Steel Frame. This top-tier upgrade provides all the benefits of the standard Transporter—high throughput, easy loading, and superior safety—while delivering significantly enhanced durability against the harsh, corrosive environment of a modern car wash tunnel.
Key Benefits of the Stainless Steel Transporter:
- Maximum Corrosion Resistance: The heavy-duty Stainless Steel frame (instead of primered steel) offers the highest level of protection against water, chemicals, and road salt, ensuring a prolonged structural service life and minimizing long-term maintenance costs.
- Easy, Low-Stress Loading: Eliminates the anxiety associated with guide rails and correlators. Customers simply drive onto the wide, forgiving belt and shift to neutral.
- Increased Throughput: The continuous-movement design and easy loading allow you to process significantly more vehicles (up to 220+ cars per hour), maximizing your profitability.
- Superior Safety & Vehicle Compatibility: The dual belt system accommodates a wider range of vehicles, including lowered cars and most dually trucks, while virtually eliminating the risk of wheel or tire damage associated with chain systems.
- Reduced Maintenance: With fewer moving parts than traditional systems, combined with the extreme resilience of stainless steel, daily maintenance and corrosion-related repairs are drastically reduced.
The Stainless Steel Transporter is the definitive choice for operators who demand maximum longevity and minimum downtime from their core equipment.
The Tommy Transporter is highly customizable to fit your site's specific needs. Included with the purchase are the drive and passenger side belts, fully loaded drive and take-up frames, middle belt frames, and subcomponents (VFD is sold separately).
Available Customization Choices (Stainless Steel Frame Standard):
- Motor Horsepower (HP): Standard is 20 HP, with options for 10 HP, 15 HP, 25 HP, and 40 HP.
- Belt Color: Standard is Blue, with options for Black, Red, or Green.
- Flight (Pusher) Color: Standard is Yellow, with options for Blue, Black, Red, or Green.
- Pusher Flight Size: Standard pusher height alternates between 2 inch and 1 inch, with fixed size options of 1 inch, 1-1/4 inch, 1-1/2 inch, or 2 inch.
- Flight (Row) Spacing: Standard spacing is 12-13-14 split pitch (27 inch - 28 inch - 29 inch - 28 inch), with options for 16-13 pitch and 5-6-7-6 pitch.
- Belt Thickness: Standard is 3/4 inch, with options for 1 inch and thicker.
- Conveyor Width: Standard is 8 feet - 4 inches, with a larger option of 10 feet - 4 inches.
Ready to boost your car count? Contact our Equipment Sales team at (616) 494-0411 or sales@tommycarwash.com for a full quote and to discuss your specific tunnel length requirements! Below prices are estimates depending on what style belt and features you want.
Base Price: $37,900
Per Foot Price: $2,410
- Frame Material: Stainless Steel
- Belt Type: Dual Belt
- Belt Material: Engineered Polymer
- Belt Width (Individual Belt): 30 inches (Wider 42 inch option available)
- Conveyor Overall Width: 8 feet - 4 inches (10 feet - 4 inches option)
- Belt Thickness (Standard): 3/4 inch
- Pusher Flight Row Width: 18 inches
- Hinge Pin Material: Engineered Polymer Composite, Stainless Steel
- Hinge Pin Diameter: 5/16 inch (3/8 inch option)
- Belt Load Capacity (Standard): 340 lbs/ft (Custom designs up to 101,000 lbs)
- Documented Belt Service Life: 670,000 washes
- Belt Speed Range: 27 - 80 ft/min (Max 84 ft/min option)
- Maximum Cars/Hour (Estimate): 218 (Max 230 option)
- Assumed Vehicle Spacing Distance: 22 ft
- Motor Horsepower (Standard): 20 HP
- Motor Type: TEFC Inverter Duty (VFD Control Required)
- SS Wear Plate Thickness: 3/16 inch
- Fiberglass Grating Thickness: 1-1/2 inch
- Fiberglass Grating Rated Load: 1300 lbs molded (1495 lbs pultruded option)
- 30" Dual Belt Design: Provides a wide, forgiving belt for both the driver and passenger side wheels, accommodating a wider range of vehicles including low-profile cars and most dually trucks
- Compatibility: Ideal for new installations or for retrofitting and replacing existing chain-and-roller conveyor systems.
- Easy, Low-Stress Loading: Eliminates the difficulty and anxiety associated with traditional guide rails and correlators. Customers simply drive onto the belt and shift to neutral, minimizing vehicle damage and reducing the need for constant staff assistance.
- Increased Throughput: The easy-loading, continuous-movement design allows you to process significantly more vehicles per hour, maximizing your revenue and minimizing customer wait times.
- Corrosion-Resistant Stainless Steel Frame: Built to withstand the harshest car wash environments, the robust stainless steel frame offers maximum longevity, reducing maintenance and replacement costs.
- Smooth & Gentle Ride: The belt system pulls the vehicle gently through the wash, providing a "magic carpet ride" that is safer for wheels and tires.
- Reduced Maintenance: With fewer moving parts like chains, rollers, and complex correlators, the Tommy Transporter requires significantly less daily maintenance compared to older systems.
- Low Maintenance: Fewer moving parts than traditional chain-and-roller systems.
- Easy Loading: Eliminates guide rails and correlators for a stress-free customer experience.
