30" Tommy Transporter Conveyor Belt System - Primered Steel Frame
Elevate your car wash efficiency and customer experience with the Tommy Transporter Dual Belt Conveyor System. This innovative technology is the ultimate upgrade from traditional, complex chain-and-roller systems, designed to simplify vehicle loading, minimize damage claims, and maximize your revenue by washing more cars per hour.
Key Benefits of the Tommy Transporter:
- Easy, Low-Stress Loading: Eliminates the anxiety associated with guide rails and correlators. Customers simply drive onto the wide, forgiving belt and shift to neutral.
- Increased Throughput: The continuous-movement design and easy loading allow you to process significantly more vehicles (up to 220+ cars per hour), maximizing your profitability.
- Wash More Types of Vehicles: The wide, low-profile, dual-belt design easily accommodates a wider range of vehicles, including lowered cars and most dually trucks, expanding your potential customer base.
- Superior Safety: The dual belt system reduces the risk of vehicle damage (like scratched rims) and prevents the customer from putting the vehicle in park or turning the wheel during the wash.
- Reduced Maintenance: With fewer moving parts like chains, rollers, and complex correlators, the Transporter requires significantly less daily maintenance, leading to more predictable repairs and fewer unexpected breakdowns.
- Primered Steel Frame: Offers a cost-effective and strong foundation with a demonstrated service life of 13 years.

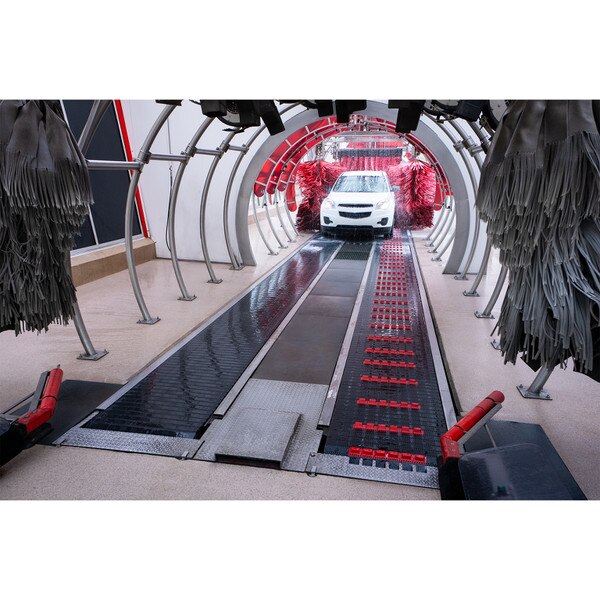

The system is perfect for new installations or for retrofitting and replacing existing chain-and-roller conveyor systems. It gives the vehicle a smooth, gentle "magic carpet ride" through the tunnel.
The Tommy Transporter is highly customizable to fit your site's specific needs. Included with the purchase are the drive and passenger side belts, fully loaded drive and take-up frames, middle belt frames, and subcomponents (VFD is sold separately).
Available Customization Choices:
- Motor Horsepower (HP): Standard is 20 HP, with options for 10 HP, 15 HP, 25 HP, and 40 HP.
- Frame Material and Coating: Standard is Primered Steel with Red oxide primer. Black or Blue primer is available at an additional cost.
- Belt Color: Standard is Blue, with options for Black, Red, or Green.
- Flight (Pusher) Color: Standard is Yellow, with options for Blue, Black, Red, or Green.
- Pusher Flight Size: Standard pusher height alternates between 2 inch and 1 inch, with fixed size options of 1 inch, 1-1/4 inch, 1-1/2 inch, or 2 inch.
- Flight (Row) Spacing: Standard spacing is 12-13-14 split pitch (27 inch - 28 inch - 29 inch - 28 inch), with options for 16-13 pitch and 5-6-7-6 pitch.
- Belt Thickness: Standard is 3/4 inch, with options for 1 inch and thicker.
- Conveyor Width: Standard is 8 feet - 4 inches, with a larger option of 10 feet - 4 inches.
Ready to boost your car count? Contact our Equipment Sales team at (616) 494-0411 or sales@tommycarwash.com for a full quote and to discuss your specific tunnel length requirements! Below prices are estimates depending on what style belt and features you want.
Base Price: $24,430
Per Foot Price: $1,484

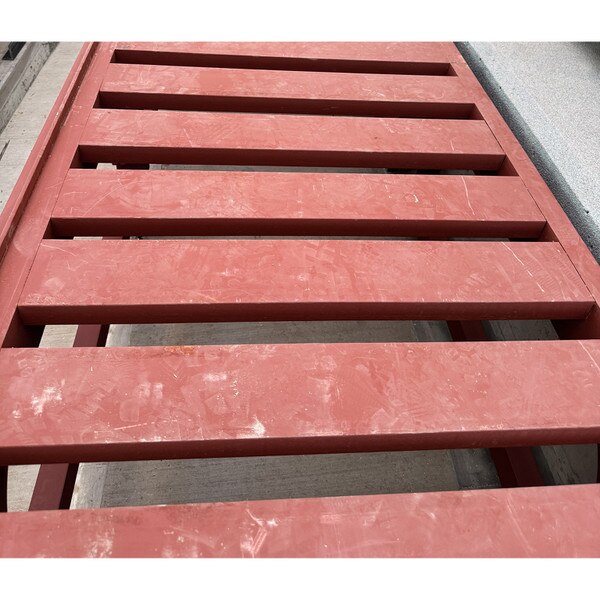

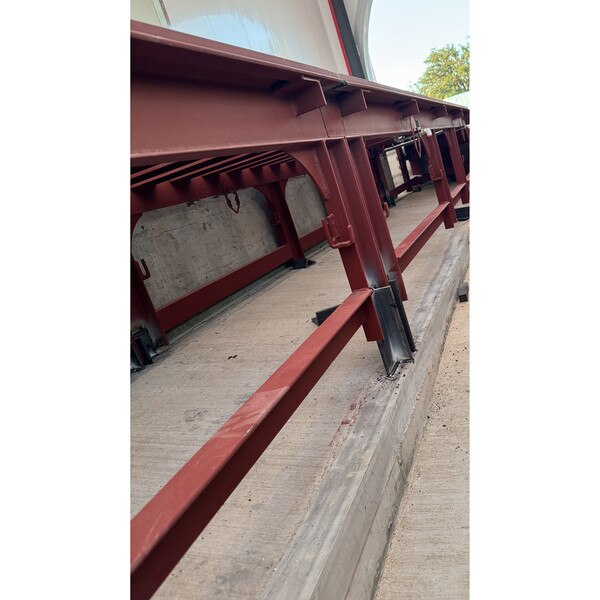

- Frame Material: Primered Steel (Heavy Duty A36 C-Channel)
- Frame Service Life: 13 Years
- Belt Type: Dual Belt
- Belt Material: Engineered Polymer
- Belt Width (Individual Belt): 30 inches (Wider 42 inch option available)
- Conveyor Overall Width: 8 feet - 4 inches (10 feet - 4 inches option)
- Belt Thickness (Standard): 3/4 inch
- Pusher Flight Row Width: 18 inches
- Hinge Pin Material: Engineered Polymer Composite, Stainless Steel
- Hinge Pin Diameter: 5/16 inch (3/8 inch option)
- Belt Load Capacity (Standard): 340 lbs/ft (Custom designs up to 101,000 lbs)
- Documented Belt Service Life: 670,000 washes
- Belt Speed Range: 27 - 80 ft/min (Max 84 ft/min option)
- Maximum Cars/Hour (Estimate): 218 (Max 230 option)
- Assumed Vehicle Spacing Distance: 22 ft
- Motor Horsepower (Standard): 20 HP
- Motor Type: TEFC Inverter Duty
- SS Wear Plate Thickness: 3/16 inch
- Fiberglass Grating Thickness: 1-1/2 inch
- Fiberglass Grating Rated Load: 1300 lbs molded (1495 lbs pultruded option)

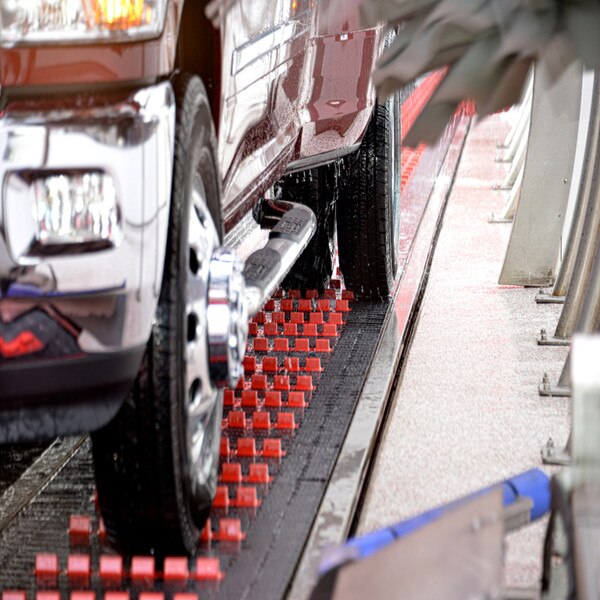

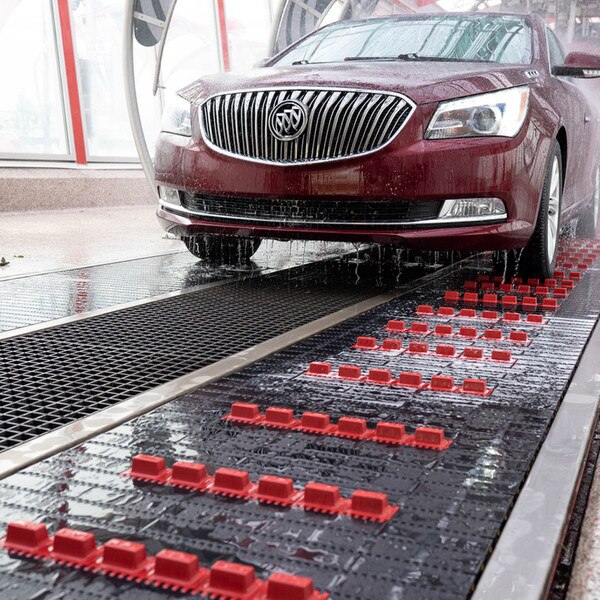

- 30" Dual Belt Design: Provides a wide, forgiving belt for both the driver and passenger side wheels, accommodating a wider range of vehicles including low-profile cars and most dually trucks
- Compatibility: Ideal for new installations or for retrofitting and replacing existing chain-and-roller conveyor systems.
- Easy, Low-Stress Loading: Eliminates the difficulty and anxiety associated with traditional guide rails and correlators. Customers simply drive onto the belt and shift to neutral, minimizing vehicle damage and reducing the need for constant staff assistance.
- Increased Throughput: The easy-loading, continuous-movement design allows you to process significantly more vehicles per hour, maximizing your revenue and minimizing customer wait times.
- Primered Steel Frame Construction: Offers a cost-effective and strong foundation for your conveyor system. Primered steel is known for its excellent weldability and structural integrity.
- Smooth & Gentle Ride: The belt system pulls the vehicle gently through the wash, providing a "magic carpet ride" that is safer for wheels and tires.
- Reduced Maintenance: With fewer moving parts like chains, rollers, and complex correlators, the Tommy Transporter requires significantly less daily maintenance compared to older systems.
- Low Maintenance: Fewer moving parts than traditional chain-and-roller systems.
- Easy Loading: Eliminates guide rails and correlators for a stress-free customer experience.
