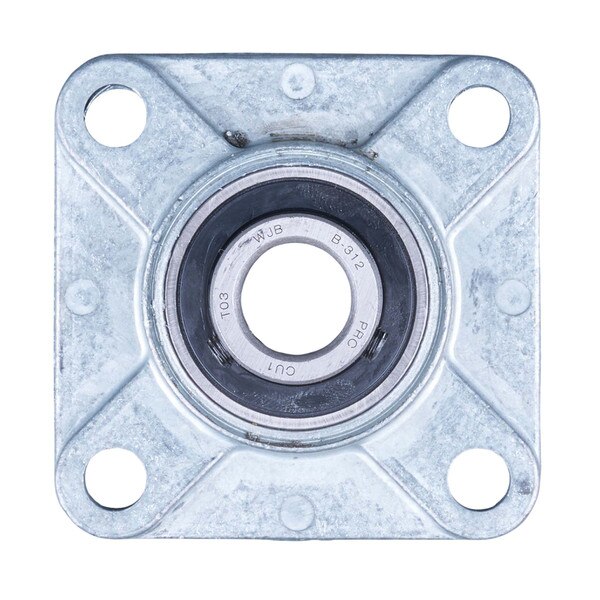

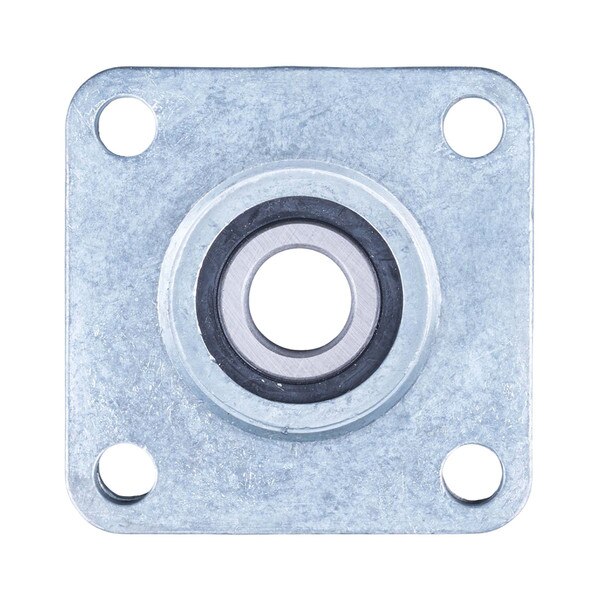

3/4" Bore 4-Bolt Flange Bearing (Die-Cast, Nickel Plated)
SKU: P-M2242
This robust flange bearing is designed for applications in limited mounting areas that require strong load support, making it ideal for the rotating shafts within the Tommy Molded Mat Washer. Its material composition provides excellent corrosion resistance crucial for a wet car wash environment.
Key features and benefits include:
- Corrosion Resistance: Features a solid zinc die-cast housing which is non-corrosive and lightweight. The inner race is nickel plated (implied by series, as a corrosion-resistant alternative to cast iron) and retains the bearing securely.
- Shaft Lock: The wide inner race locks securely to the 3/4 inch shaft using two set screws, providing high resistance to vibration and rotational movement.
- Sealing: Equipped with a Neoprene seal (Buna-N material) that effectively keeps contaminants and wash water out, allowing reliable usage in wet or dry conditions.
- Performance: Ball bearing is made to ABEC-1 tolerances and is pre-lubricated with Chevron SRI #2 grease.
- Load Capacity: Rated with a high Static Load Capacity of 2877 lb and a Dynamic Load Capacity of 1479 lb.
- Temperature: The ambient operating temperature range is -30 degrees Fahrenheit to 200 degrees Fahrenheit.
- Item Number: F4DC-BL-075
- Product Type: Flange Bearing
- Bore Size: 3/4 in
- Bearing Style: 4-Bolt Flange Mount, Rigid Type
- Bearing Type: Ball
- Housing Material: Die-Cast Zinc
- Insert Material: SAE 52100 (Nickel Plated)
- Shaft Locking Method: 2 Set Screws
- Seal Material: Buna-N
- Static Load Capacity: 2877 lb
- Dynamic Load Capacity: 1479 lb
- Ambient Operating Temperature: -30 F to 200 F
- Approximate Weight: 0.90 lb
- Application: Tommy Molded Mat Washer
- 3/4" Bore: Fits standard 3/4-inch shafts.
- Die-Cast Zinc Housing: Lightweight and highly corrosion resistant.
- 2 Set Screws: Ensures secure locking on the shaft.
- Buna-N Seal: Protects bearing from water and contaminants.
