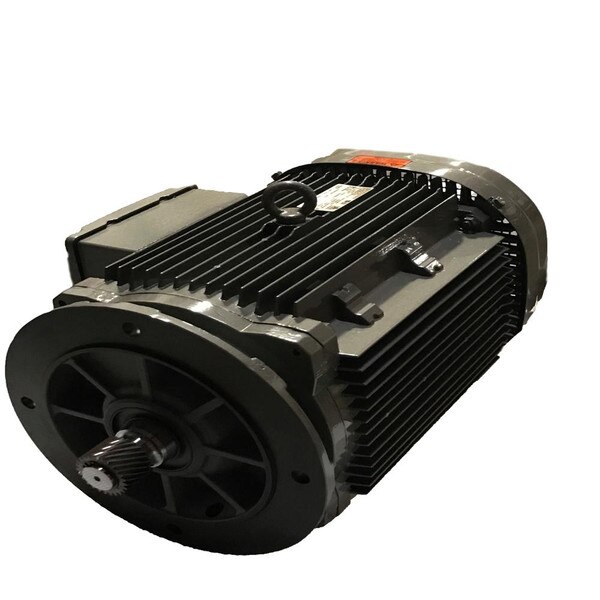

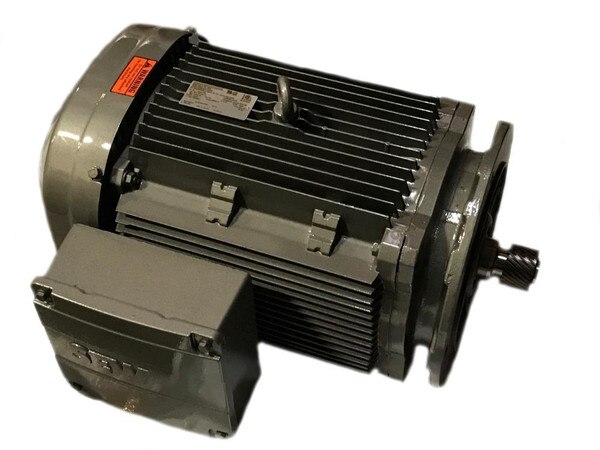

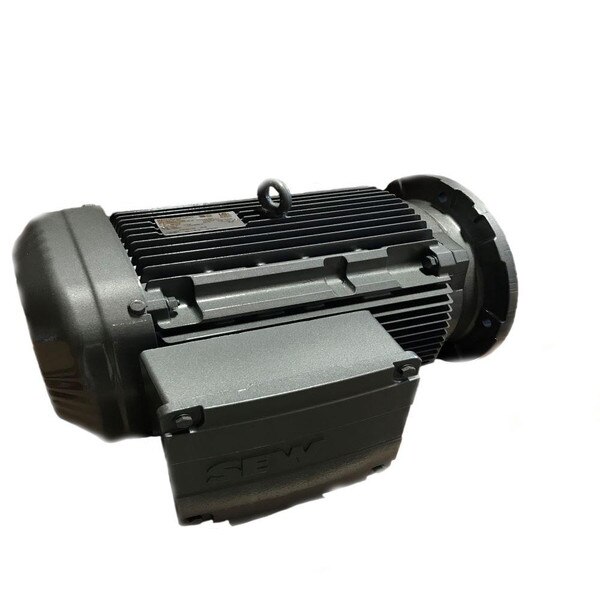

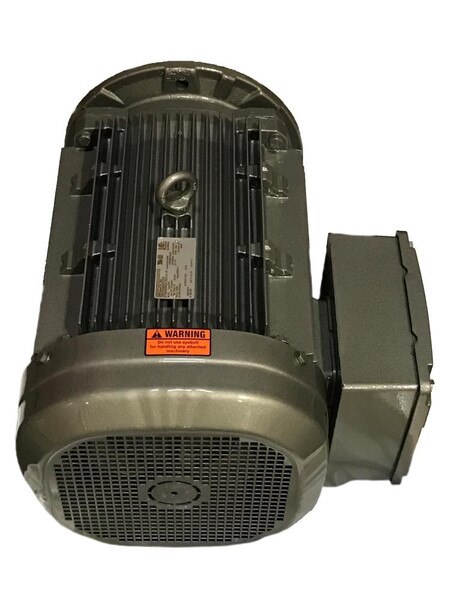

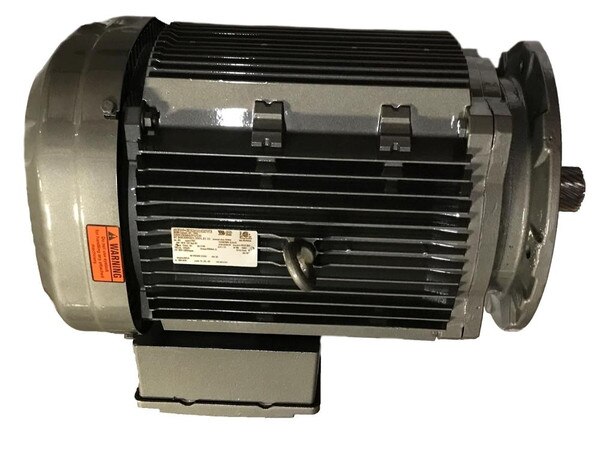

Motor for Dual Belt Conveyor Drive Unit

(0)No Reviews yet
$4,123.00 to $5,722.78

Motor used in the dual belt conveyor drive unit in the wash tunnel. This motor is paired with a gearbox to create the drive unit, powering the dual belt conveyor system to push vehicles along the belt. The motors come in 15HP, 20HP, or 25HP options and have a voltage rating of 230/460 VAC. Each motor is CSA certified and corrosion resistant to the harsh wet wash environment.

  • Horsepower: 15, 20, or 25
  • Frequency: 60 Hz
  • Voltage: 230/460 VAC
  • Amperage: 50/25
  • Phases: 3 Phase
  • Speed Range: 300-1,800 RPM
  • Operating Temp. Range: -4F-104F
  • Color: Gray
  • Nominal Efficiency: 93.0 %
  • IP66 Protection
  • CSA Certified
  • NEMA A Design
  • Corrosion Resistant
