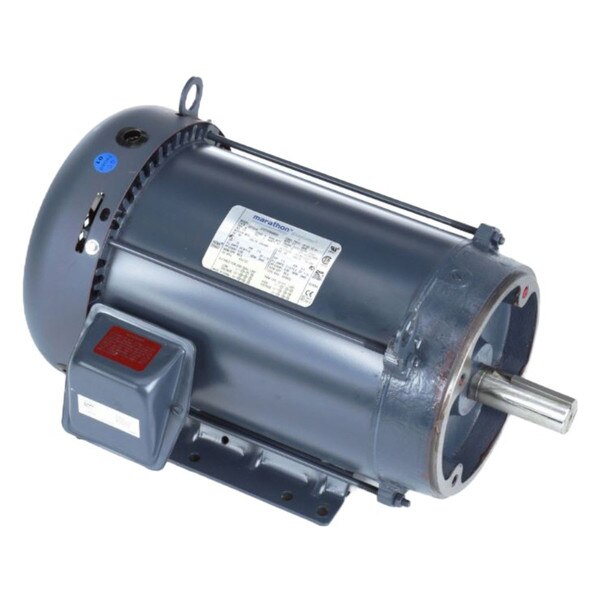

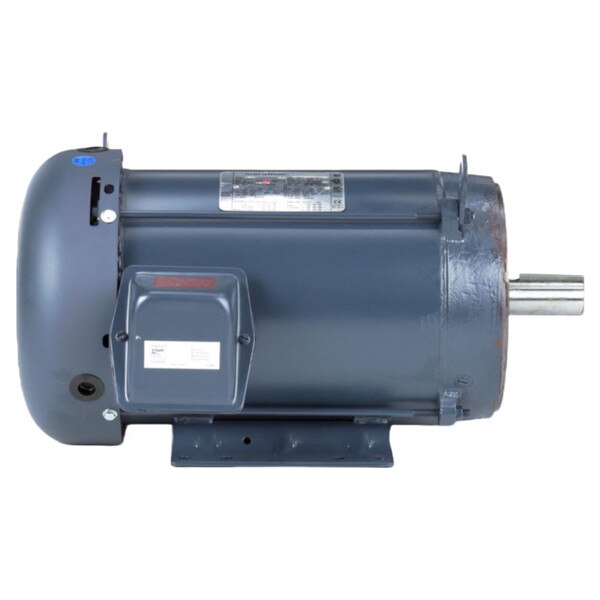

Tommy Electric Blower Motor 15HP
This blower motor is used on the Tommy 2.0, 1.1, and 1.0 blowers in the blower room at the end of the wash tunnel. The blower motor is what powers each blower and one motor is used on each blower housing. The motor is a three-phase motor that delivers 15HP and has a speed of 3,518 RPM and 230/460 VAC voltage rating. It has one speed and operates on two poles using 60 Hz frequency. This motor has horizontal motor orientation and continuous duty. The shaft is 3-3/8" long and 1-3/8" in diameter and the frame is made of rolled steel. This blower motor includes a 3-year warranty.
- Motor Design: 3-Phase
- HP: 15 HP
- Speed: 3,518 RPM
- Power: 7.5 KW
- Frame: 215TC
- Voltage: 230/460 VAC
- Frequency: 60 Hz
- Full Load Amps: 23.6/11.8 A
- # of Speeds: 1
- # of Poles: 2
- Motor Service Factor: 1.15
- Frame Material: Rolled Steel
- Max. Ambient Temp: 104F
- Motor Shaft Rotation: CW/CCW
- Shaft Diameter: 1-3/8"
- Shaft Length: 3-3/8"
- Length Less Shaft: 17-5/16"
- Overall Length: 20-11/16"
- Nominal Efficiency: 92.4%
- Squirrel Cage Inverter Rated
- Horizontal Motor Orientation
- NEMA Premium Efficient
- Continuous Duty
- Keyed Motor Shaft Design
- Totally Enclosed Fan-Cooled Motor Enclosure Design
- CSA and CE Certified
- UL Listed
- Reversible Rotation Design
- Ball Drive End Bearing
3 Year Warranty
