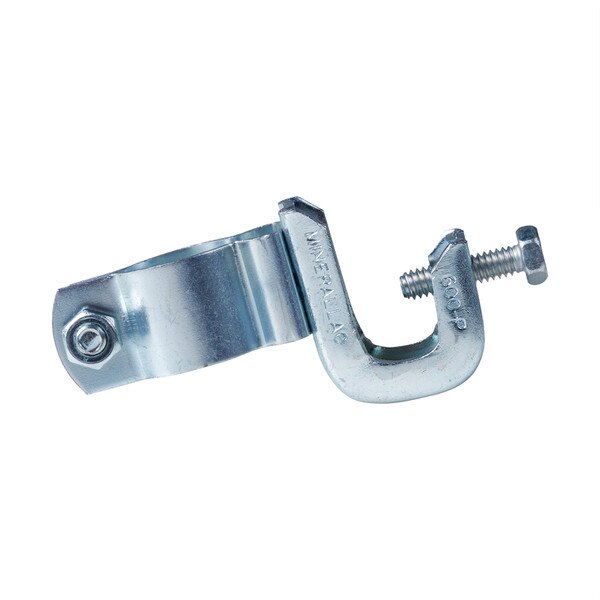

Zinc-Plated Steel Beam Clamp for 15/16"-1" OD Pipe - 50lb Capacity

(0)No Reviews yet
$5.00
SKU: P-AIR-2176

The P-AIR-2176 Beam Clamp for Pipe (MPN: 30015T32) is a versatile and robust mounting solution engineered for secure pipe suspension in various industrial applications, including the demanding environment of car wash facilities. Specifically, this clamp is utilized in the air compressor auto drain plumbing application located in the backroom of a wash tunnel, ensuring reliable support for critical infrastructure.


Designed for clamp-on mounting, installation is straightforward by simply tightening the integrated clamping screw. This beam clamp is highly adaptable, accommodating pipes with an outside diameter (OD) ranging from 15/16 inch to 1 inch. It can be securely mounted onto flat or tapered beams with a thickness of up to 1/2 inch, making it suitable for a wide array of structural supports.


Constructed from durable zinc-plated steel, this clamp provides excellent corrosion resistance, essential for longevity in moist or challenging environments. It boasts a substantial 50 lb. capacity, ensuring reliable support for plumbing lines. A key feature is its ability to be suspended at any angle with a 360-degree range of motion, offering maximum flexibility for plumbing layouts. The mounted holes on the clamp are 1/4 inch in diameter, and the overall dimensions are 1-3/4 inches long, 1 inch wide, and 1-1/2 inches high, making it a compact yet highly effective component.

  • Product Type: Beam Clamp for Pipe
  • Pipe OD Range: 15/16" - 1"
  • Application: Air Compressor Auto Drain Plumbing (Wash Tunnel Backroom)
  • Mounting Type: Clamp-On with Clamping Screw
  • Beam Compatibility: Flat or Tapered Beams
  • Max Beam Thickness: ½"
  • Capacity: 50 lbs.
  • Range of Motion: 360 Degrees
  • Mounted Hole Diameter: ¼"
  • Material: Zinc-Plated Steel
  • Dimensions (L x W x H): 1-3/4" X 1" X 1-1/2"
  • Secure Clamp-On Mounting: Easy and reliable installation without drilling into the beam.
  • Versatile Pipe Compatibility: Accommodates pipes with 15/16" to 1" OD.
  • High Load Capacity: Supports up to 50 lbs. for dependable pipe suspension.
  • 360-Degree Adjustability: Allows pipe suspension at any angle for flexible plumbing routing.
  • Corrosion-Resistant Material: Zinc-plated steel ensures durability in humid environments.
  • Broad Beam Compatibility: Designed for both flat and tapered beams up to 1/2" thick.
  • Ideal for Plumbing Applications: Perfect for air compressor auto drain systems in car washes.
