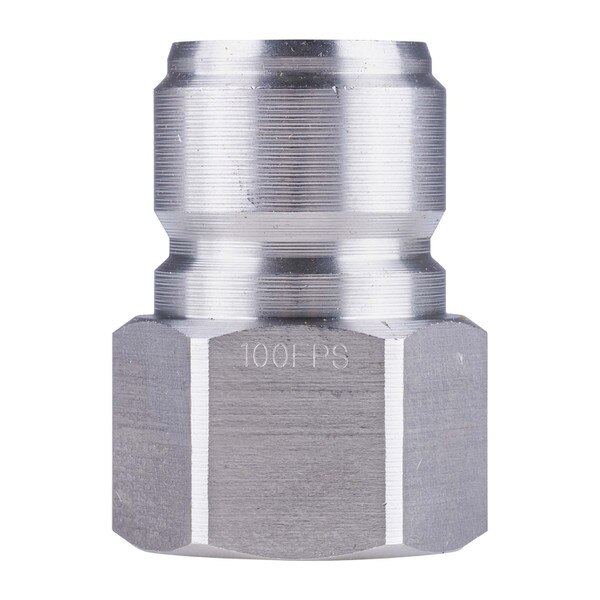

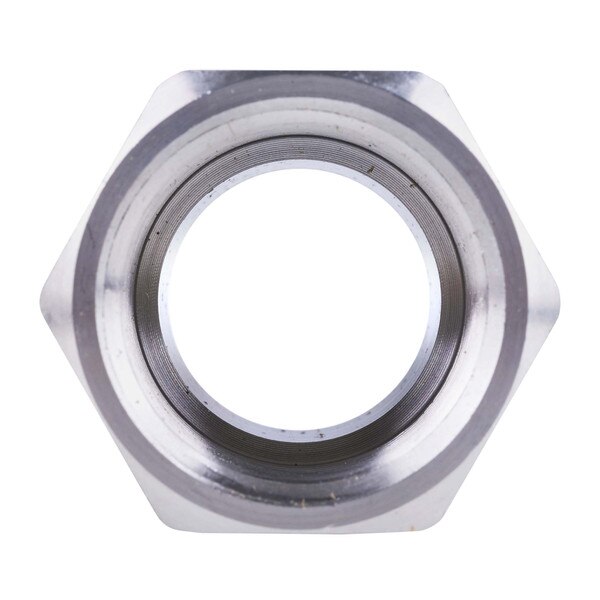

1" Quick Connect Male Connector x 1" FNPT, SS
The Quick Connect Male Connector (MPN: 100FPS) is the male counterpart to the quick-disconnect female coupler, allowing for fast, tool-free connections in fluid transfer systems. This plug is designed to be inserted into a matching female socket, enabling a secure connection with a simple manual action. The straight-thru design means there are no internal valves, providing a smooth and unrestricted flow path with minimal pressure drop when the connection is made.
Constructed from durable 303 stainless steel, this connector offers excellent resistance to corrosion, rust, and wear, making it suitable for a wide range of general-purpose and specialized applications. Its design adheres to the standard industrial interchange, ensuring broad compatibility with similarly sized and designed sockets.
- Product Type: Quick Disconnect Male Connector (Plug)
- Brand: ZSi-Foster
- Series: FST Series
- Manufacturer Part Number (MPN): 100FPS
- Nominal Size: 1"
- Connections: 1" Quick Connect x 1" Female NPT (FNPT)
- Material: 303 Stainless Steel
- Design: Straight-Thru (no internal valve)
- Vacuum Service: Up to 27" Hg maximum
- Ratings: Rated pressures as defined by ANSI/B93.2-1986
- Quick Disconnect: Allows for fast and easy connection to a matching socket without tools.
- Straight-Thru Design: Provides unrestricted flow and minimal pressure drop.
- Durable Construction: Made from corrosion-resistant 303 stainless steel.
- Standard Interchange: Compatible with other standard industrial interchange female couplers.
