Stainless 1" 90 Degree Street Elbow
Features a 1" Male NPT connection on one end and a 1" Female NPT connection on the other, used to change direction in fluid lines within the All-In-One Pump Station and RO System

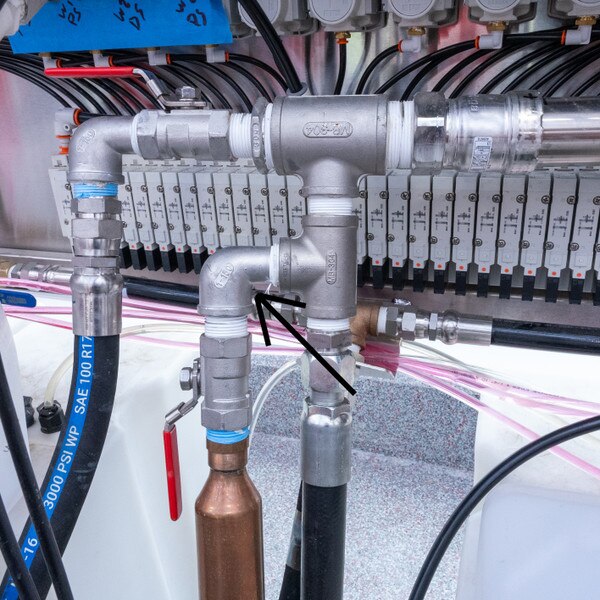

The 1" MNPT x 1" FNPT Street Elbow is an indispensable pipe fitting used in various car wash plumbing applications to create a sharp 90-degree turn while transitioning from a female port to a male port within a line. It is a common component in systems such as the All-In-One Pump Station and the Tommy RO System.
This fitting is known as a "Street Elbow" because it has one male end and one female end, allowing it to connect directly into a larger female fitting without needing an intermediate pipe nipple.
Key Construction and Performance:
Material & Grade: Constructed from 304 Grade Stainless Steel and rated as 150 lb. Class. This material choice provides excellent resistance to rust and corrosion in the harsh, wet, and chemical-laden wash tunnel environment.
Connection Type: Features a 1" Male NPT connection (MNPT) on one end and a matching 1" Female NPT connection (FNPT) on the other.
Angle: Provides a fixed 90-degree change in direction.
- Product Type: Street Elbow / Threaded Elbow
- Application: All-In-One Pump Station, Tommy RO System, and general plumbing
- End 1 Connection: 1" Male NPT (MNPT)
- End 2 Connection: 1" Female NPT (FNPT)
- Angle: 90 Degrees
- Class: 150 lb.
- Material: Stainless Steel
- Grade: 304
- Dimensions: 2−7/8" L x 2−1/8" W x 1−15/16" H
- Brand Reference: BLUEFIN SLES100
- Space-Saving Bend: Street elbow design allows for direct connection into a female port, eliminating the need for an extra nipple.
- Corrosion Resistance: Grade 304 Stainless Steel ensures longevity in chemical and water-heavy applications.
- System Versatility: Essential fitting for turning corners in 1" fluid lines throughout the car wash.
- High-Quality: Cast threaded construction meets 150 lb. class standards for reliable performance.
